Features

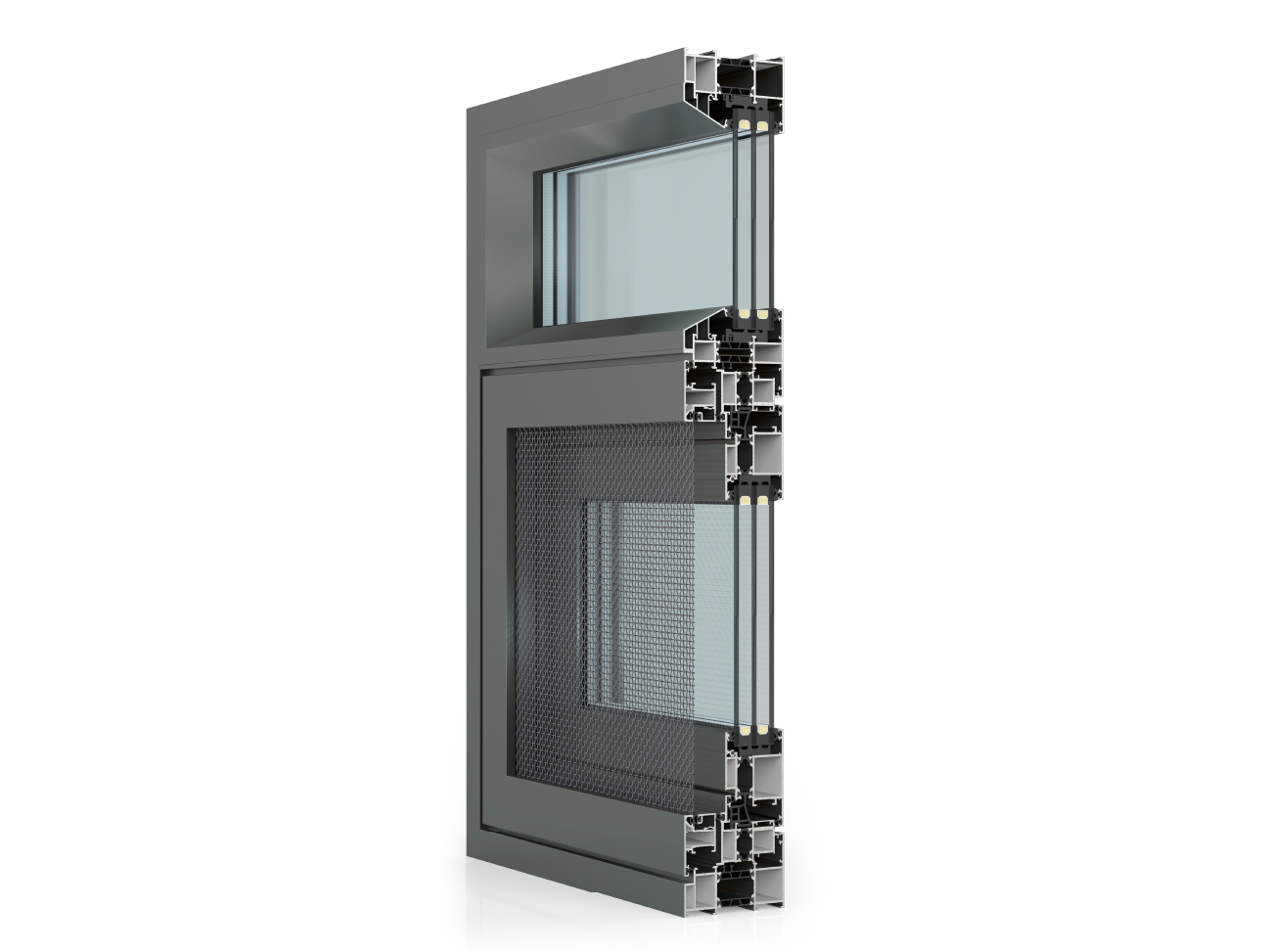

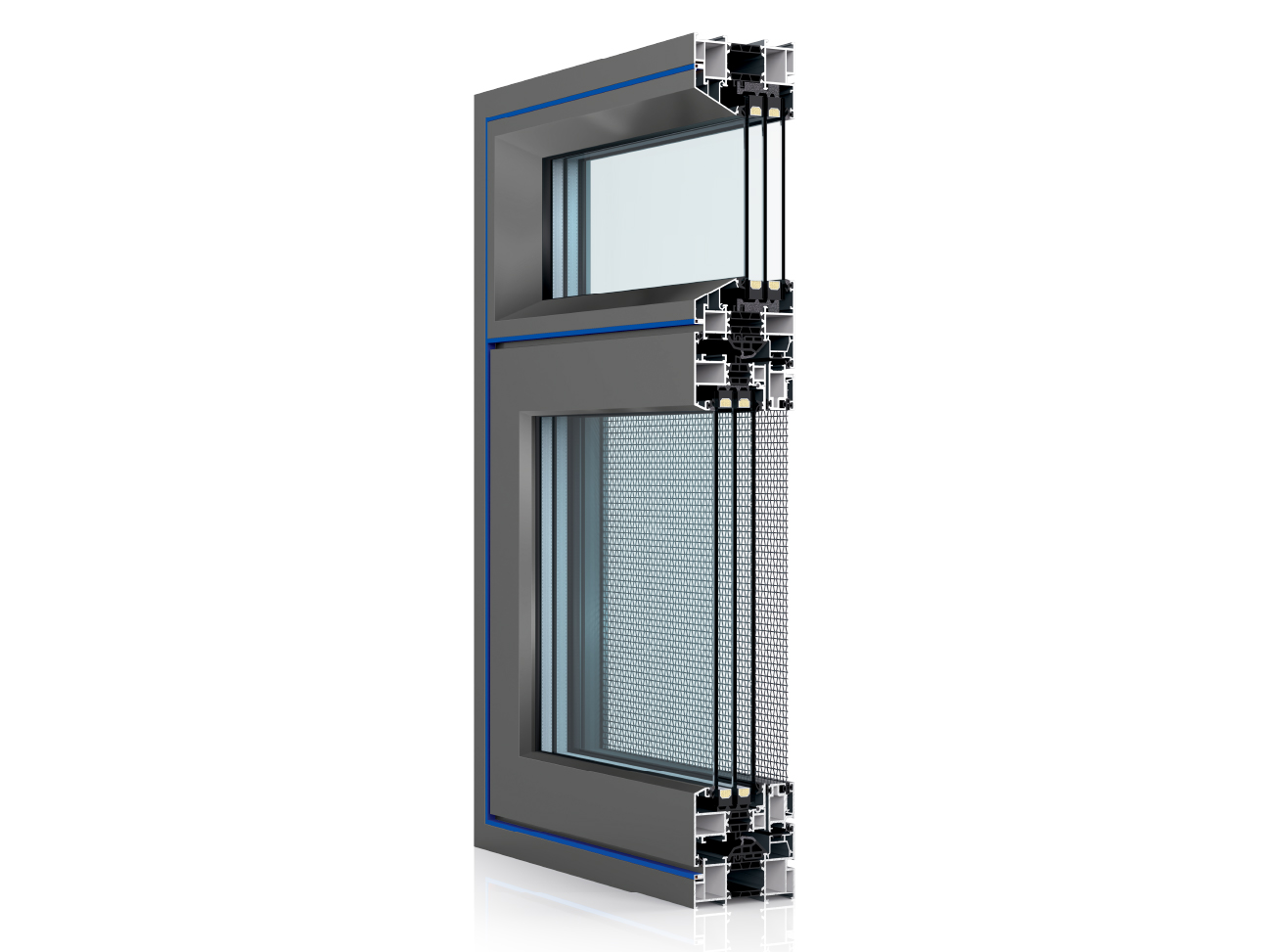

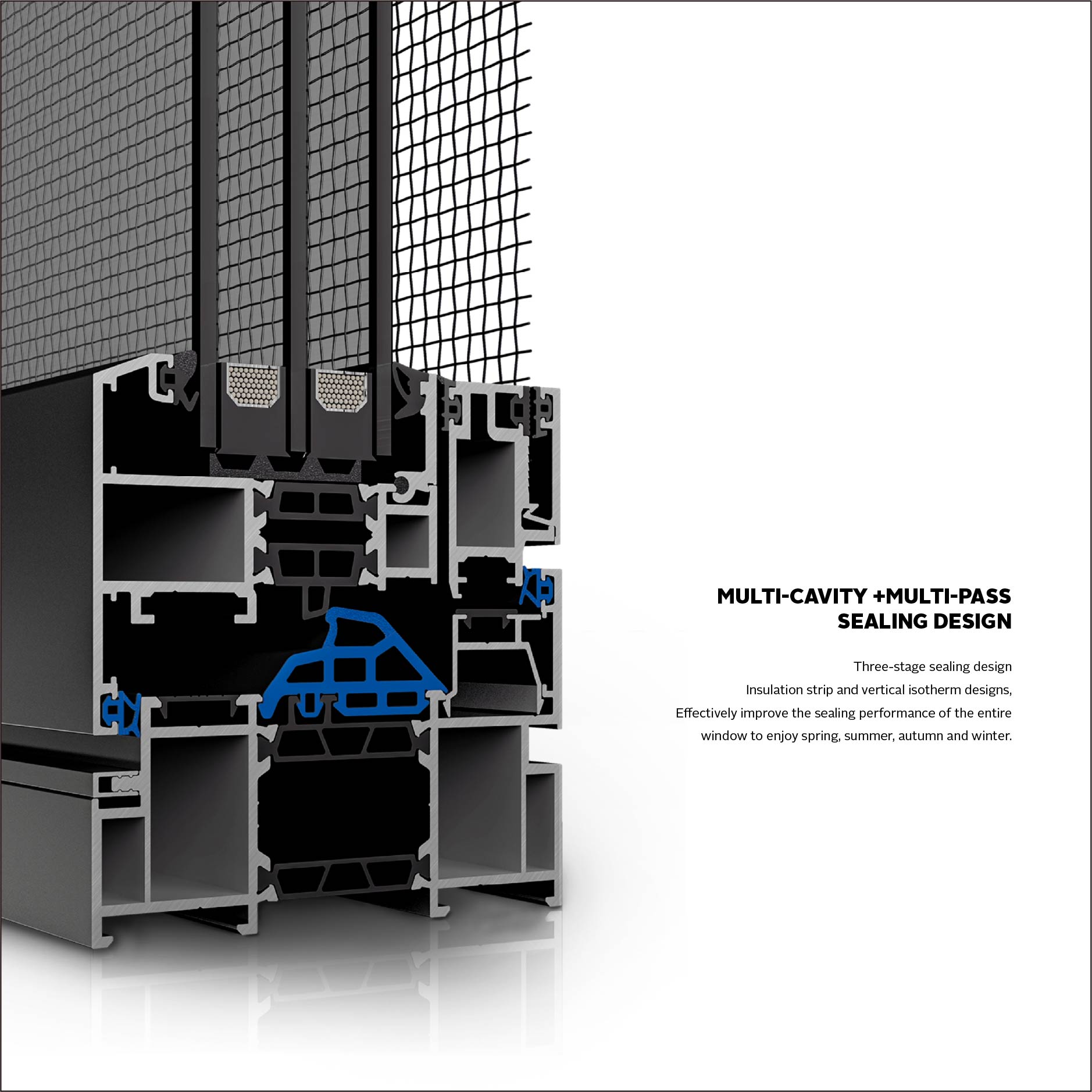

The glass notches of this structure are designed to be glue-free (EPDM is used inside the glass, and EPDM foamed composite soft and hard co-extruded strips are used outside the glass), and the opening position is sealed with three-stage strips to separate the watertight cavity from the airtight cavity.
The outer frame has three drainage modes: hidden drainage, high-performance drainage, and floor drain drainage. It uses water pressure to drain water, has smooth drainage, and beautiful appearance.

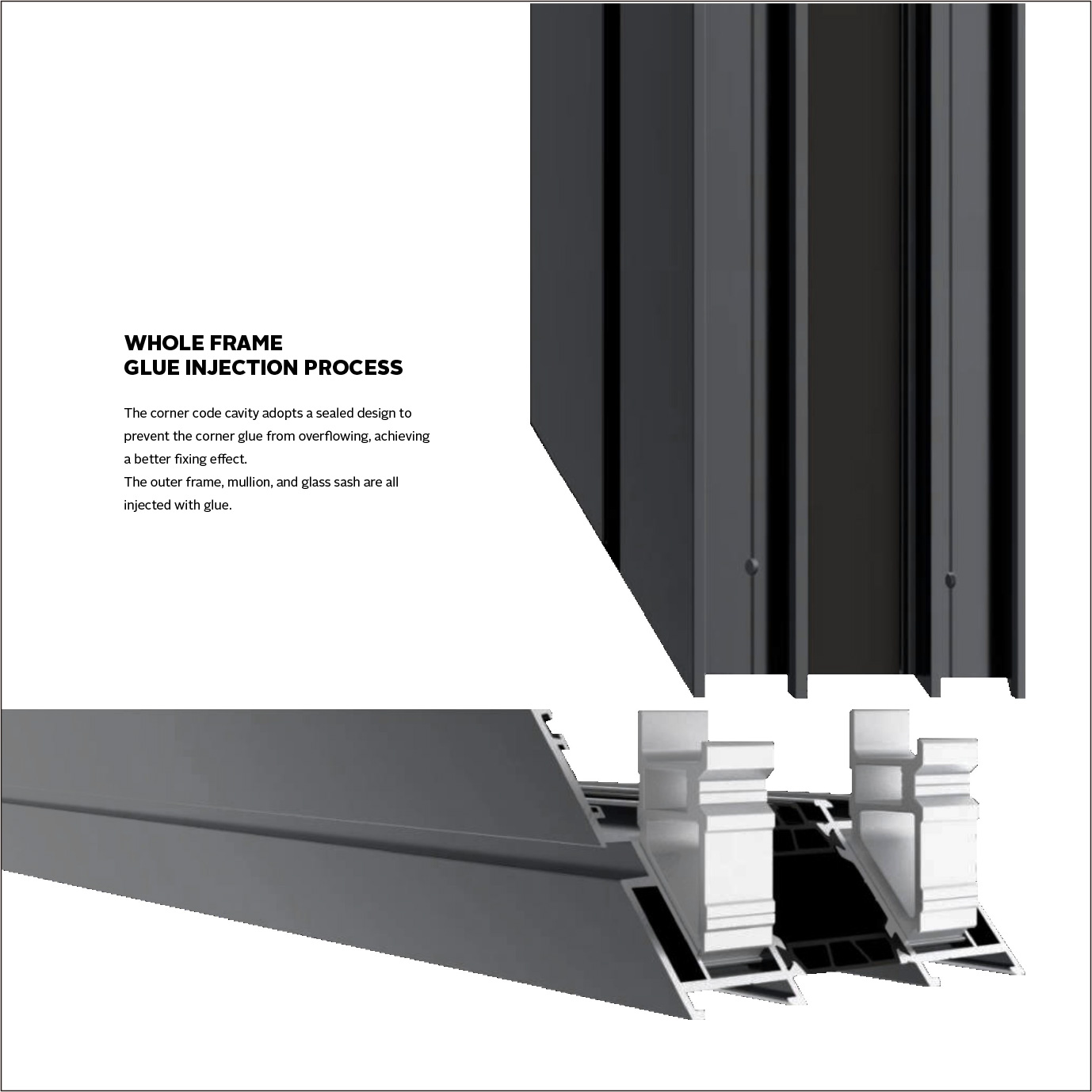

The outer frame, conversion frame, and sash all adopt an integrated glue-injected corner code design.
The angle-forming flat steel sheets used are all 304 stainless steel glue-injected steel sheets.

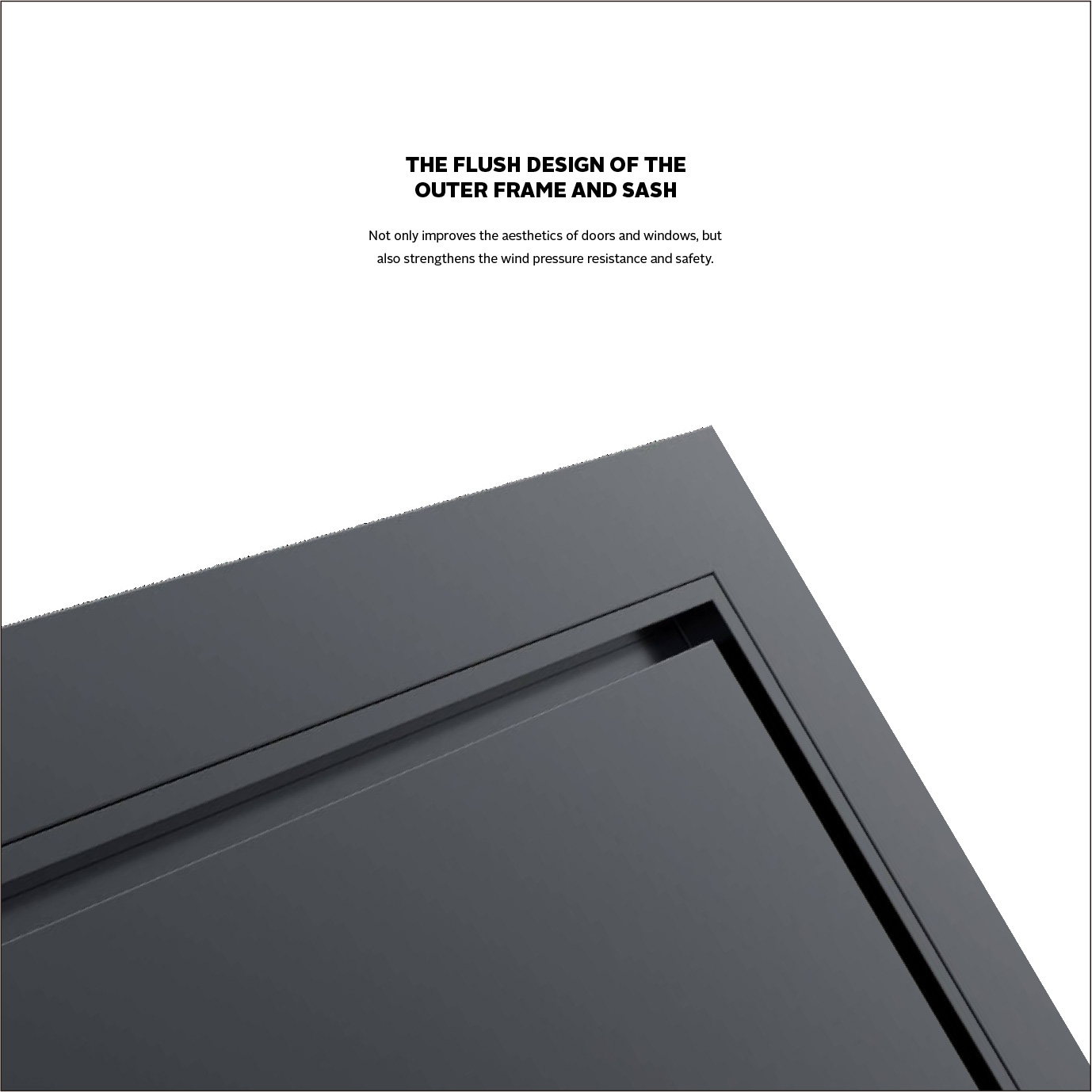

The indoor and outdoor frame sash are flush.
Glass installation direction: The opening position uses a conversion frame, all pressure lines are indoors, and the glass is installed from indoors to ensure the personal safety of construction workers.

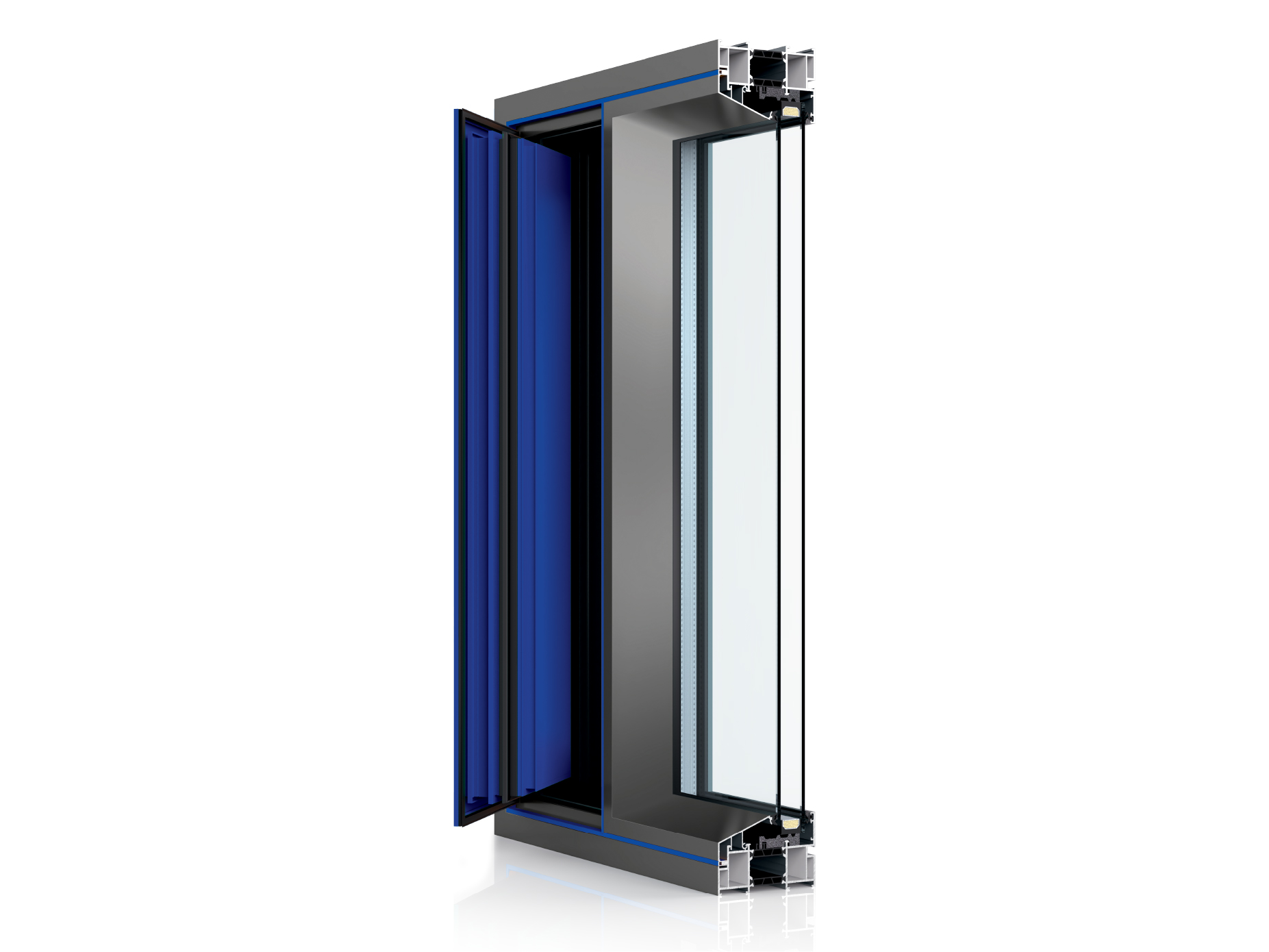

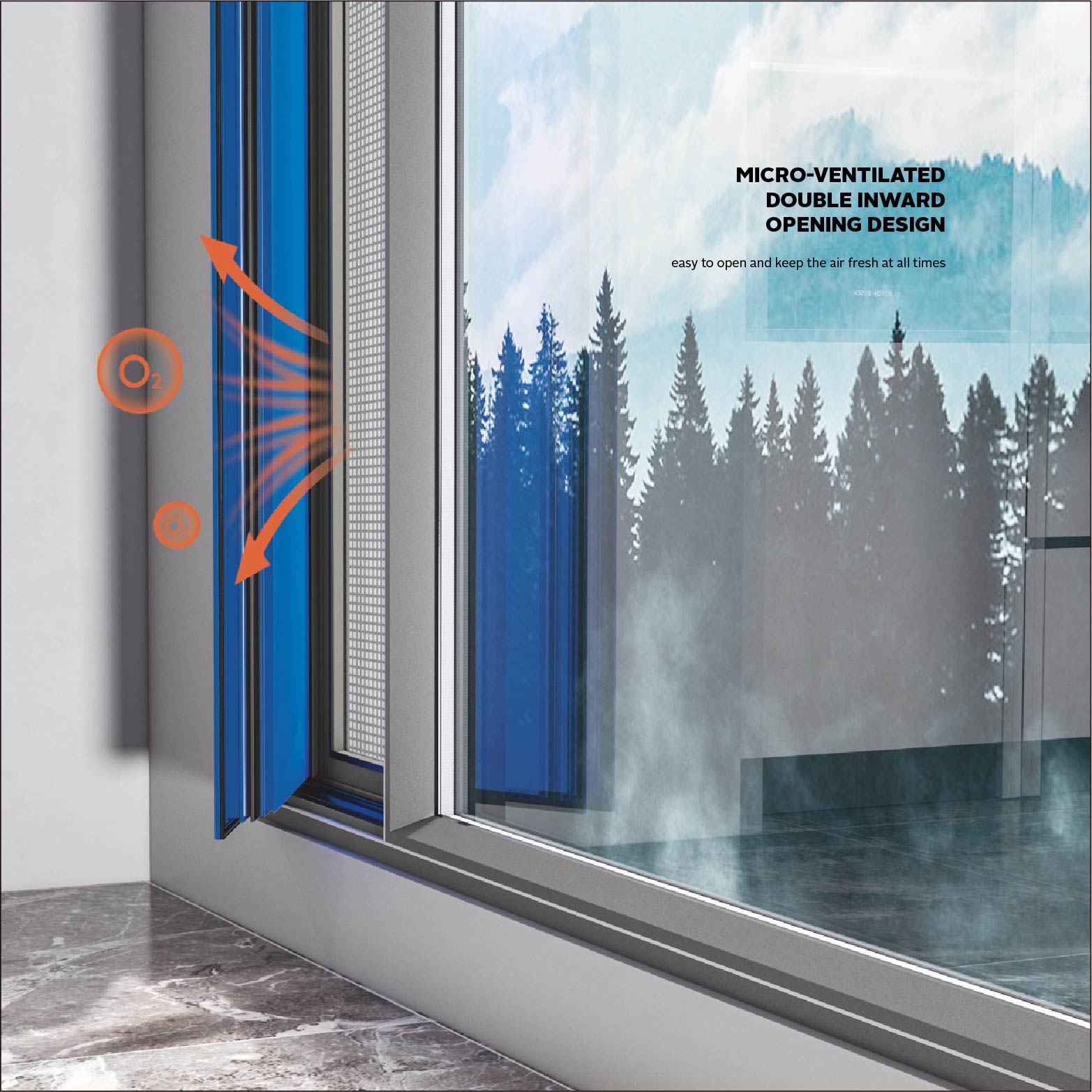

The small window screens of double inward-opening windows and micro-ventilation windows and the PT screens of outward-opening windows are both dual-purpose screens, and both can be installed with stainless steel mesh or high-transparency mesh.
Fixed-position bevel pressure lines, simple and beautiful.

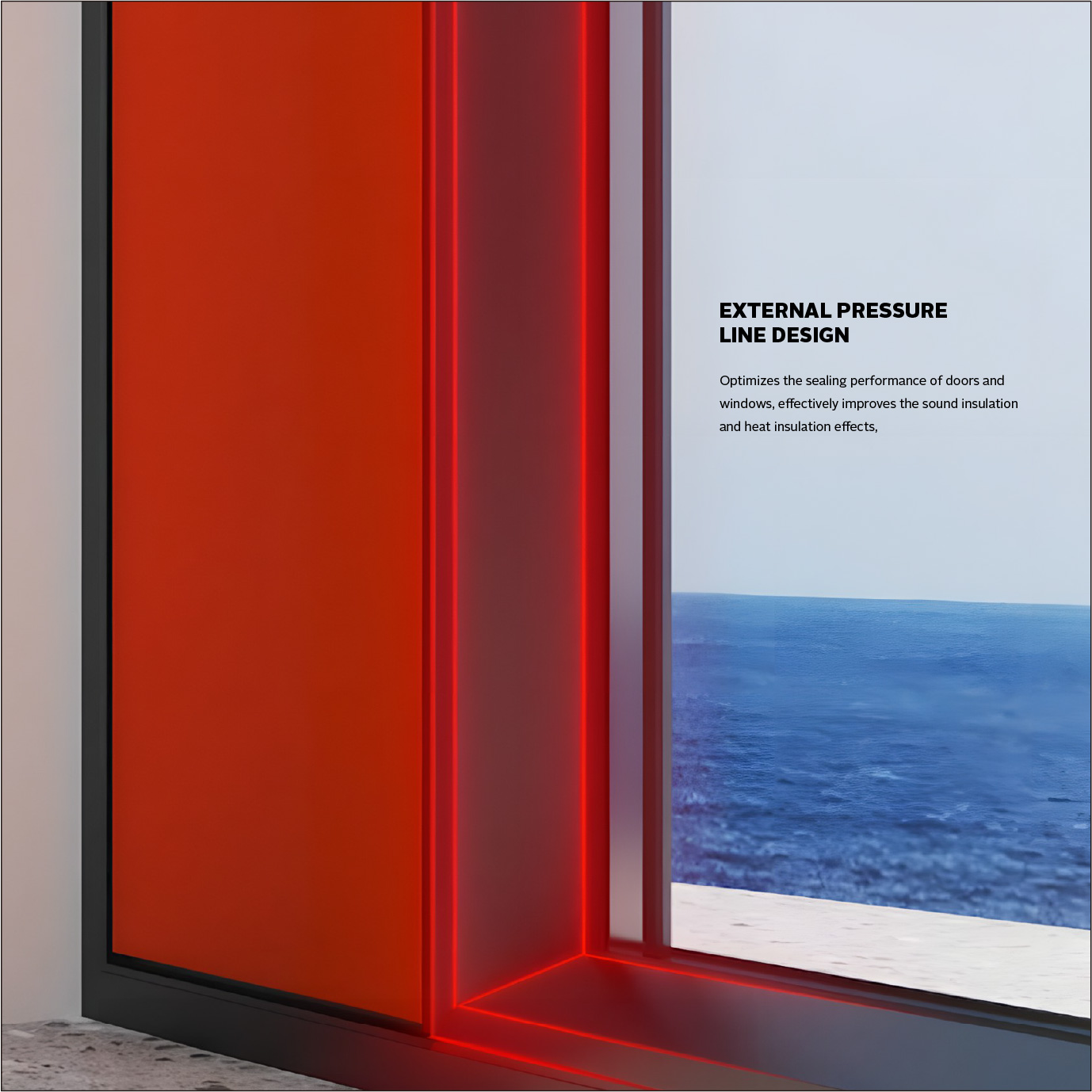

The pressure lines of double inward-opening sashes are external for better the appearance.
The thermal insulation outward casement doors and inward casement doors in this series can be single-opening door, double-opening door, door with threshold, door without threshold, and so on.

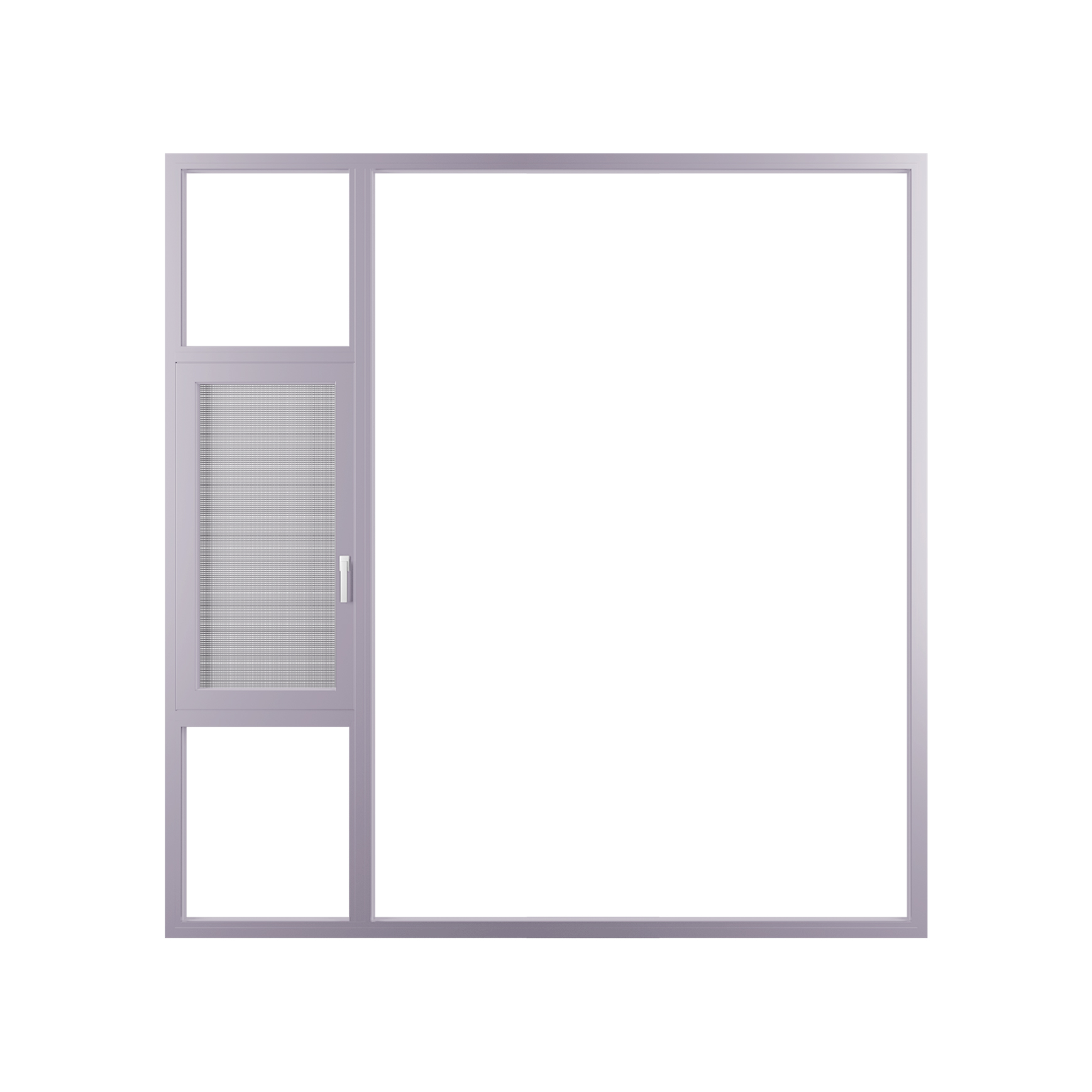

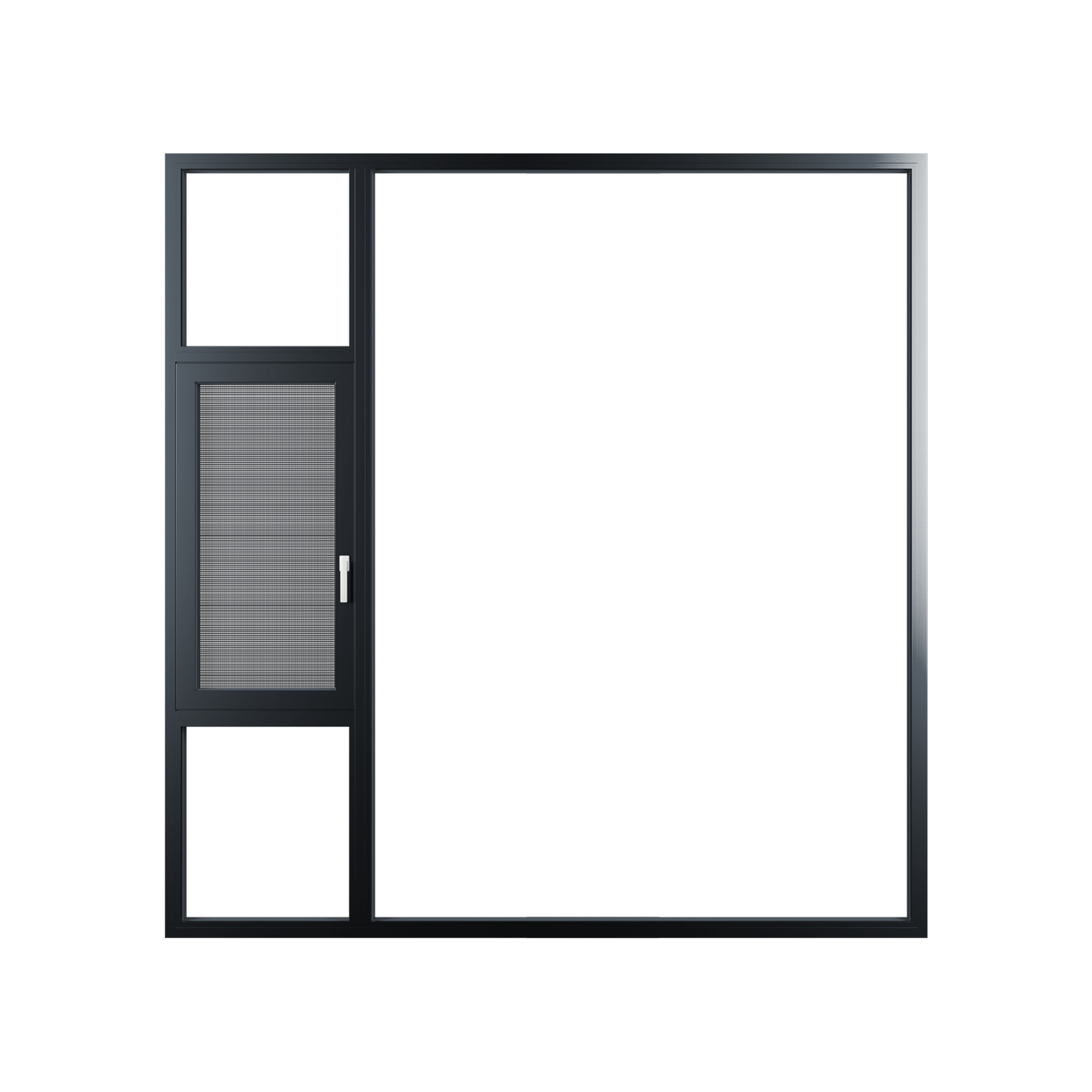

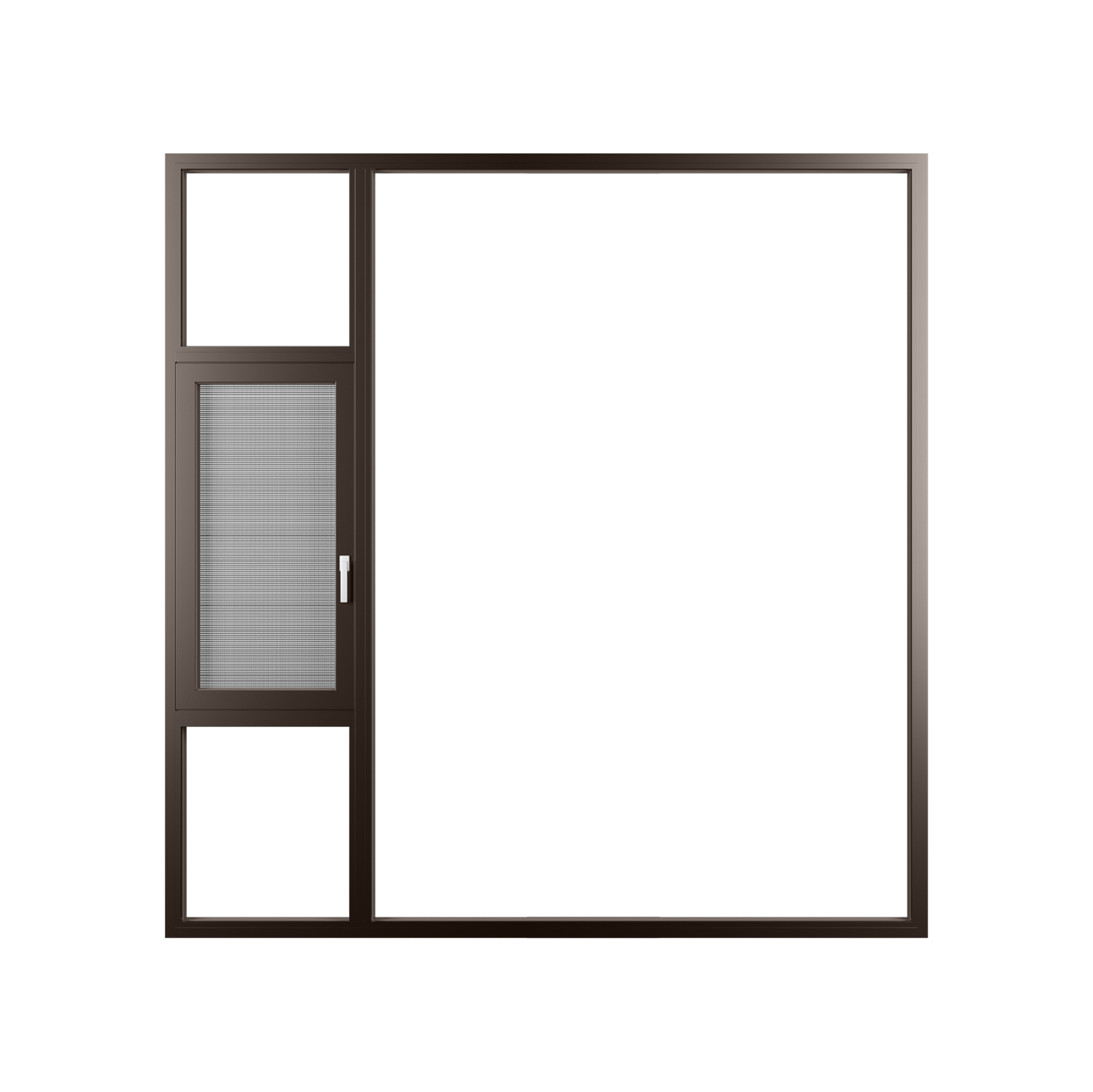

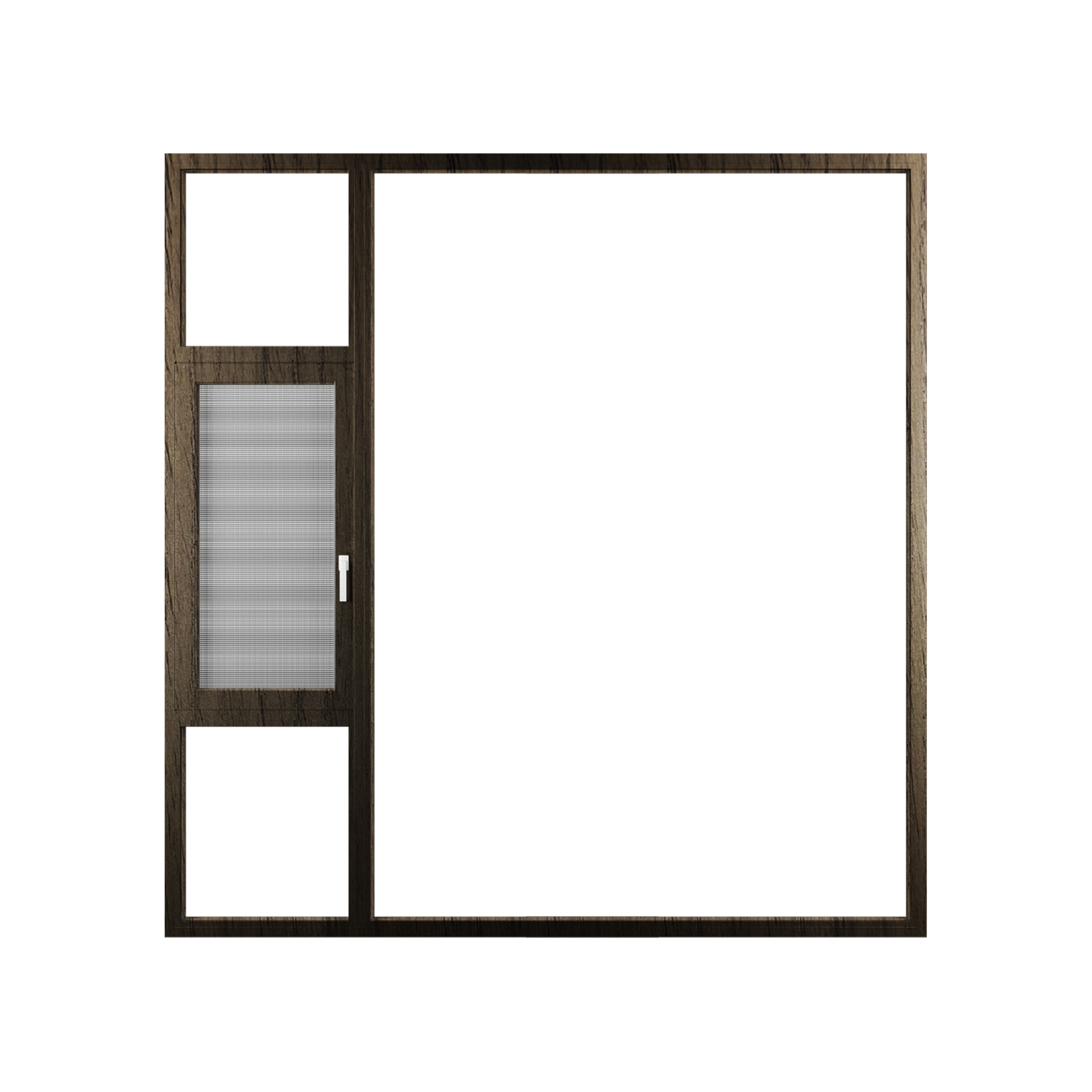

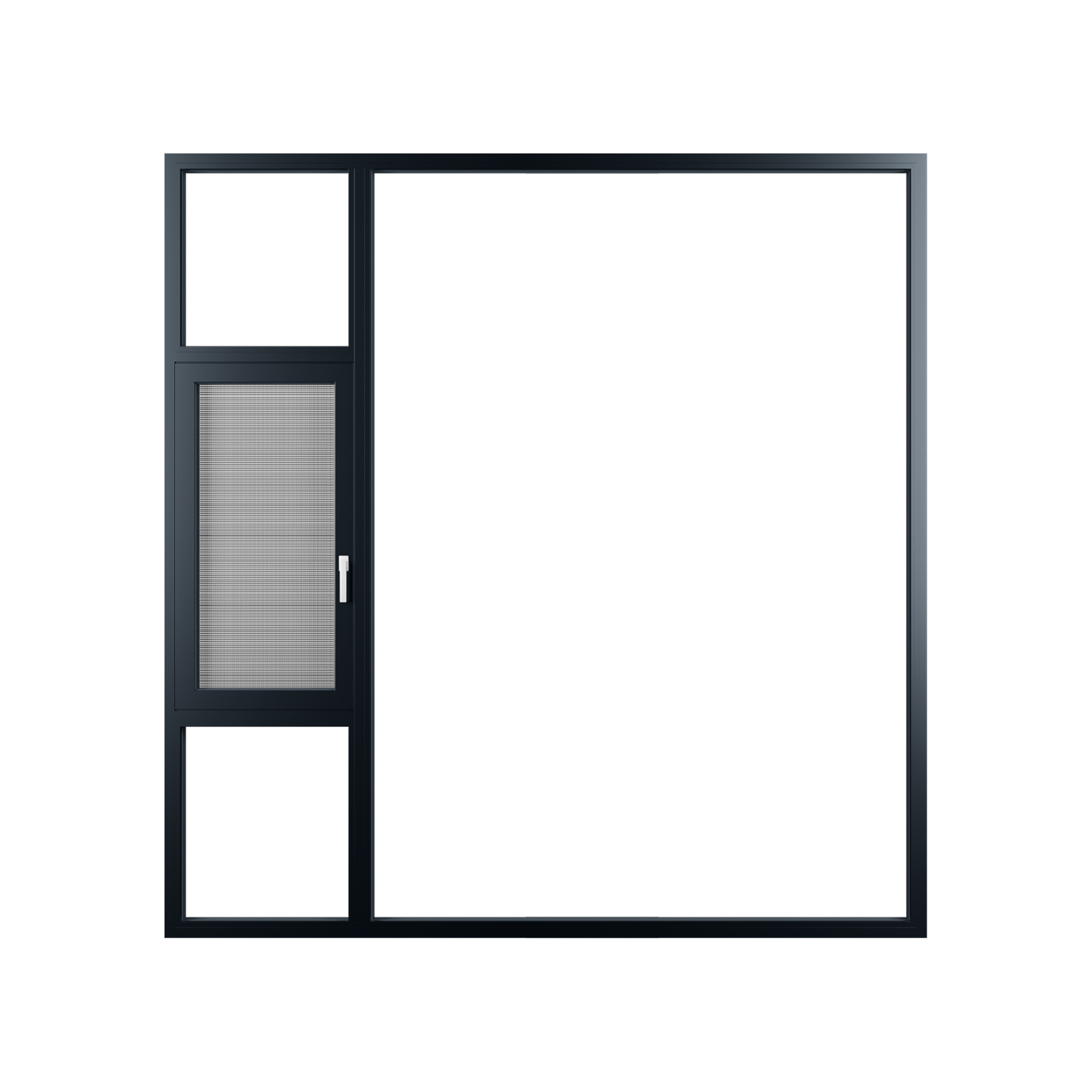

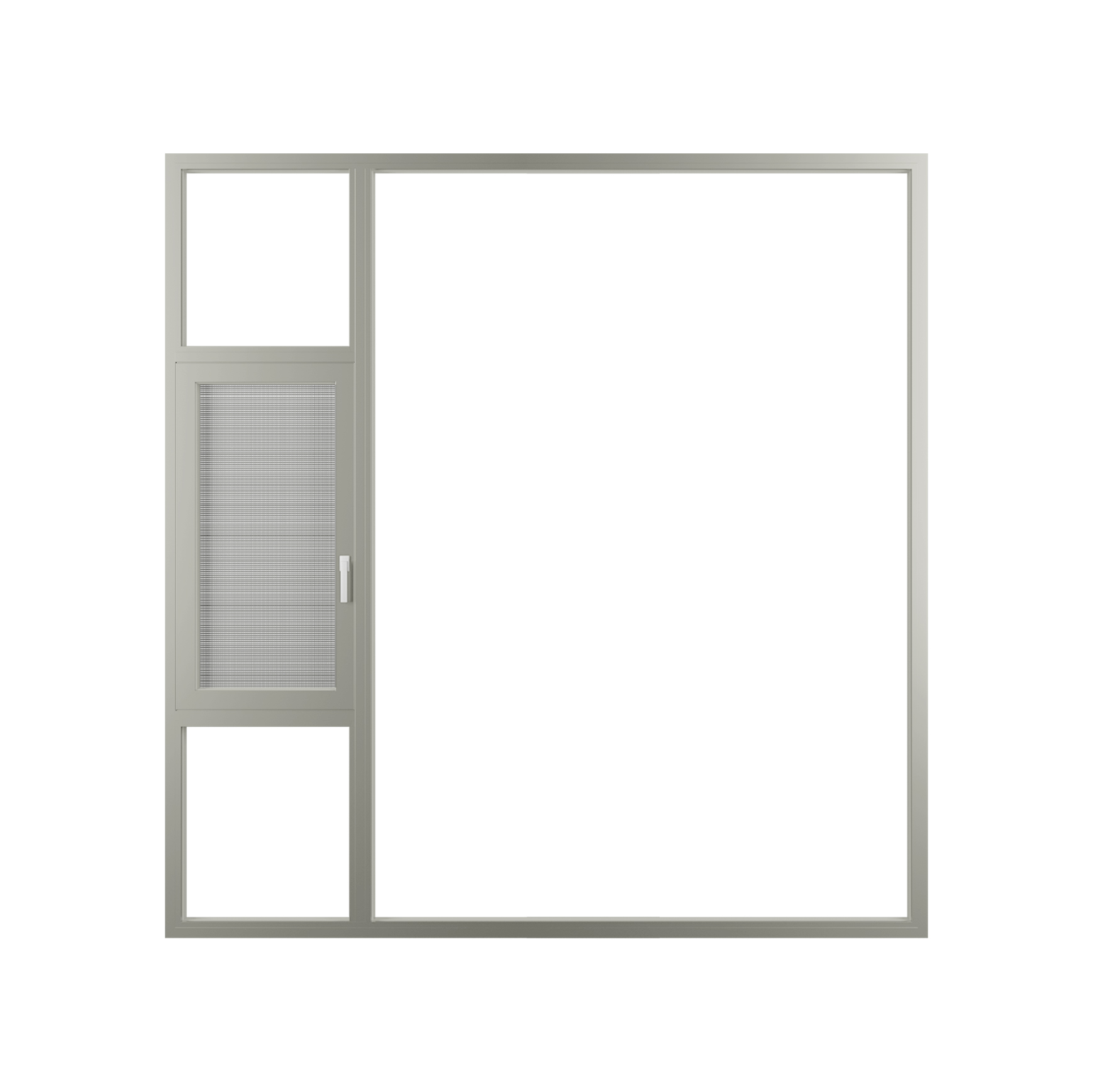

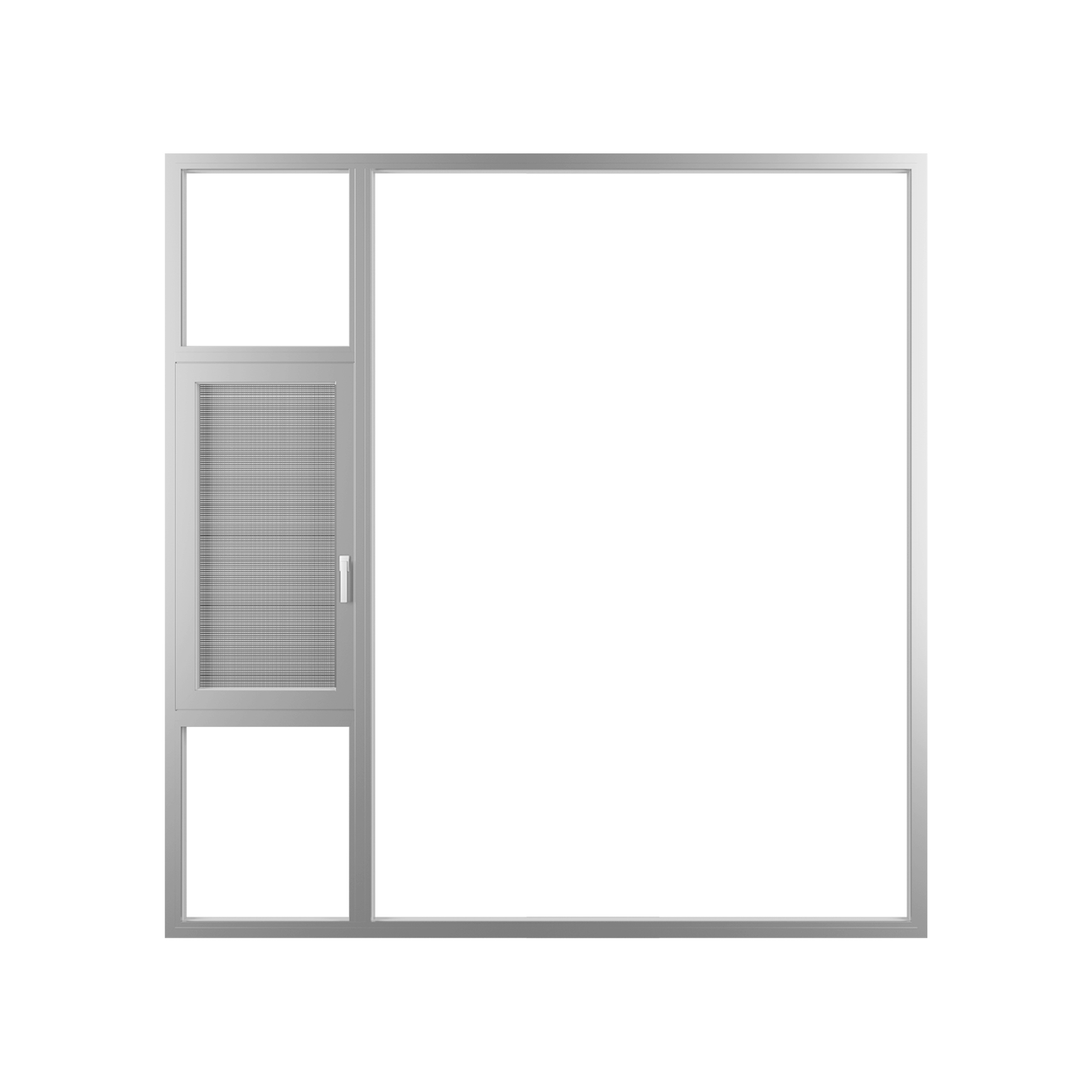

This series can be made into double inward-opening window with screen, outward-opening window with PT screen, micro-ventilation window with screen, outward casement door, inward casement door, and so on.
