HYGP121A Series Casement Window or Door with Screen

Solid material quality assurance

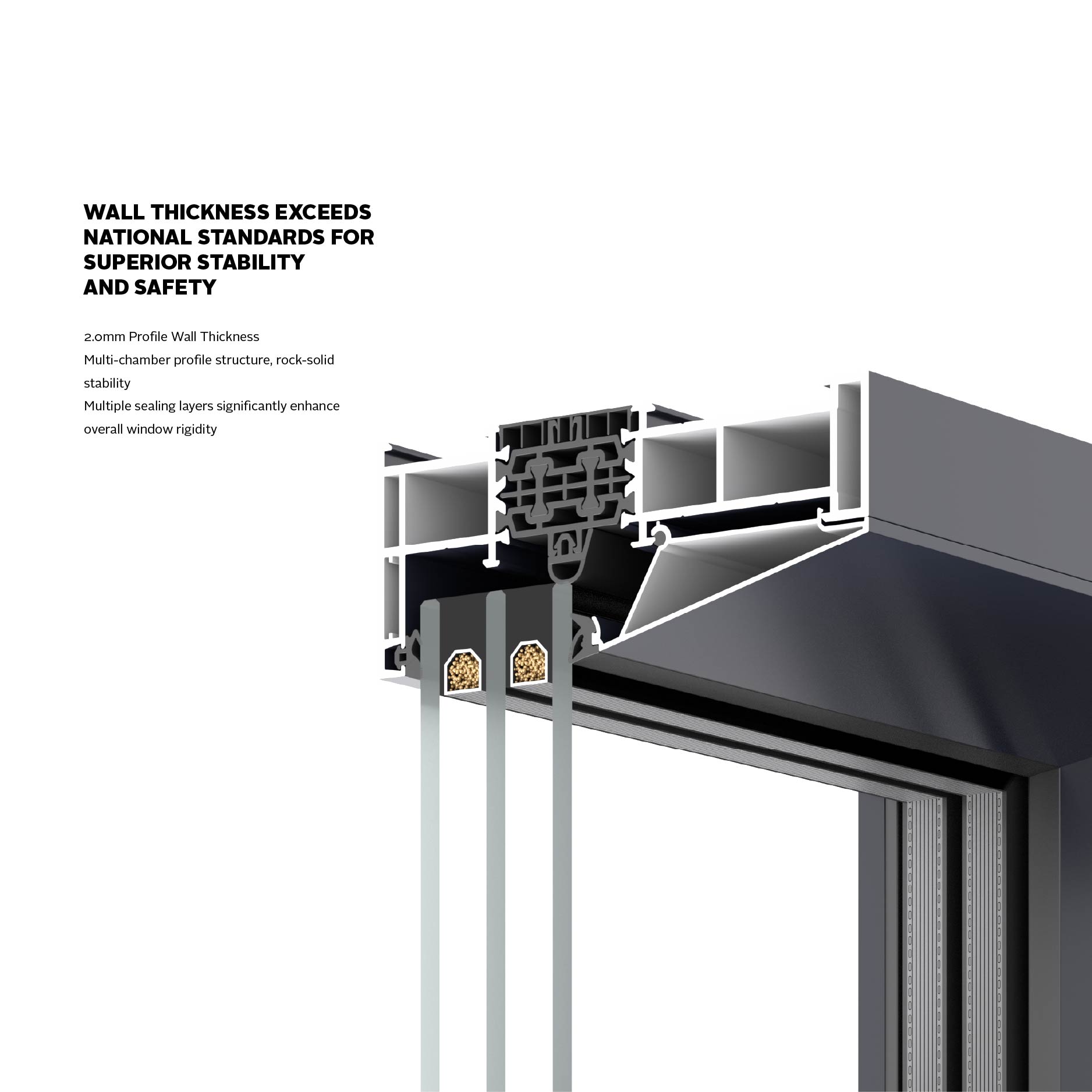

Using 2.0mm thickness of profile
It is not only strong and durable, but also able to resist the influence of various bad weather, providing solid protection for your home.
SHARE AS
REQUEST A QUOTE
Features
Parameters
Finish color
Hardware Options
Glass
Product Catalog

Features

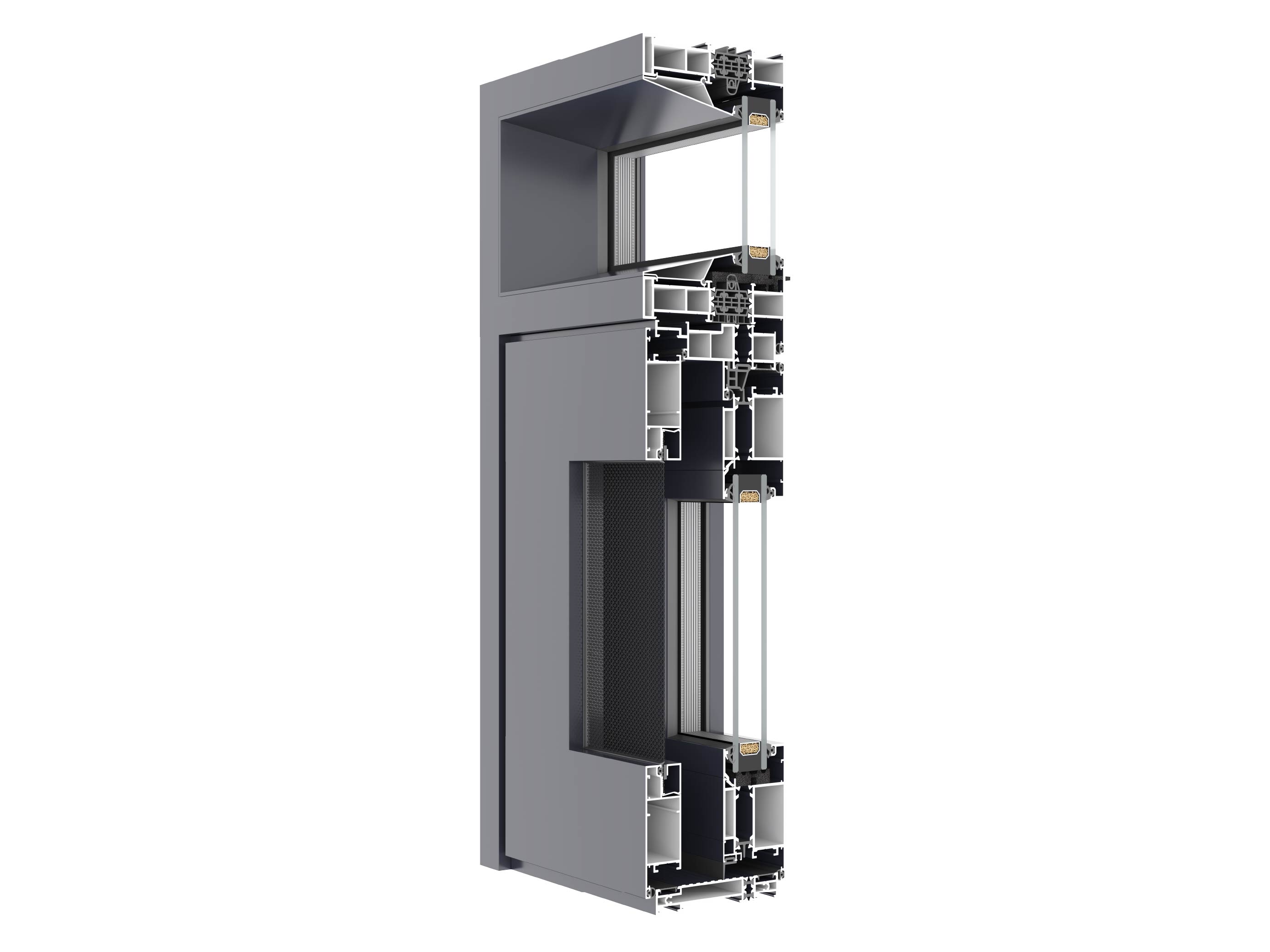

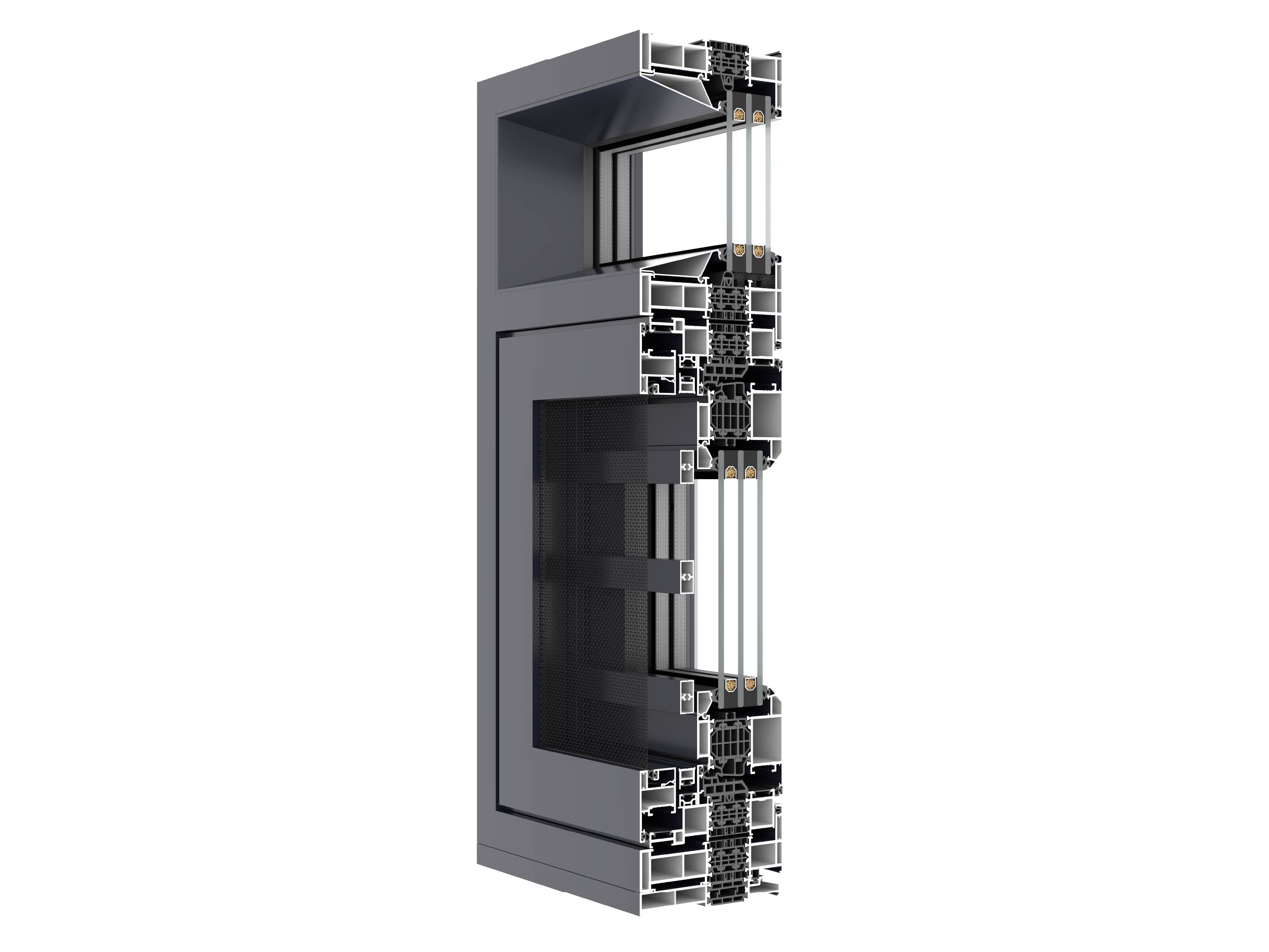

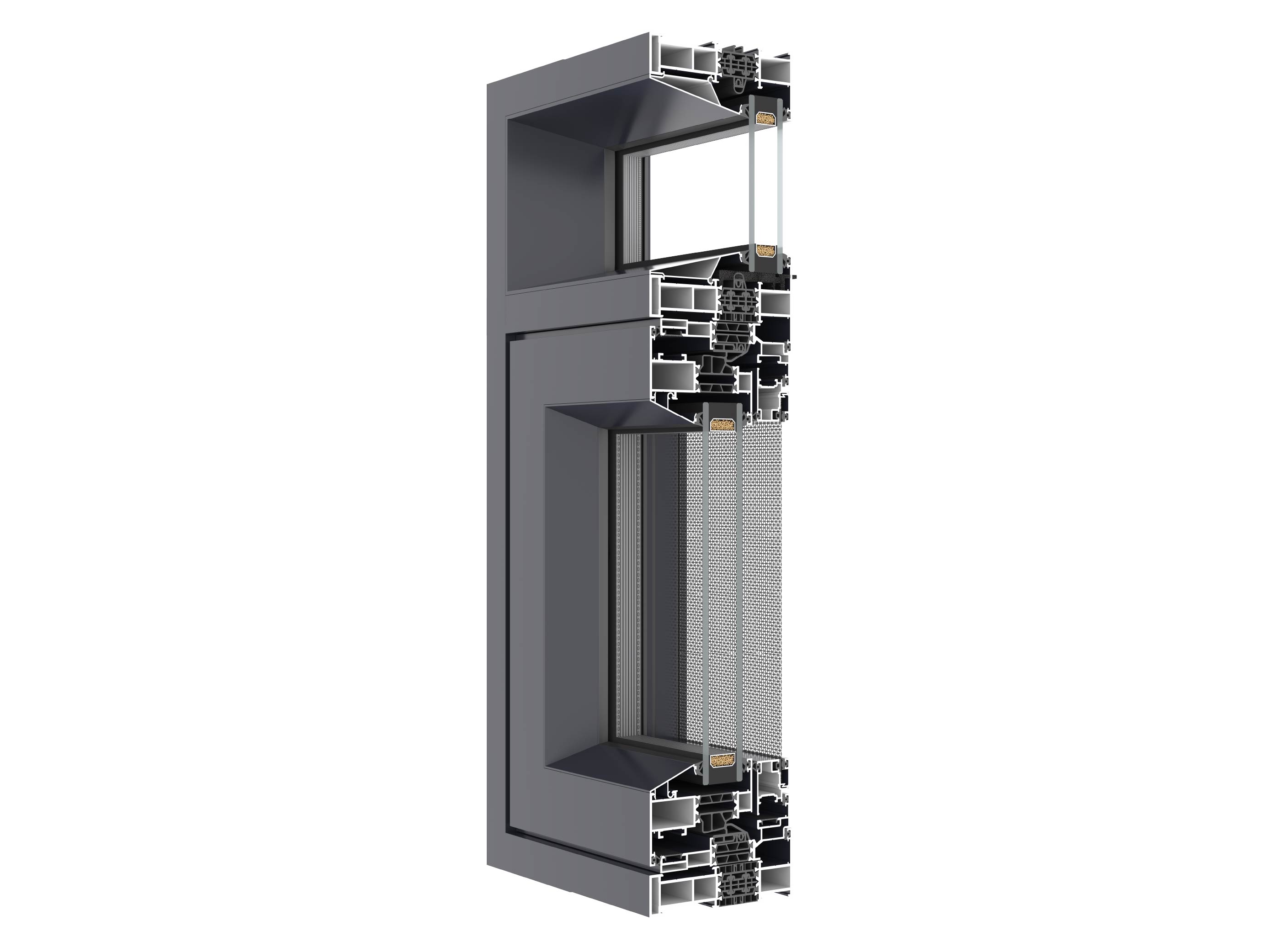

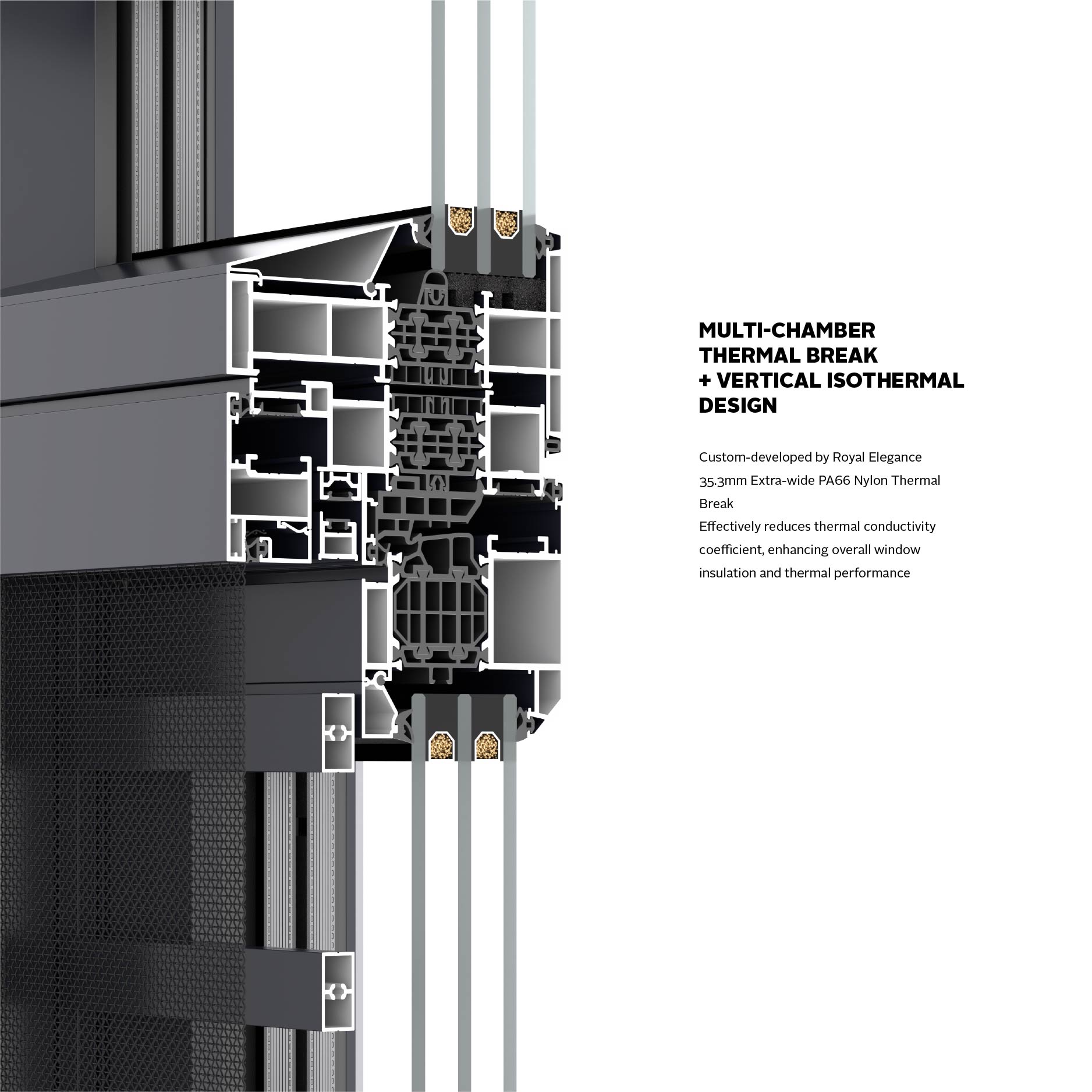

The insulation strips of this system are completely aligned, so that the overall isotherms are in the same plane, which can improve the thermal insulation performance of casement windows.

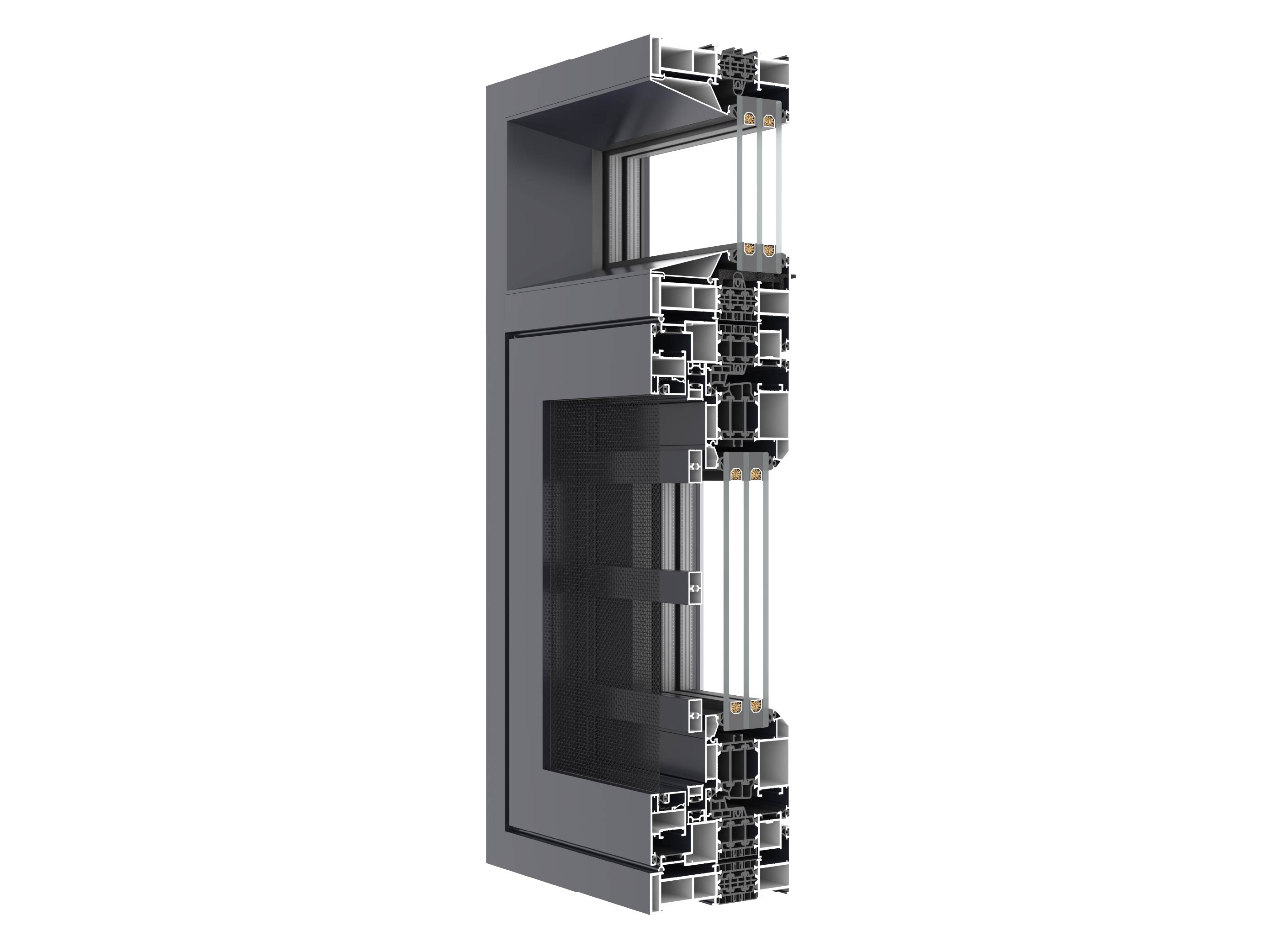

 This series of doors and windows can be made into outward casement window with screen, double inward opening window with screen etc.

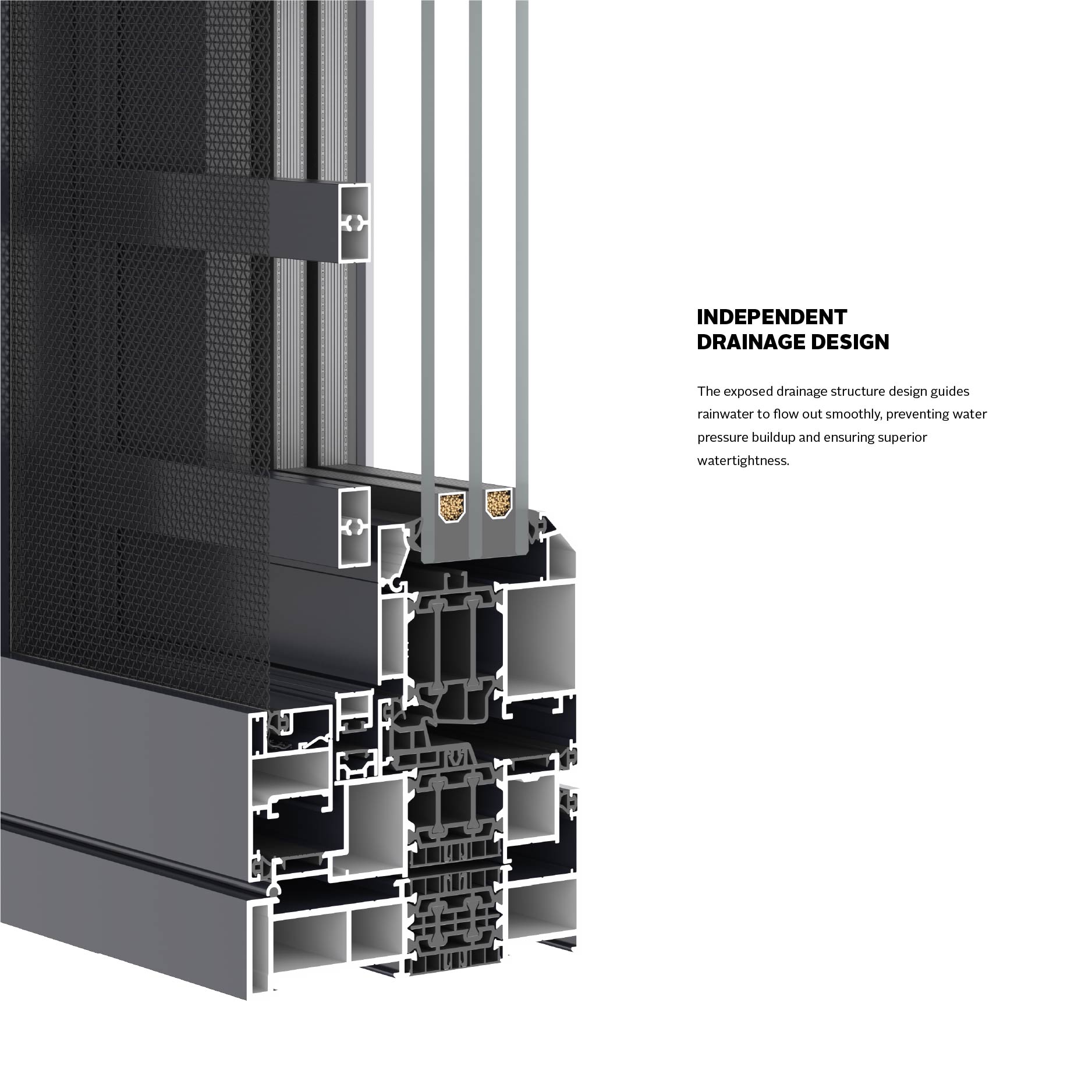

The outer frame adopts hidden drainage design.
The opening position is sealed with three-stage strips to separate the watertight cavity from the airtight cavity.

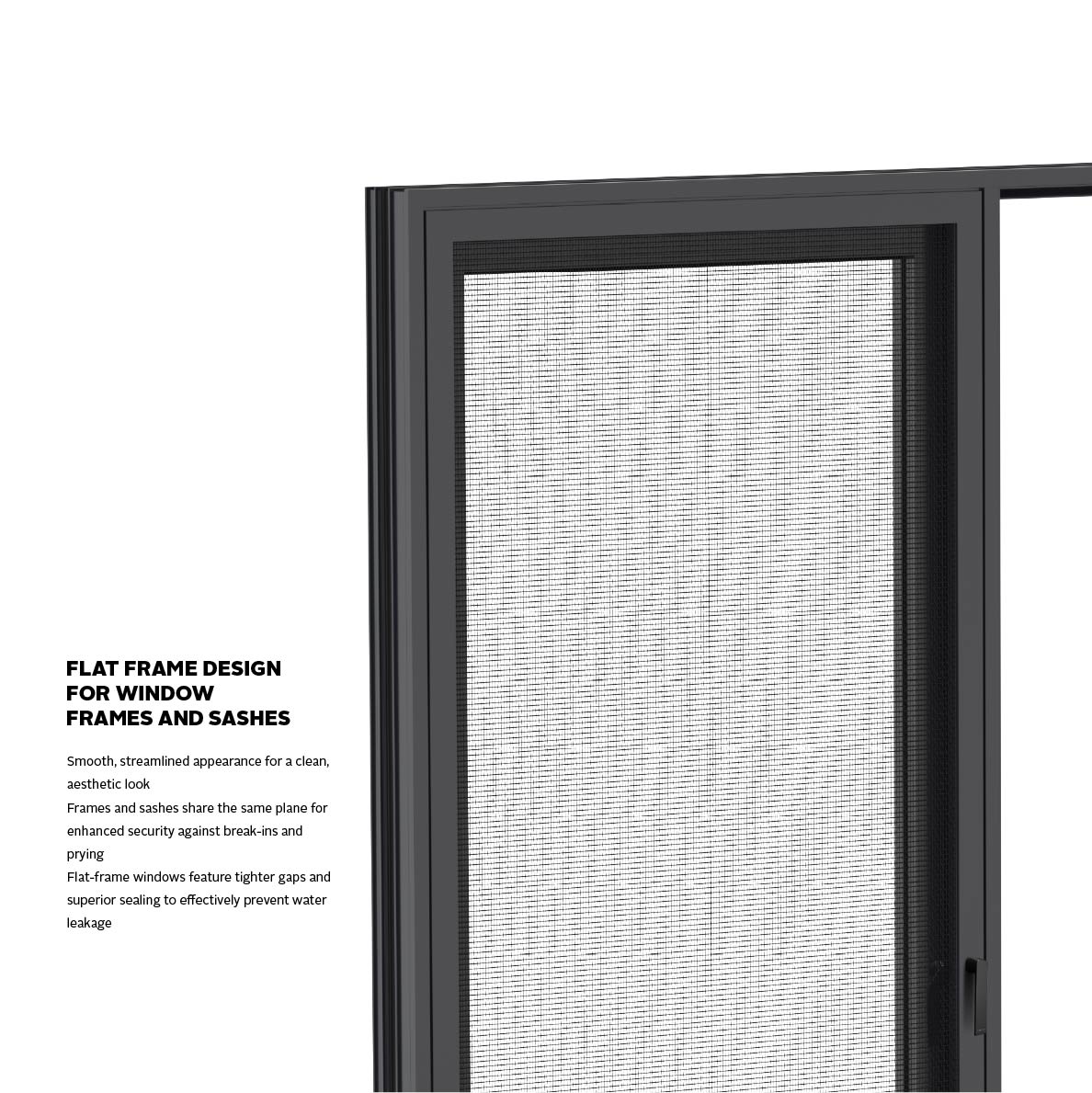

The indoor and outdoor frame sash are flush.
There are two options for the guardrails in the open position: fixed guardrails and openable guardrails.
You can choose to install stainless steel screen or high-transparency screen.
Glass installation direction: The opening position uses a conversion frame, all pressure lines are indoors, and the glass is installed from indoors to ensure the personal safety of construction workers.

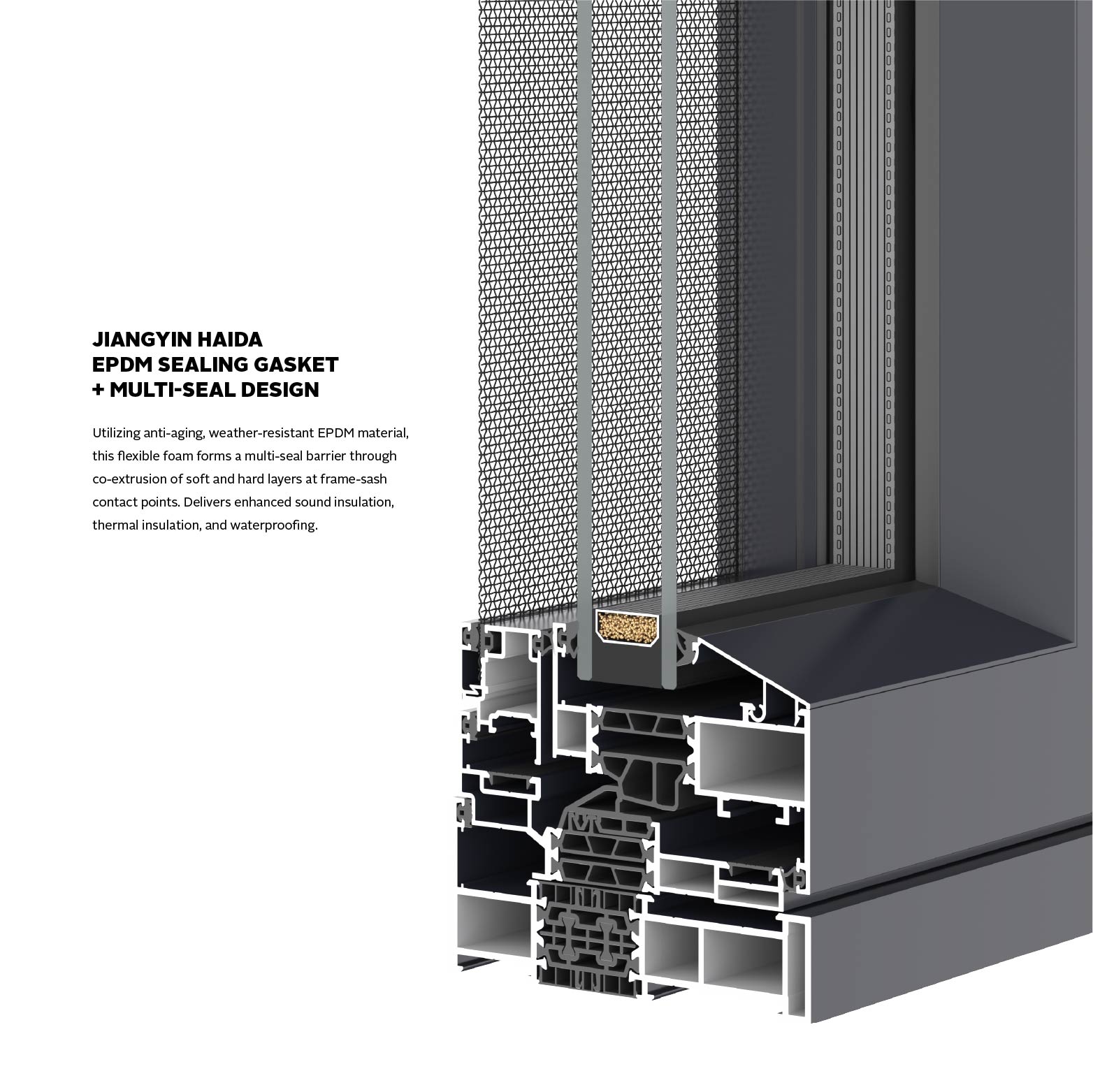

The glass adopts a glue-free strip process (EPDM is used inside the glass, and EPDM foamed composite soft and hard co-extruded strips are used outside the glass).

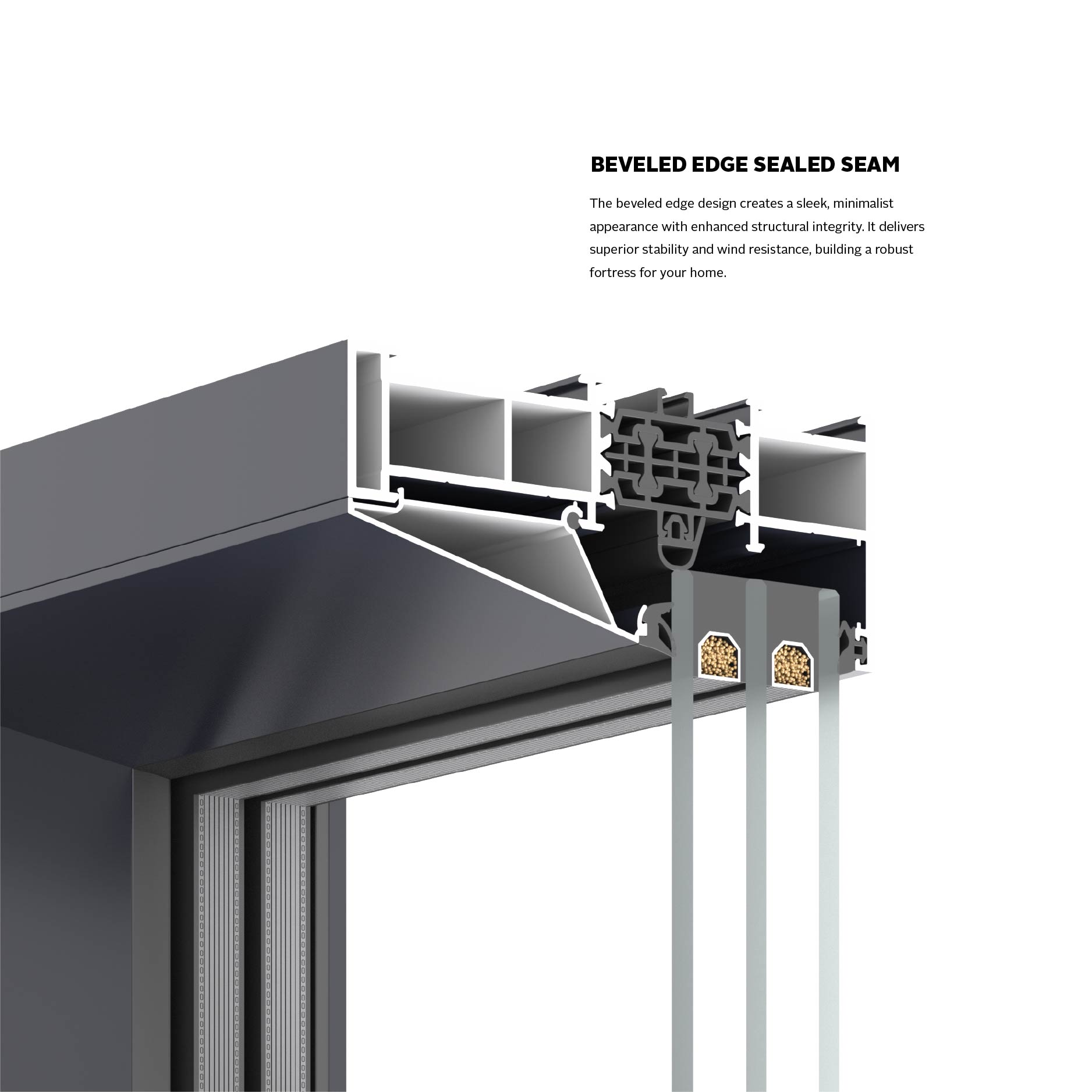

This series of fixed positions has three options for selection: small square pressure line, arc pressure line, and large oblique pressure line.

Parameters

ltem Number

HYGP121A

Type

double opening door with screen

Double inward opening window

Material

6063-T5 Original aluminum alloy

Profile Thickness

2.2mm

Against the Wall Width

121mm

Insulation Strip Width

Frame 25mm/ Door 14.8mm

38mm/48.2mm

Glass

5+19A+5 Double tempered glass

5+19A+5 or 5+12A+5+12A+5 Optional double or triple tempered glass

Finish Color(Standard Colors)

Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.

Standard Colors

HY-001 black
HY-002 coffee

Finish Color(Custom Colors)

Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.

Custom Colors

Blueberry Milkshake
HY-002 Gray
HY-077 khaki
HYDZ-030 Sandalwood
HYDZ-031 blue
HYDZ-039 silver white
HYDZ-062 white
HYDZ-064 dark blue
HYDZ-071 green
HYDZ-073 white gray

Glass

Type of glass

Our standard glazing is double glazed clear tempered glass, if you have special requirements we can provide single glazing or triple glazing options.
Double
Single
Triple

Glass functional options

We offer you a choice of glass types for energy efficiency, peace of mind, privacy, security and more, allowing you to balance the privacy and natural light you prefer while delivering superior quality and thermal performance.
Tempered Glass
Frosted Glass
Laminated Glass
LOW-E Glass
Insulated Glass
