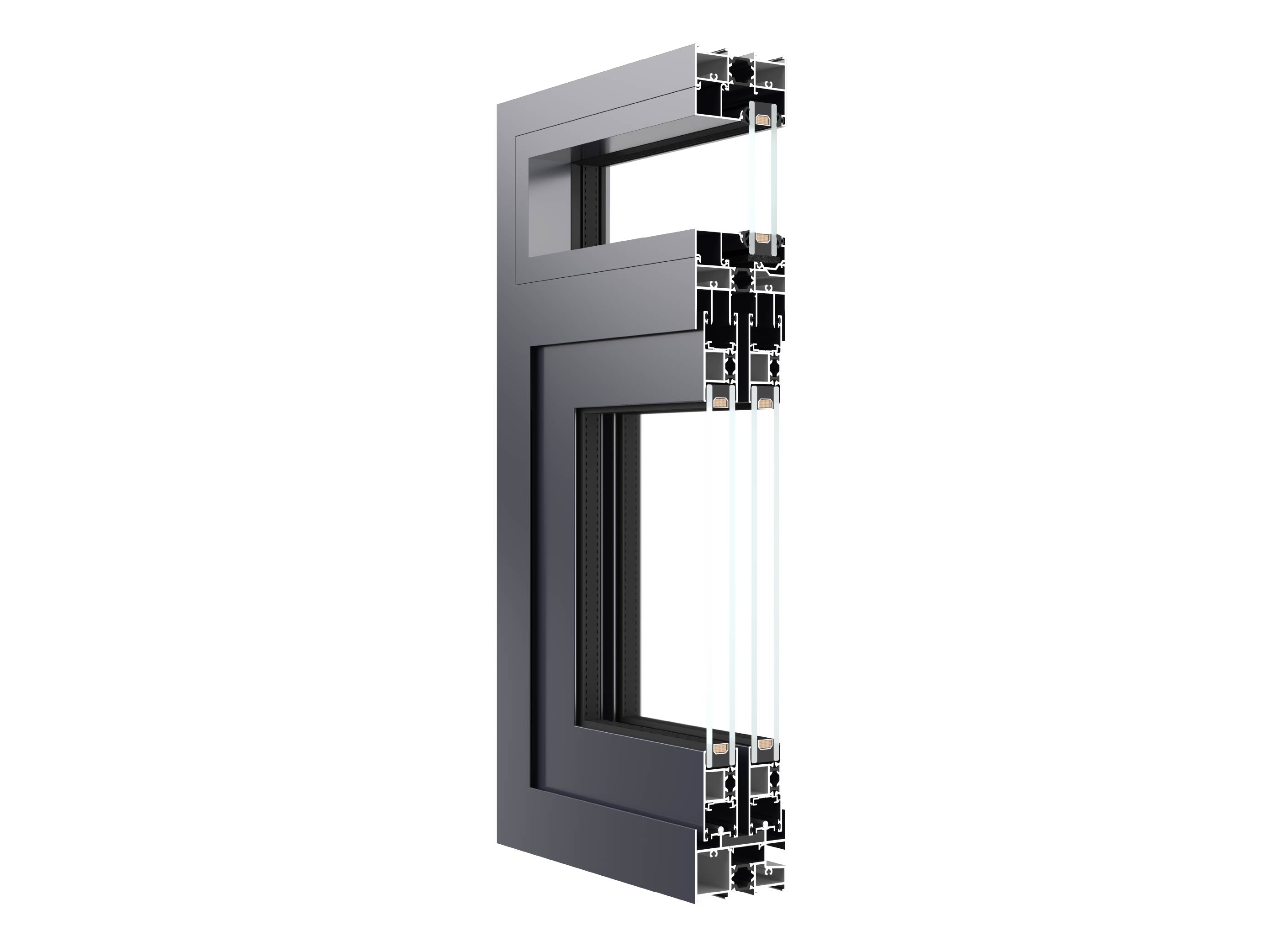

HYGT84C/120C series of heat-insulating sliding windows are products that adopt a square and simple style and are built with systematic thinking.

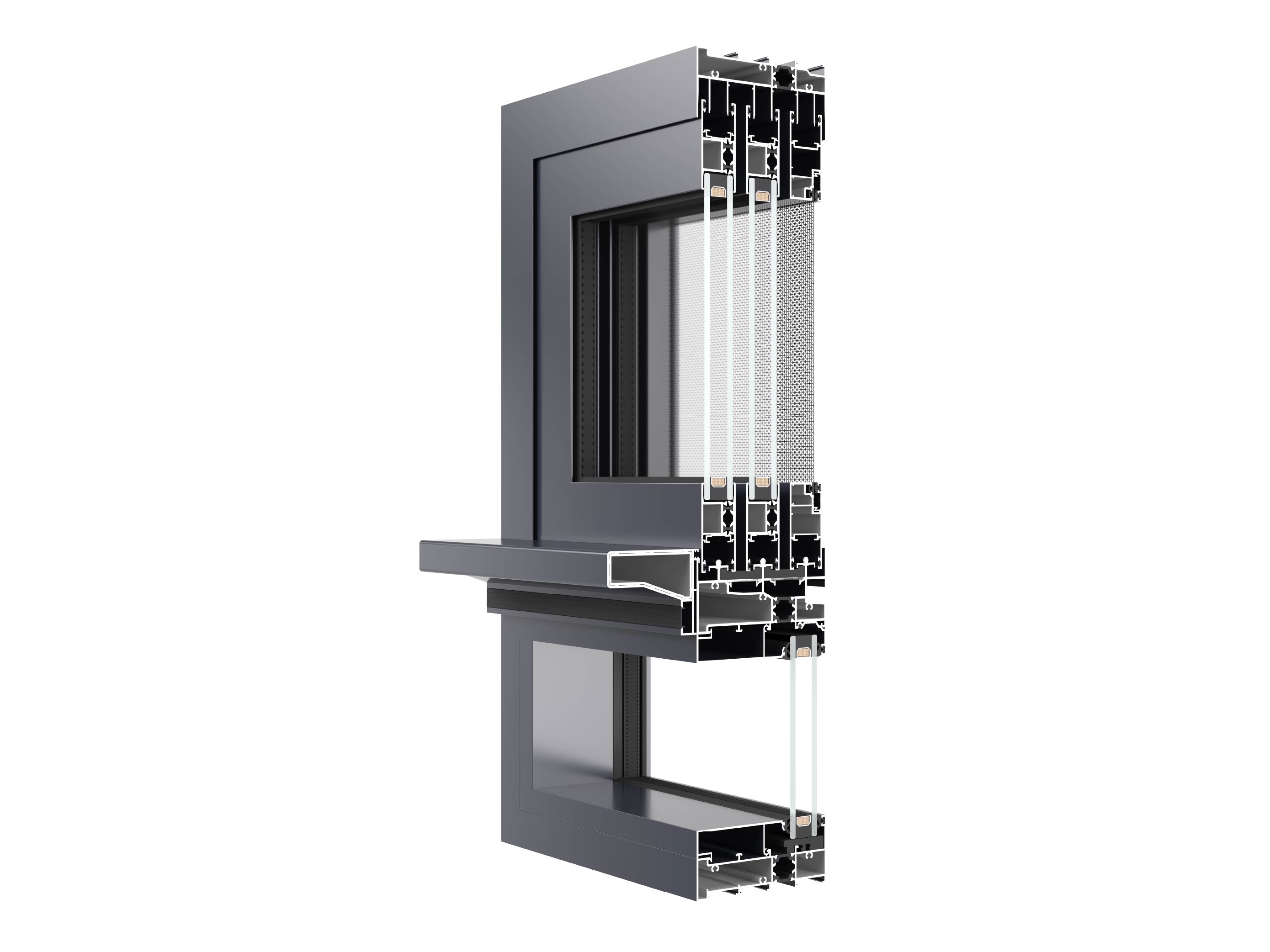

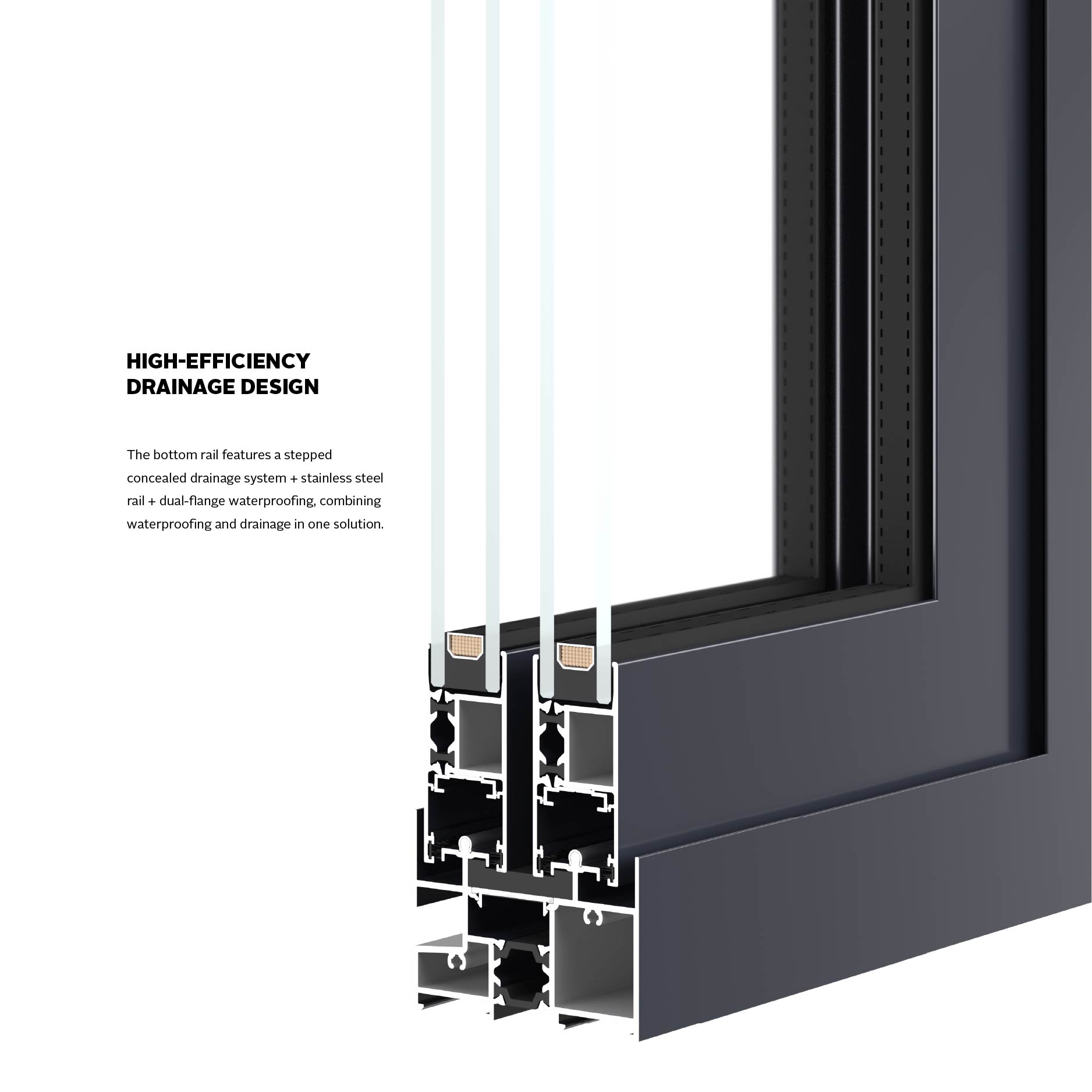

The lower rail adopts stepped hidden drainage + stainless steel rail + double retaining edge, which is waterproof and drainage. Invisible drainage design uses water pressure to drain water, which is smooth and beautiful in appearance. The lower rail can be equipped with handrail tube.
The vertical edge seal and the upper rail, lower rail, and fixed horizontal frame are spliced at 90 degrees, which is easier to waterproof.
The multi-layer siliconized strip design blocks strong winds layer by layer, and is insect-proof, dust-proof, and waterproof.
The ultra-high sliding and unique isobaric cavity principle design ensure that there will be no water accumulation and leakage in the case of strong winds and rainstorms.
The use of precise craftsmanship and high-quality pulleys has higher strength and wear resistance, making the doors and windows easy to push and pull, smooth, and more flexible to open.
Parameters
ltem Number
HYGT84C/ 120C
Type
Sliding Window
Material
6063-T5 Original aluminum alloy
Profile Thickness
1.8mm
Against the Wall Width
84mm/ 120mm
Insulation Strip Width
Frame 20.0mm
Glass
5+15A+5 Double tempered glass
Finish Color(Standard Colors)
Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.
Standard Colors

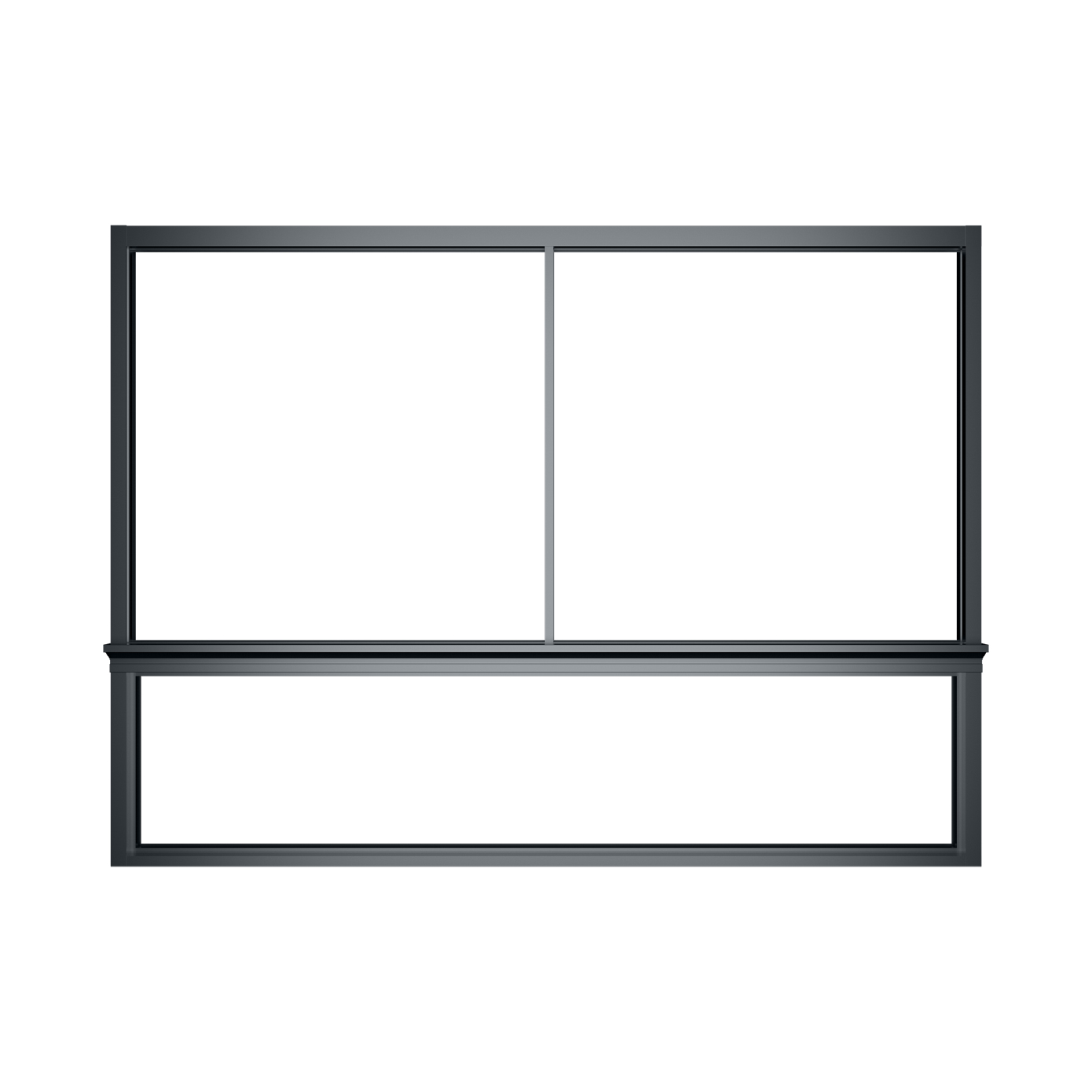

HY-001 black
HY-002 coffee
Finish Color(Custom Colors)
Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.
Custom Colors
Blueberry Milkshake

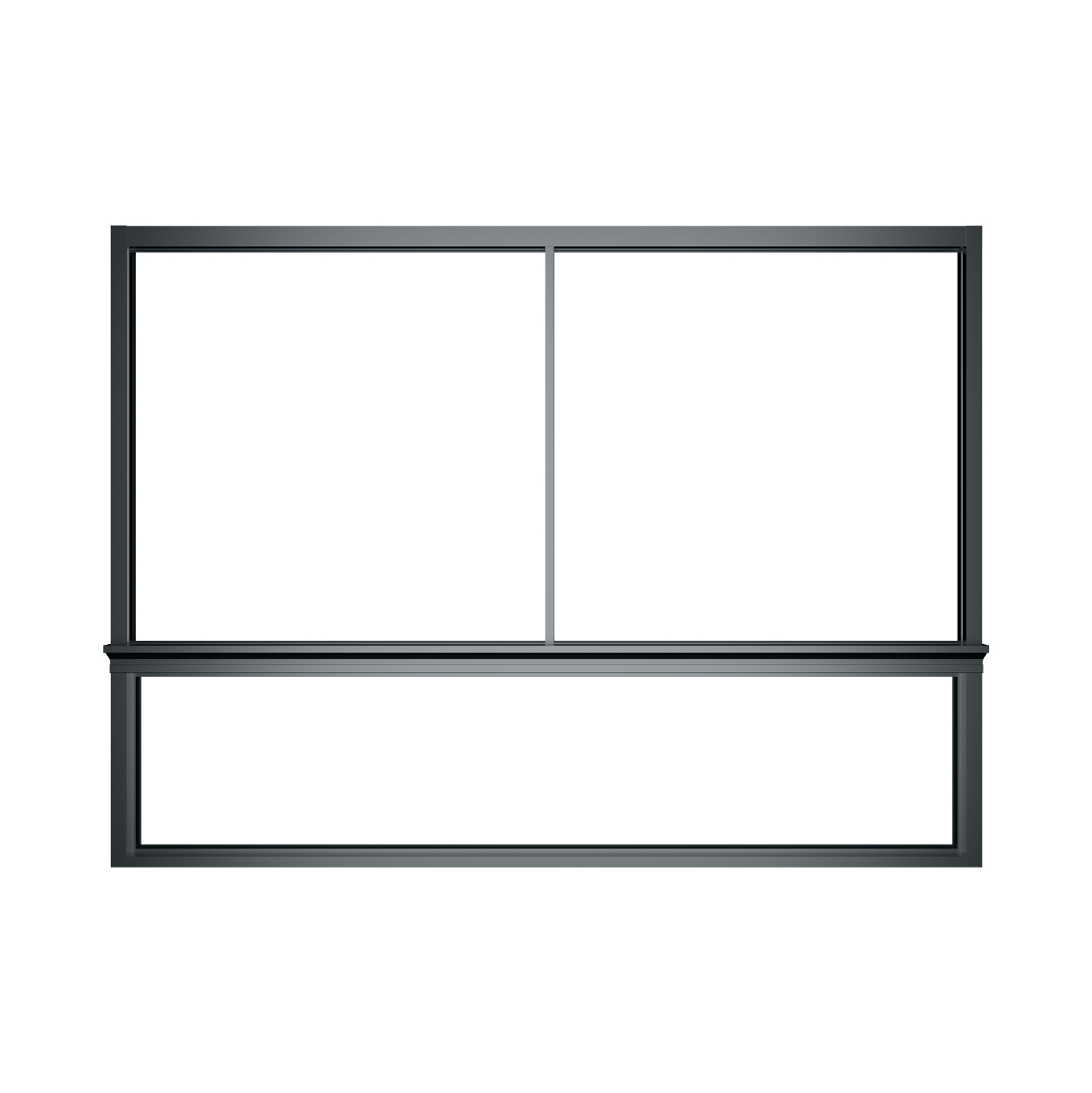

HY-002 Gray
HY-077 khaki

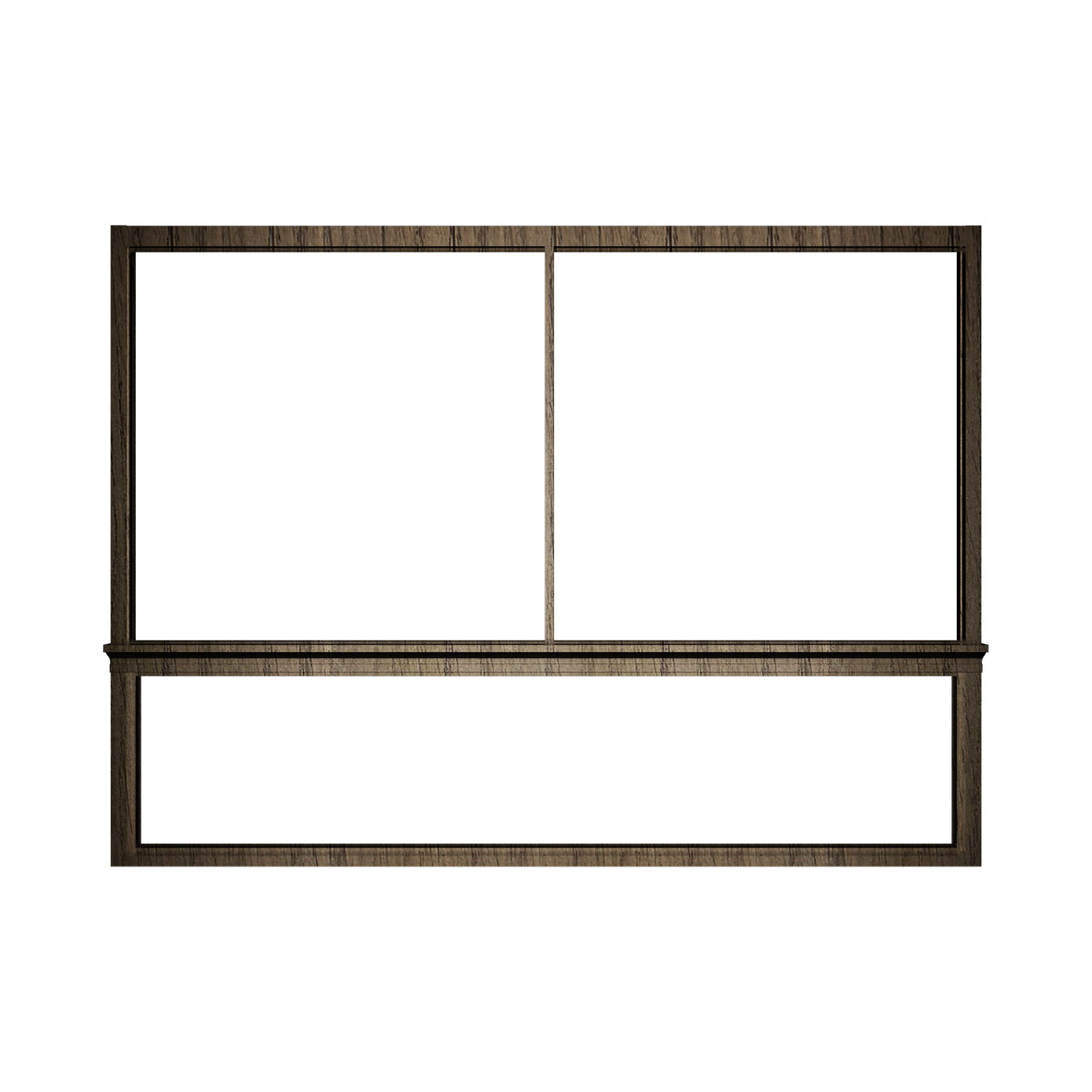

HYDZ-030 Sandalwood

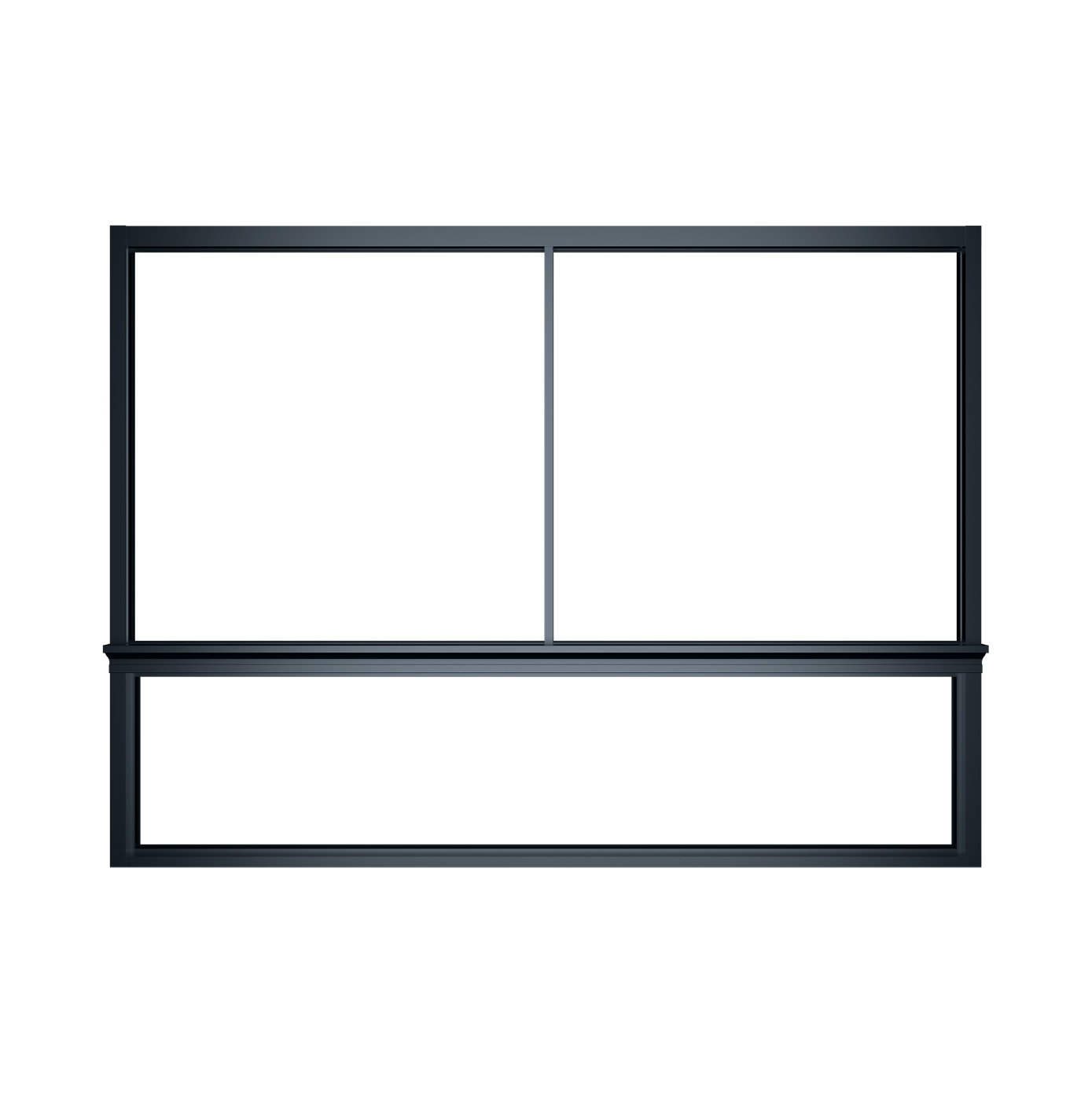

HYDZ-031 blue
HYDZ-039 silver white
HYDZ-062 white

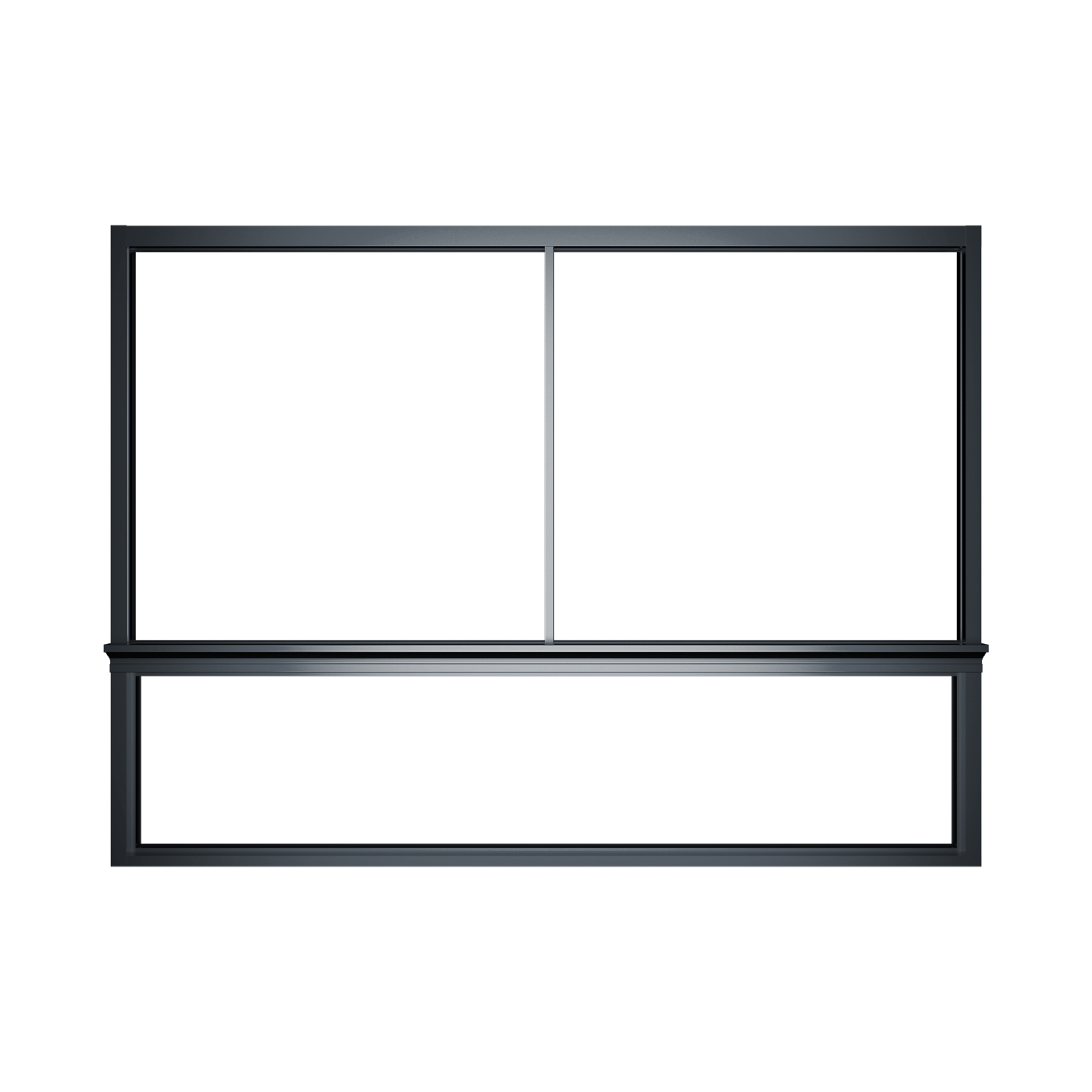

HYDZ-064 dark blue
HYDZ-071 green

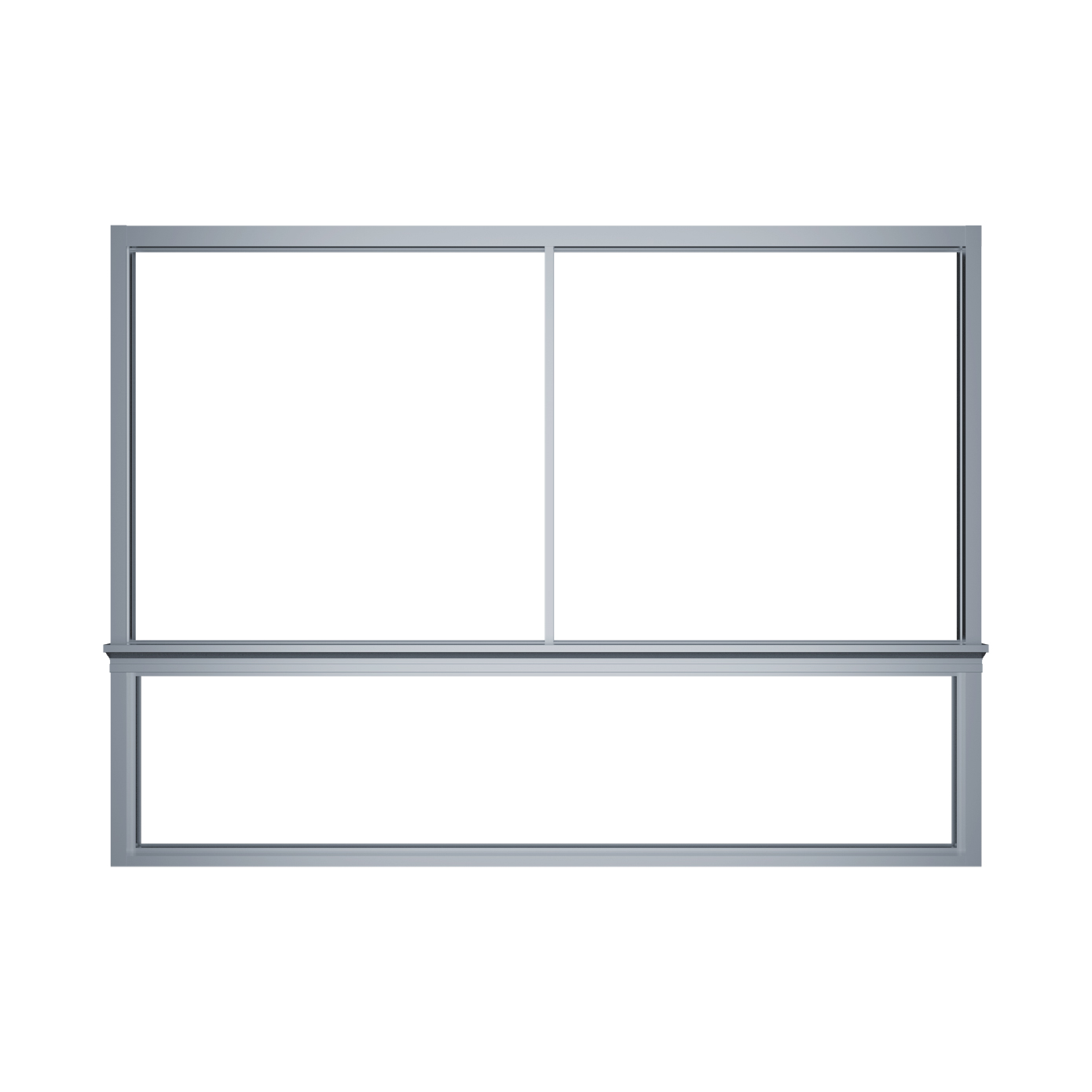

HYDZ-073 white gray
Glass
Type of glass
Our standard glazing is double glazed clear tempered glass, if you have special requirements we can provide single glazing or triple glazing options.
Double
Single
Triple
Glass functional options
We offer you a choice of glass types for energy efficiency, peace of mind, privacy, security and more, allowing you to balance the privacy and natural light you prefer while delivering superior quality and thermal performance.
