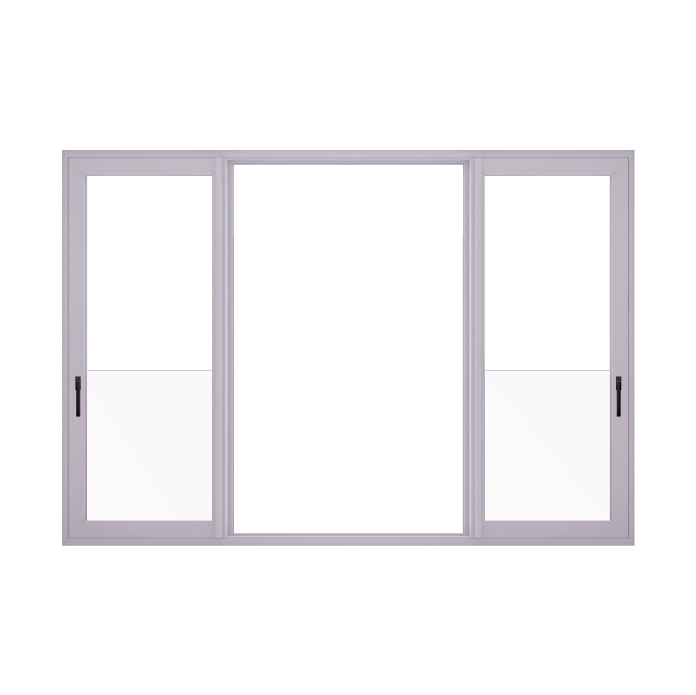

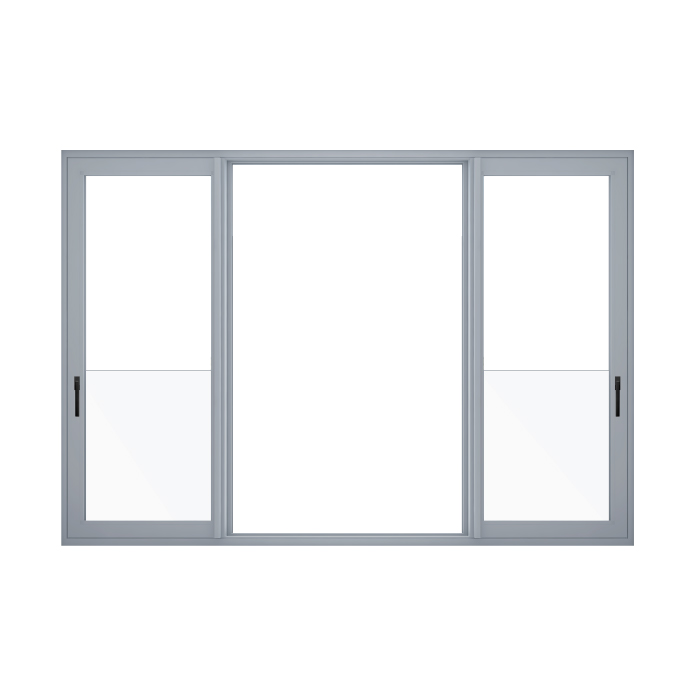

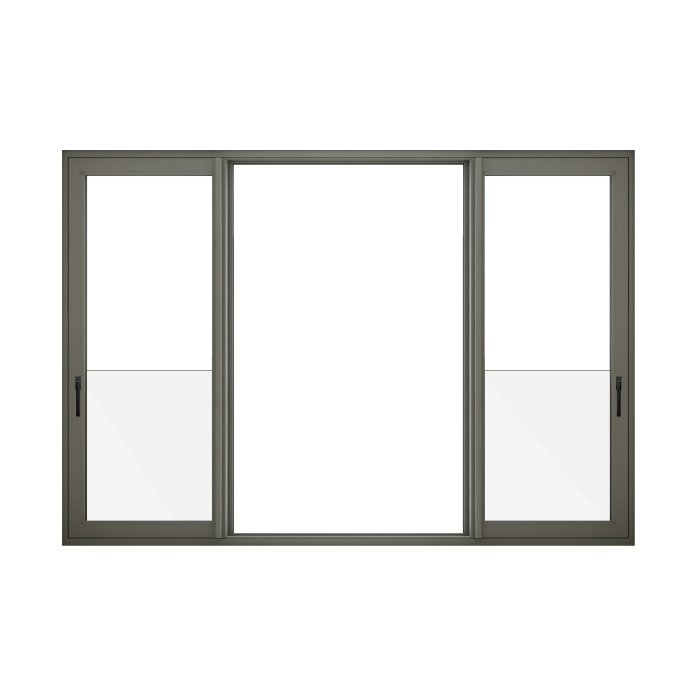

The HYGY120B series of sliding side pressure sealing insulation sliding doors and windows solve the pain points of inward-opening windows occupying indoor space, poor sealing performance of conventional sliding windows, and safety hazards of outward-opening windows. It is a product built with systematic thinking.

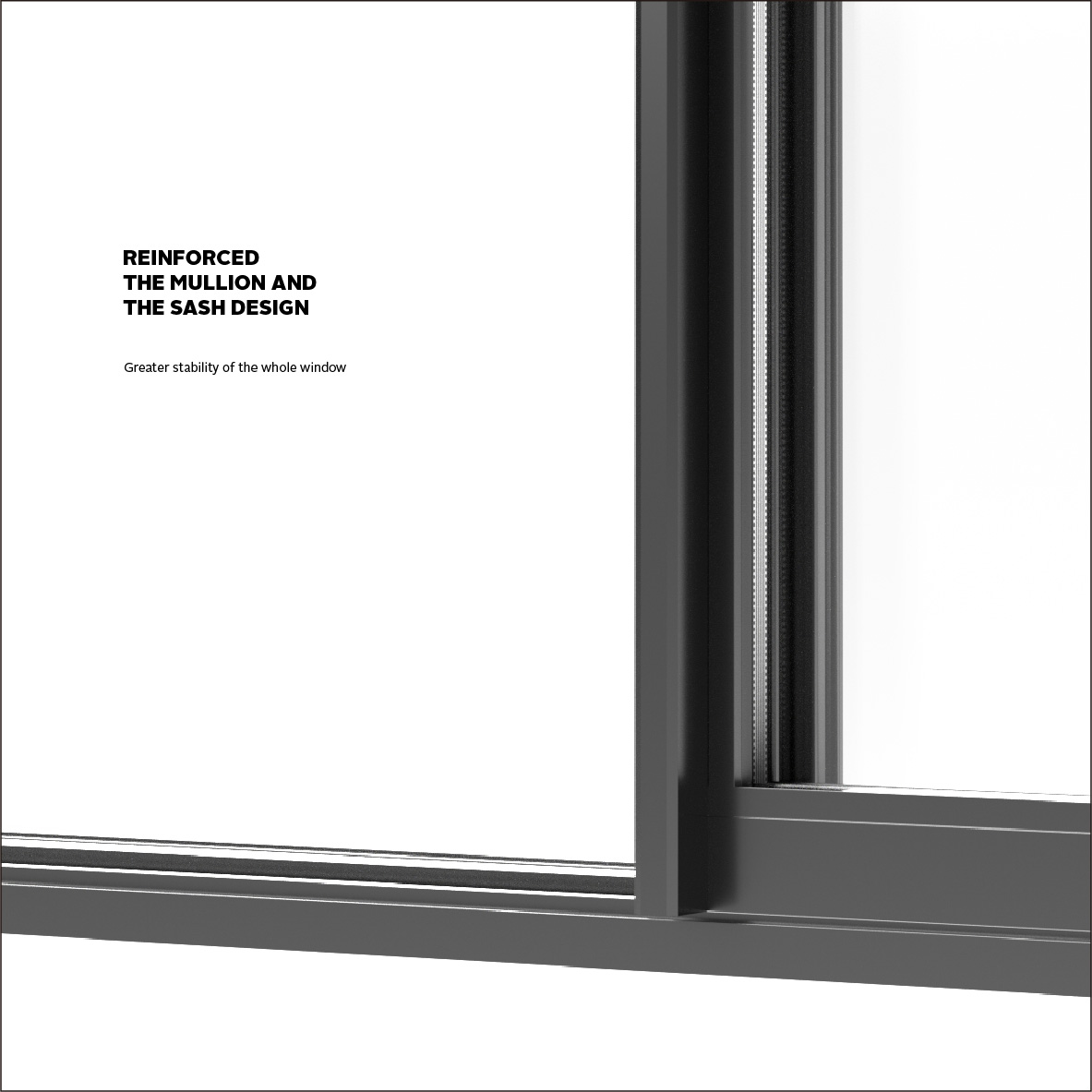

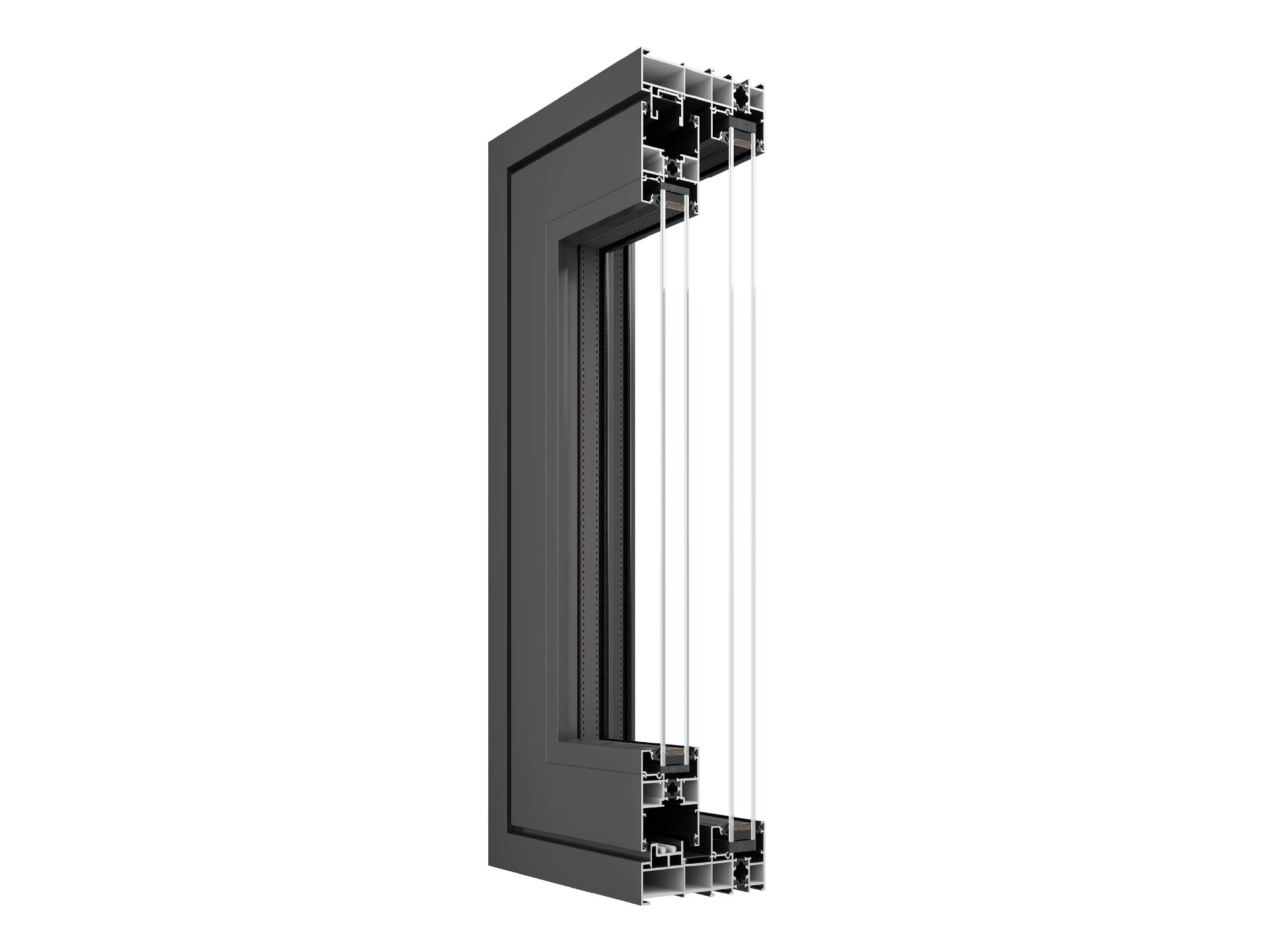

The frame assembly of this series adopts 45-degree angle assembly like conventional casement windows, which can ensure overall stability.

The movable sash adopts special OSM C-groove translation and lateral compression hardware accessories, and adopts multi-locking point design to improve sealing performance.

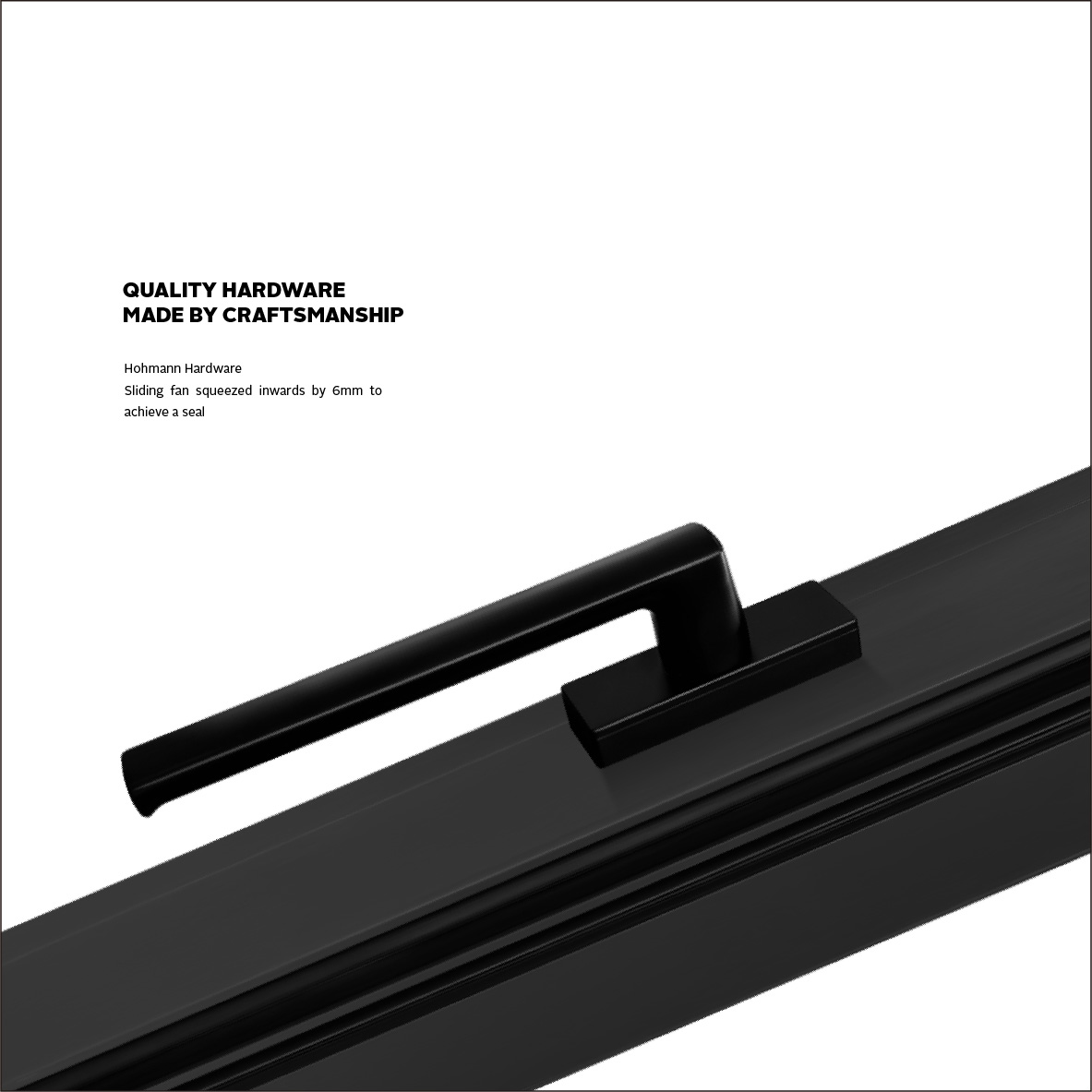

The connecting parts adopt card point connection, the handle rotates 180°, and the movable sash translates 6mm, so that the movable sash and the outer frame are laterally compressed and sealed. And the sliding opening and hardware load-bearing capacity of this accessory are better than those of drifting hardware.

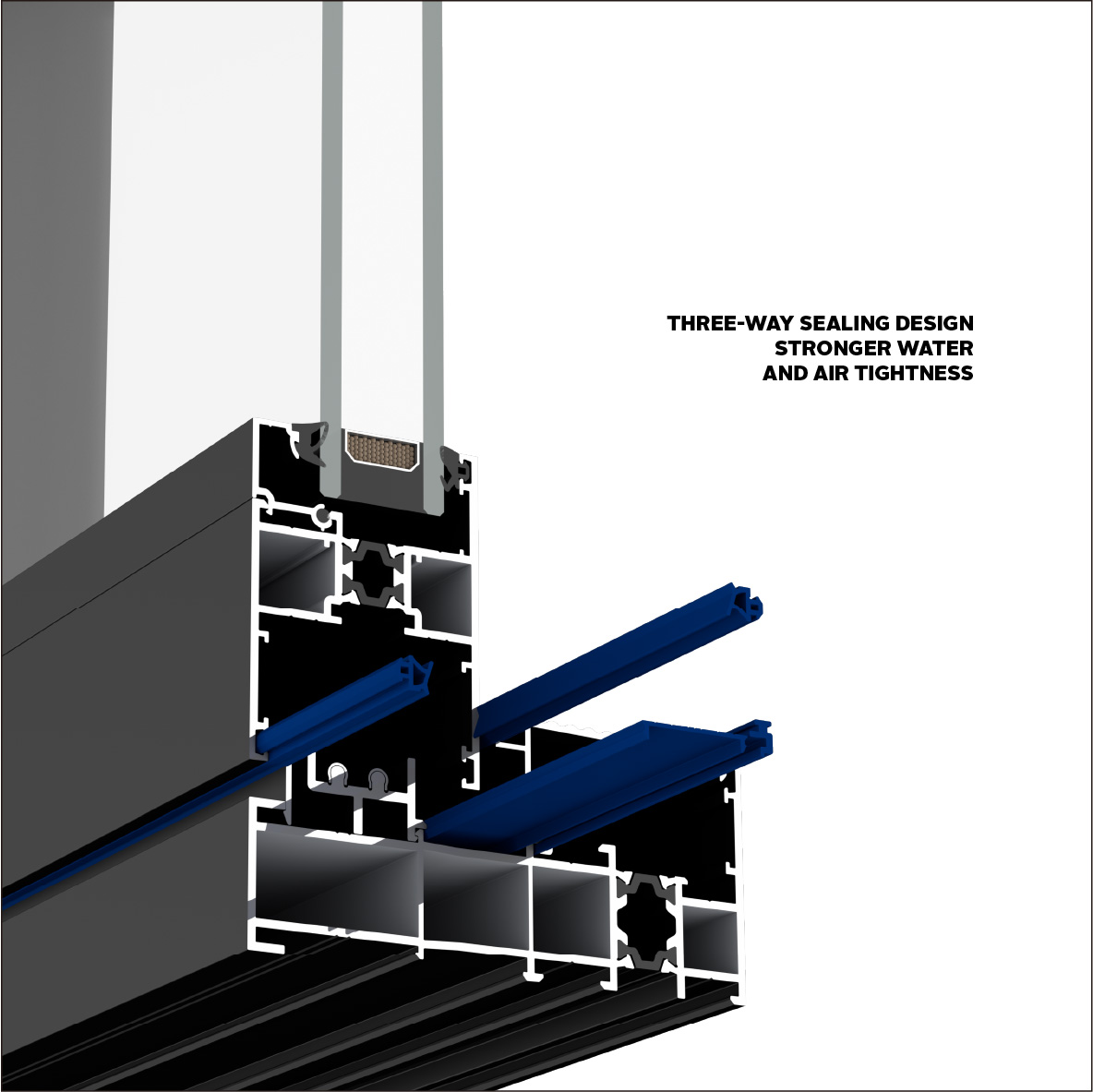

In order to ensure that the side cover plate and the hook plate do not produce cold bridge phenomenon after dry assembly, they are all equipped with full-length rubber strips to separate, so as to improve the thermal insulation and heat sealing performance of the whole window.

This series can be equipped with inward opening screen, fixed screen, accordion screen, invisible rolled screen, glass guardrail, etc. on the outside of the movable sash.

All glass adopts glue-free rubber strip technology (EPDM is used inside the glass, and EPDM foamed composite soft and hard co-extruded rubber strips are used outside the glass to greatly increase the extrusion amount of rubber strips outside the glass).
