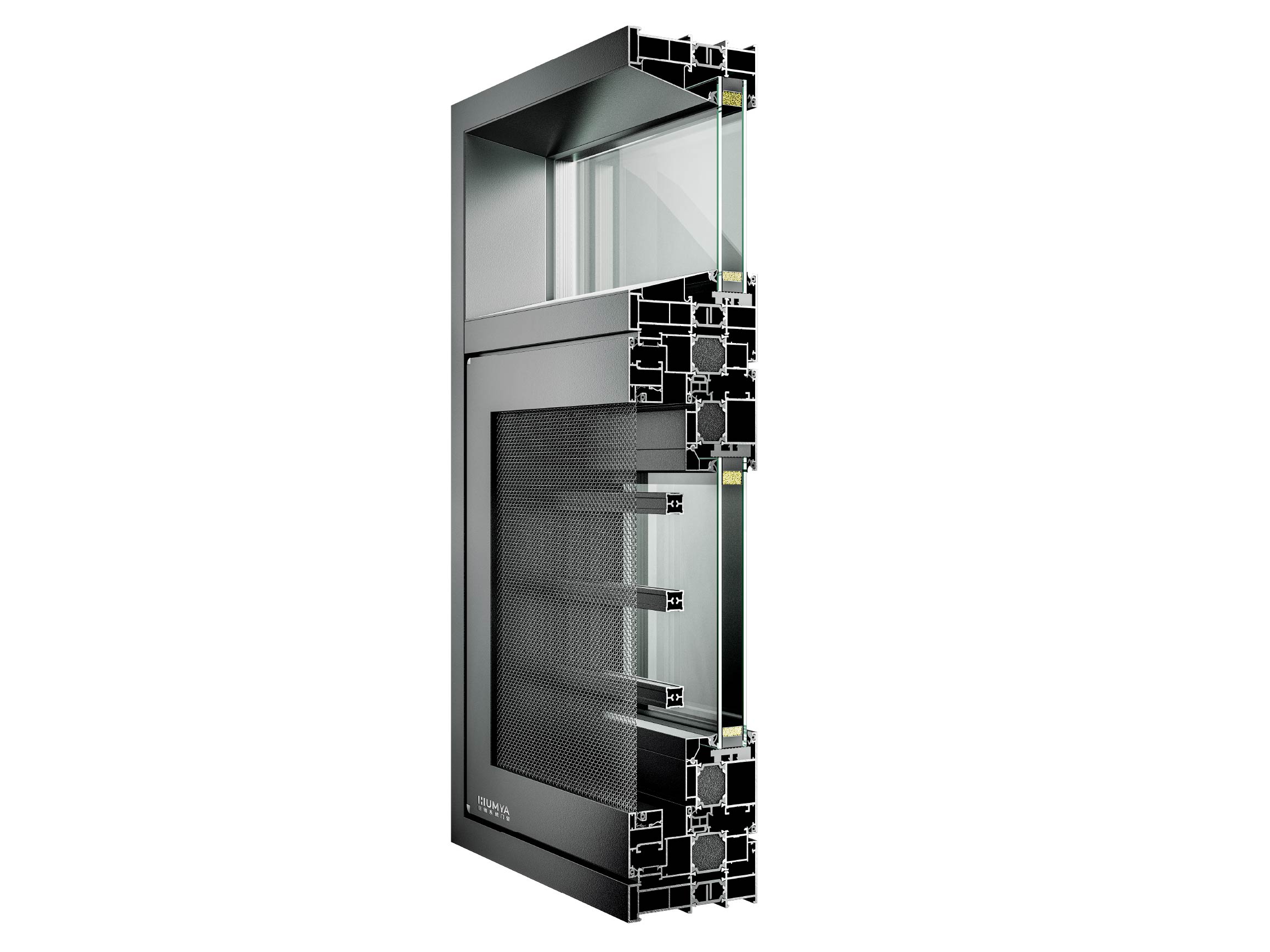

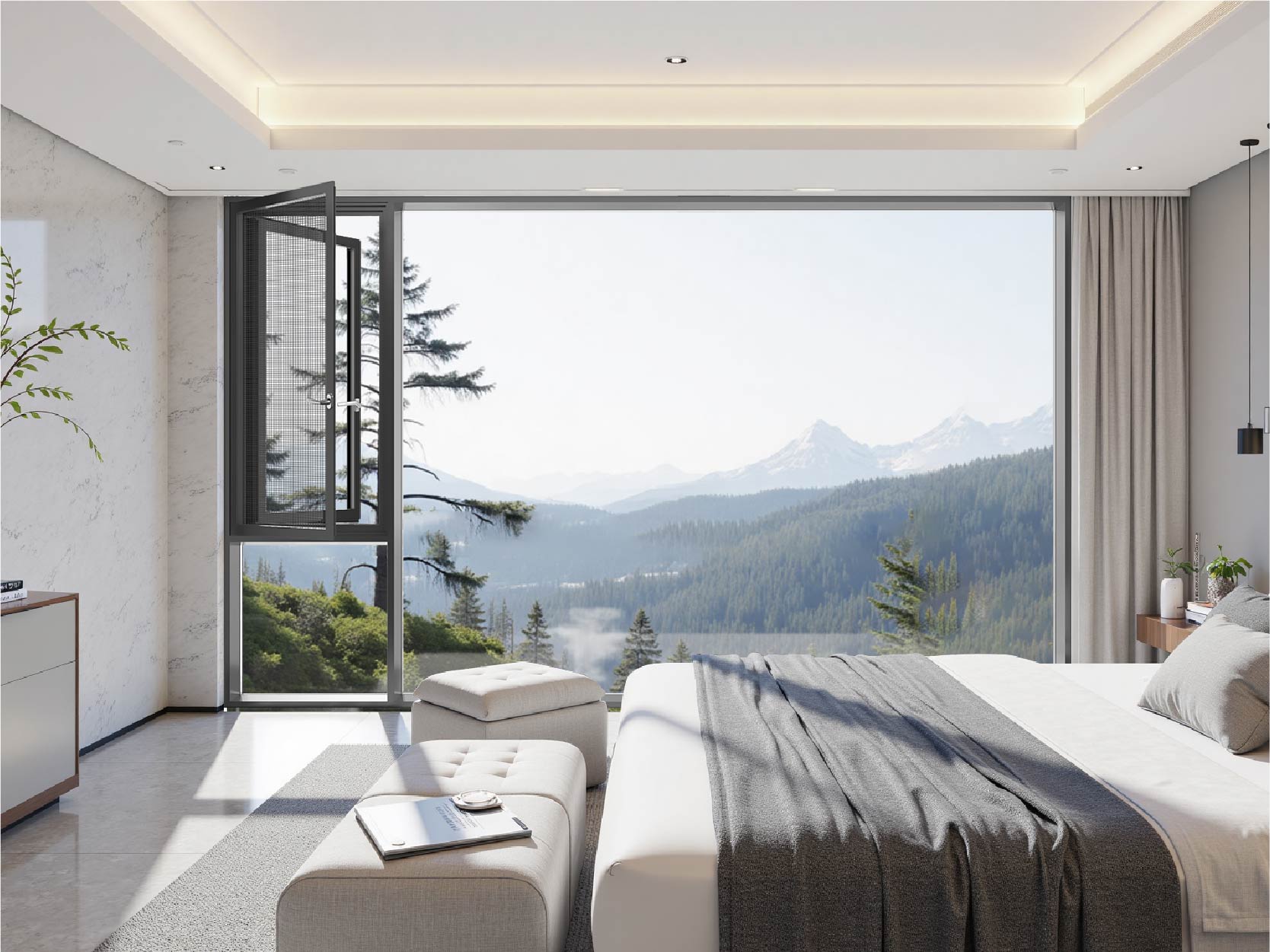

It is a product of outward-opening window with screen built with systematic thinking.

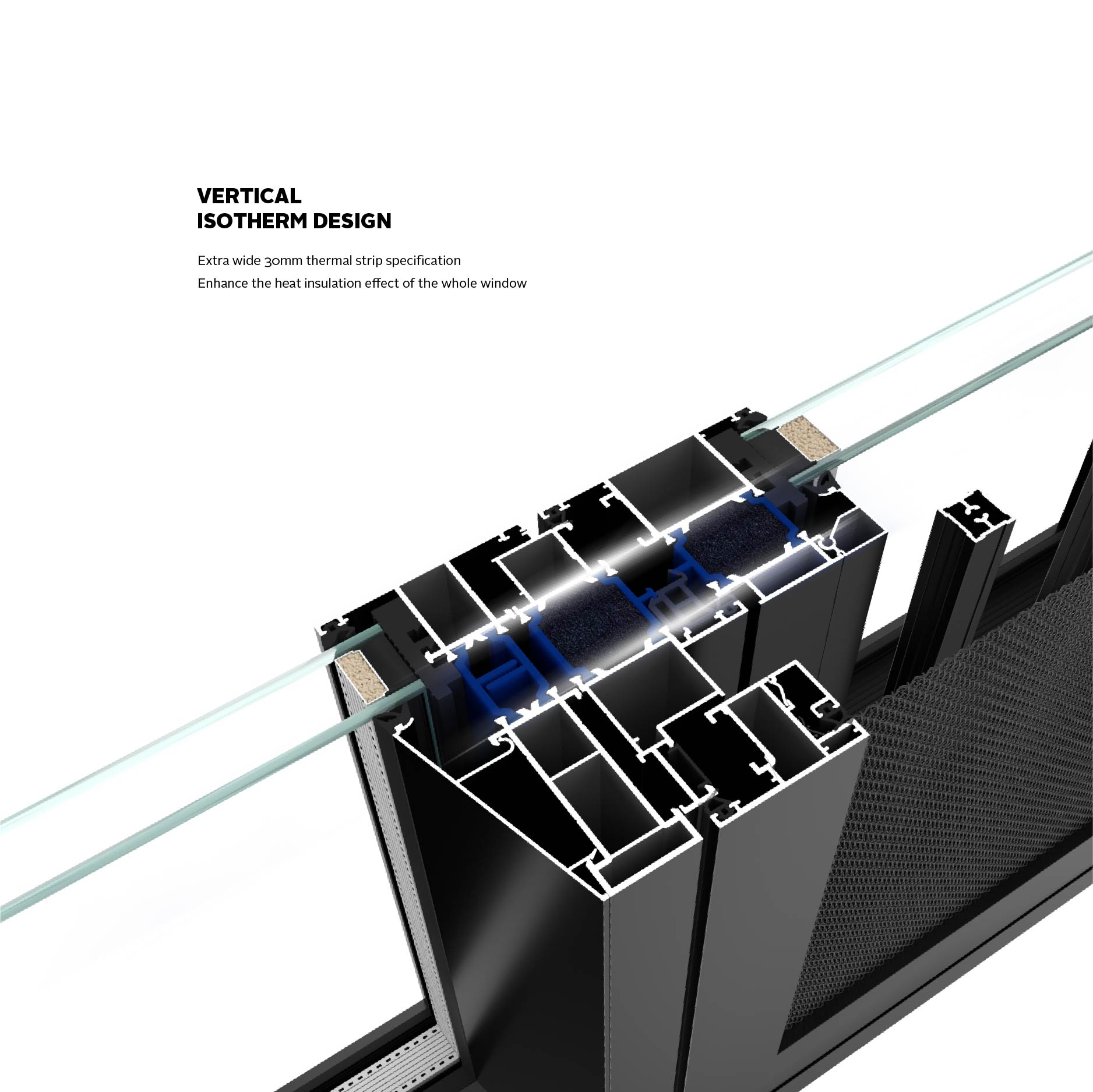

The insulation strips of this system are completely aligned, so that the overall isotherms of doors and windows are in the same plane, which can improve the thermal insulation performance of casement windows.

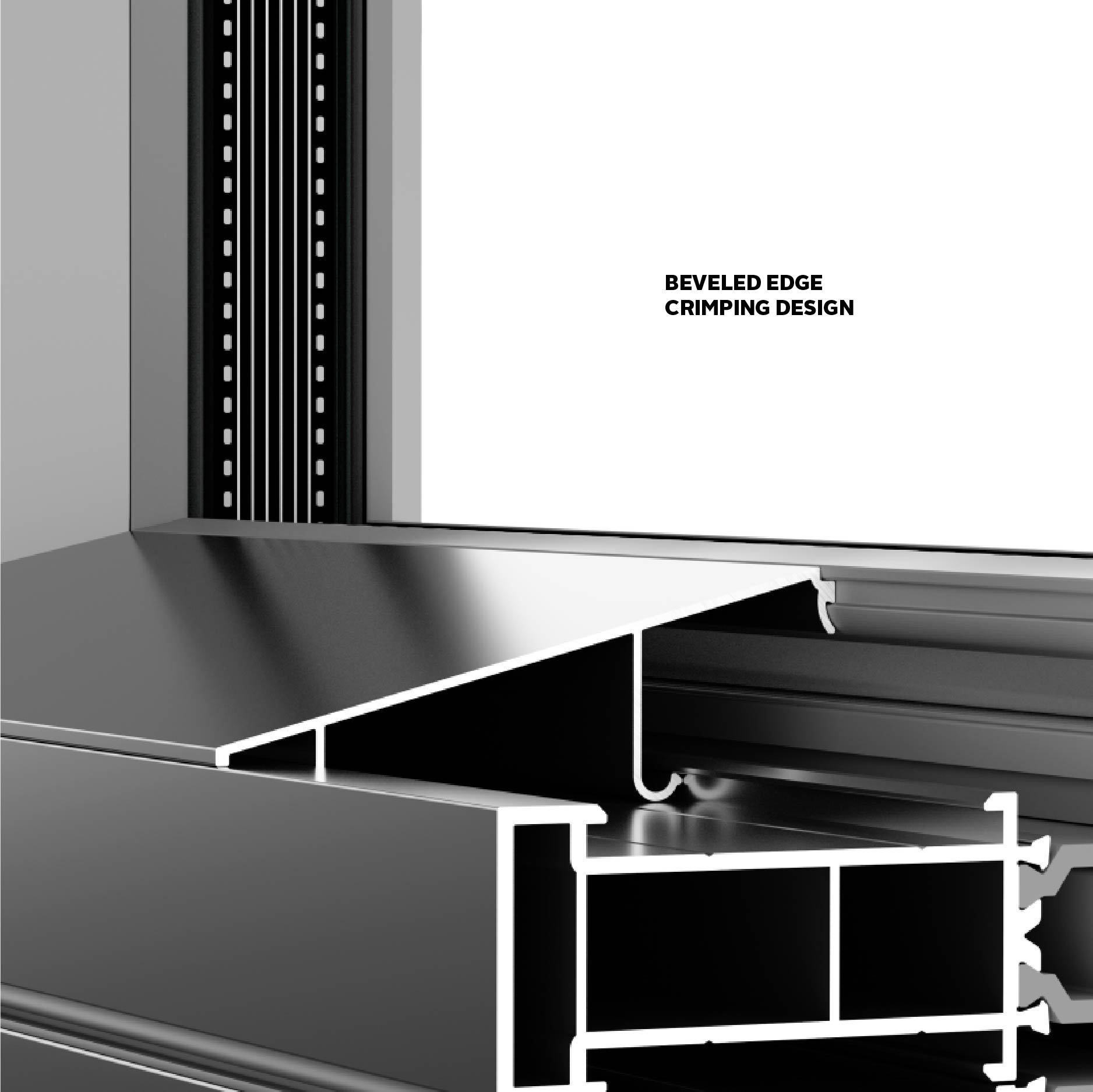

The hardware installation slot position of the glass sash at the opening position adopts 14mm wide slot on frame and 14.8mm C slot on sash design, and uses a dedicated built-in hinge.
The glass notches of this structure are designed to be glue-free (EPDM is used inside the glass, and EPDM foamed composite soft and hard co-extruded strips are used outside the glass), and the opening position is sealed with three-stage strips to separate the watertight cavity from the airtight cavity.
The outer frame adopts high-energy drainage or floor drain drainage design to prevent rainwater backflow and whistling.
The frame and sash are flush, which is beautiful and generous.
Glass installation direction: The opening position adopts a conversion frame, all the pressure lines are indoors, and the glass is installed from indoors to ensure the personal safety of construction workers.
Parameters
ltem Number
HYGP116E
Type
Casement Window
Material
6063-T5 Original aluminum alloy
Profile Thickness
1.6 - 1.9mm Two thicknesses
Against the Wall Width
110mm
Insulation Strip Width
25mm
Glass
5+15A+5 Double tempered glass
Finish Color(Standard Colors)
Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.
Standard Colors

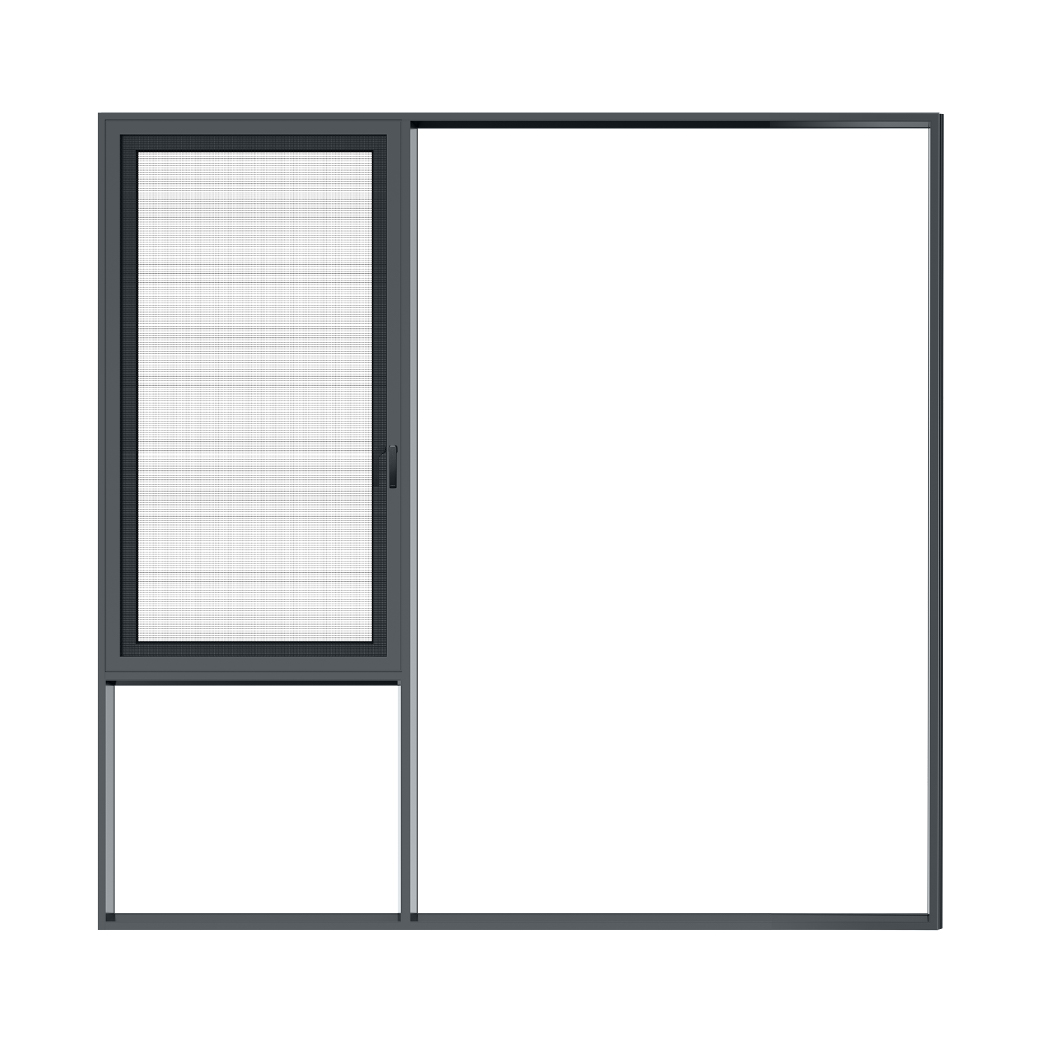

HY-001 black
HY-002 coffee
Finish Color(Custom Colors)
Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.
Custom Colors
Blueberry Milkshake
HY-002 Gray
HY-077 khaki
HYDZ-030 Sandalwood
HYDZ-031 blue
HYDZ-039 silver white
HYDZ-062 white

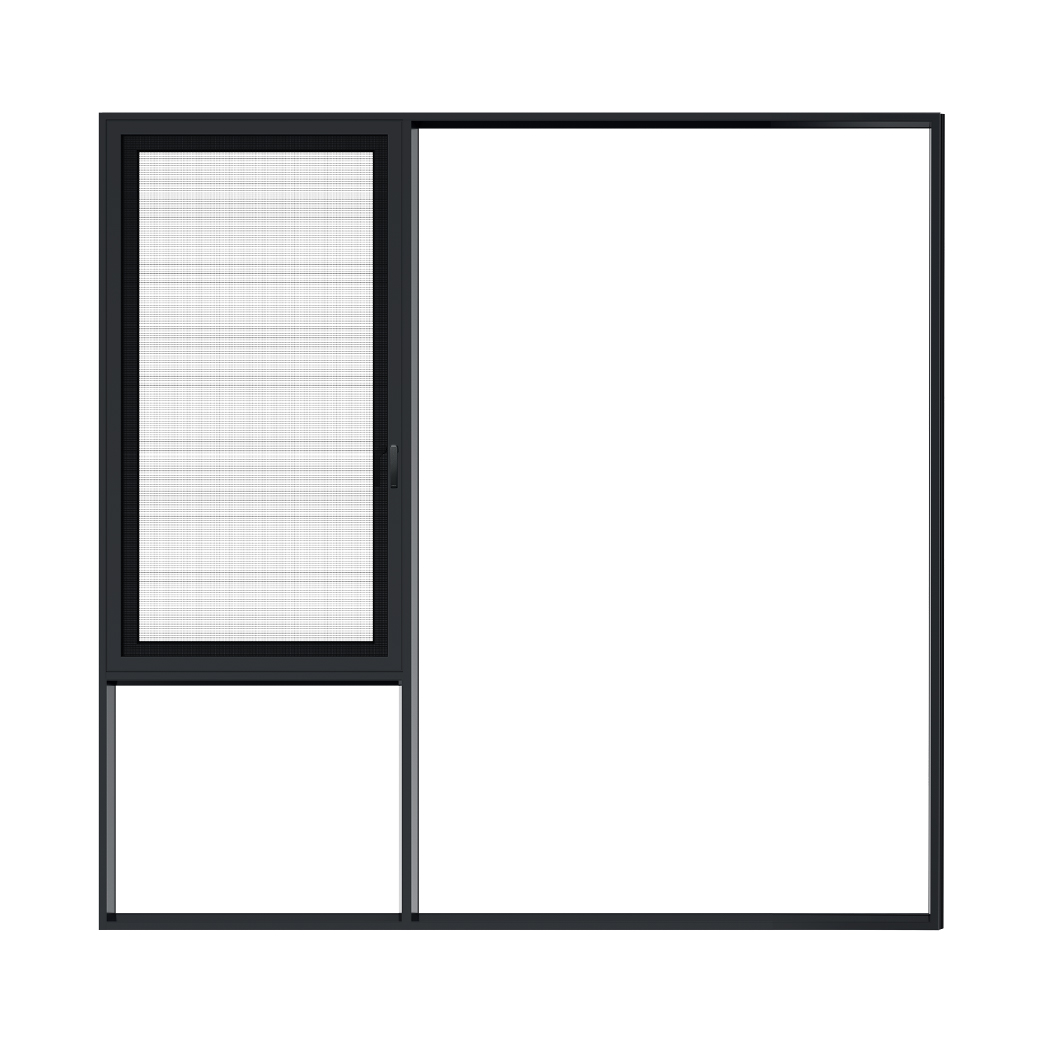

HYDZ-064 dark blue

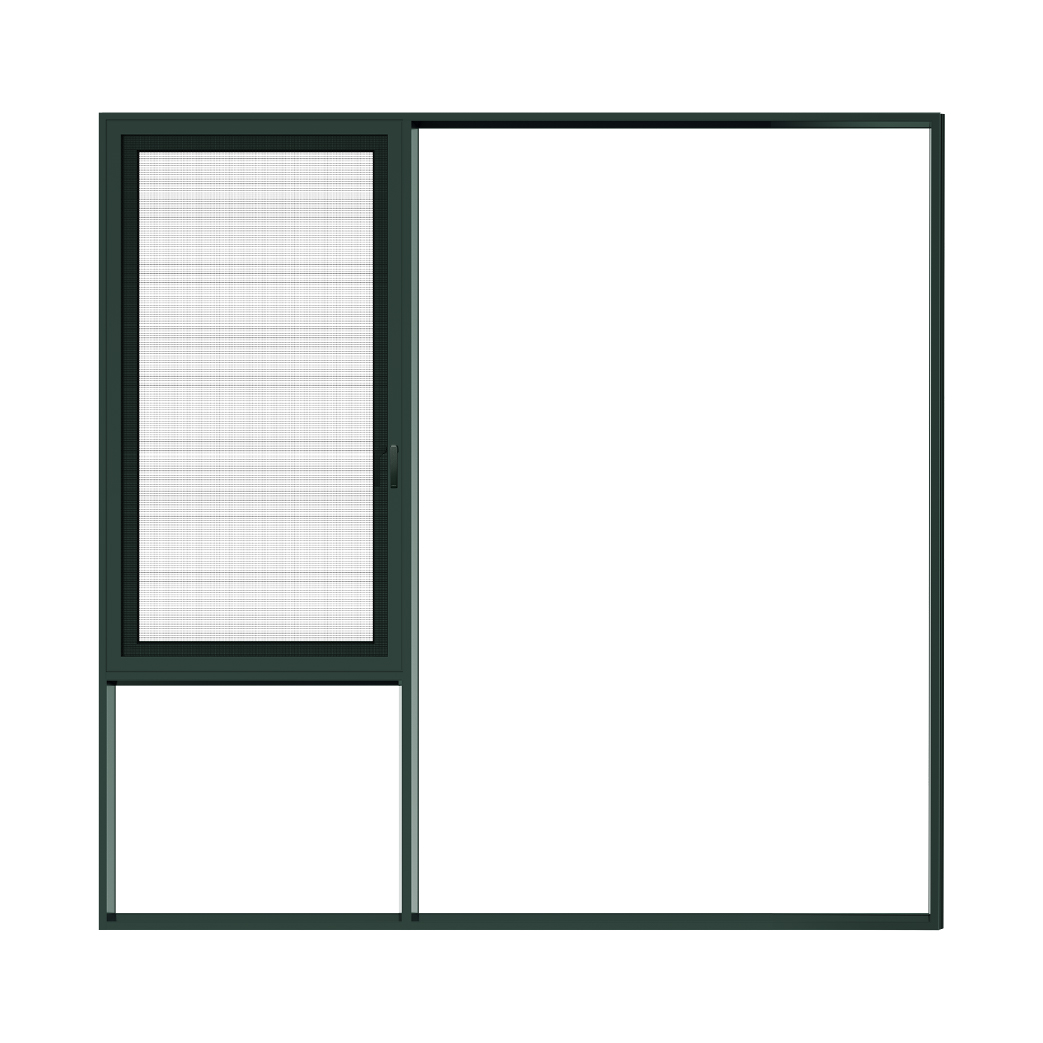

HYDZ-071 green

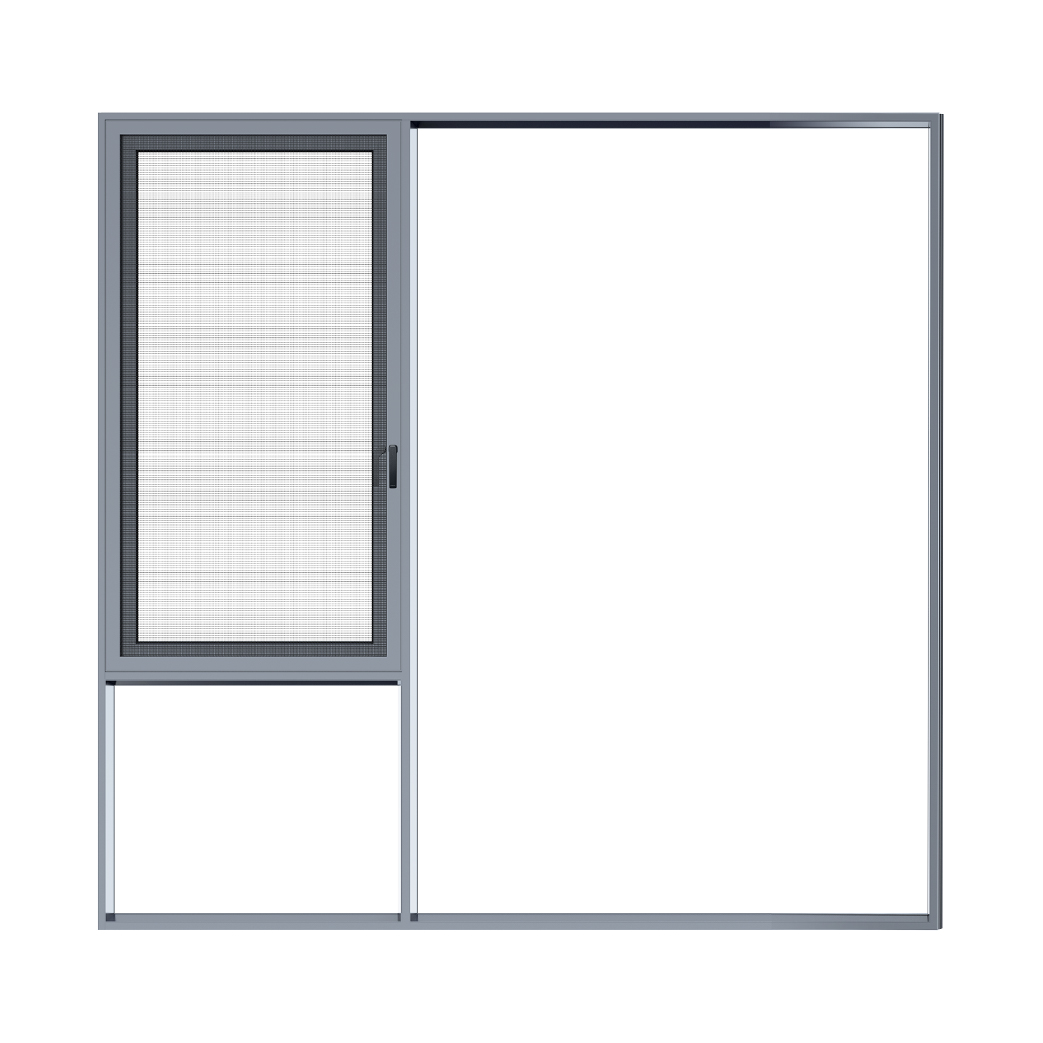

HYDZ-073 white gray
Glass
Type of glass
Our standard glazing is double glazed clear tempered glass, if you have special requirements we can provide single glazing or triple glazing options.
Double
Single
Triple
Glass functional options
We offer you a choice of glass types for energy efficiency, peace of mind, privacy, security and more, allowing you to balance the privacy and natural light you prefer while delivering superior quality and thermal performance.
