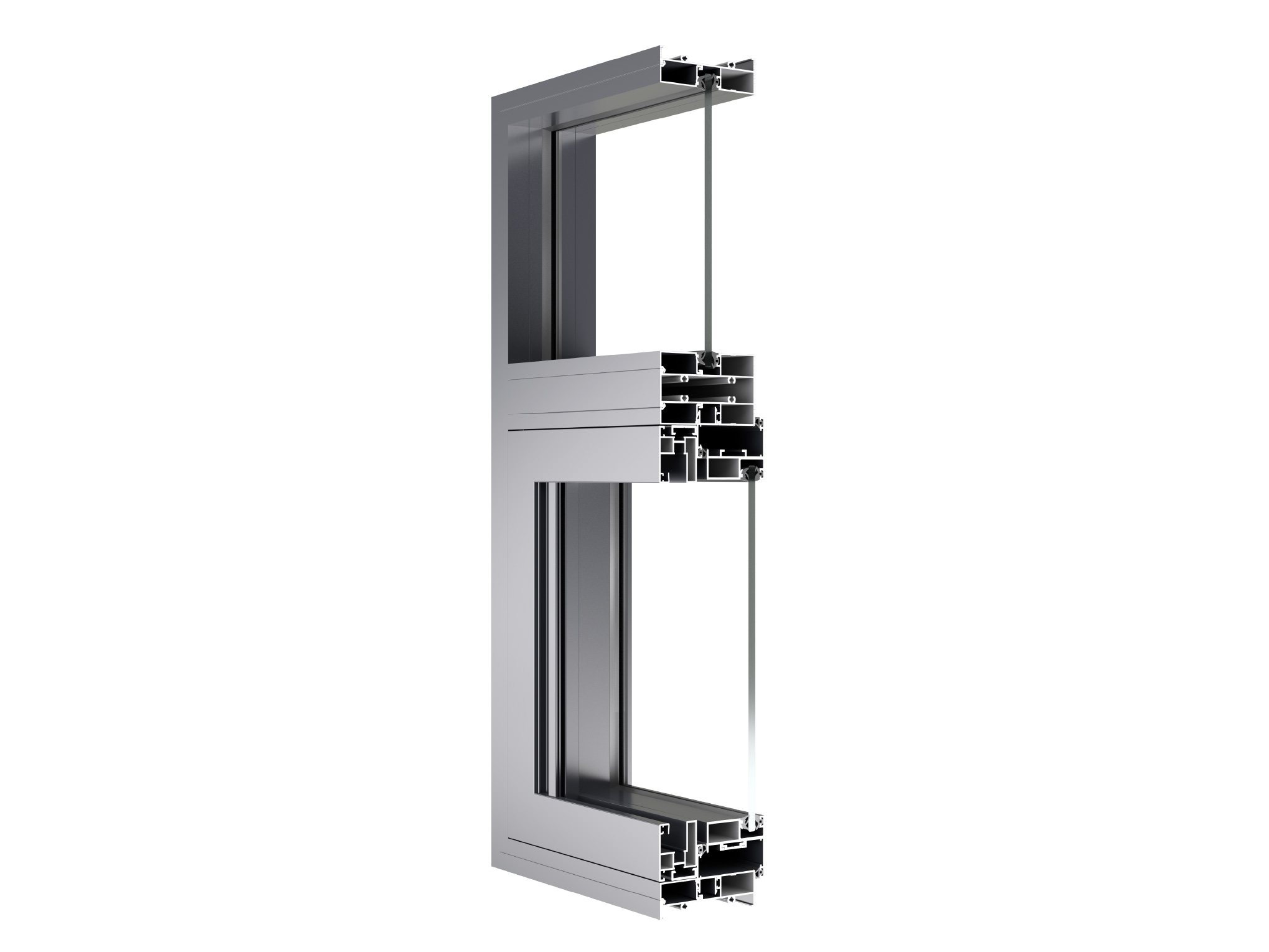

This series is a product created with a simple and fashionable style and systematic thinking.
The main frame has multiple cavities and multiple bearing points, which further improves the safety and wind pressure resistance of the whole window.

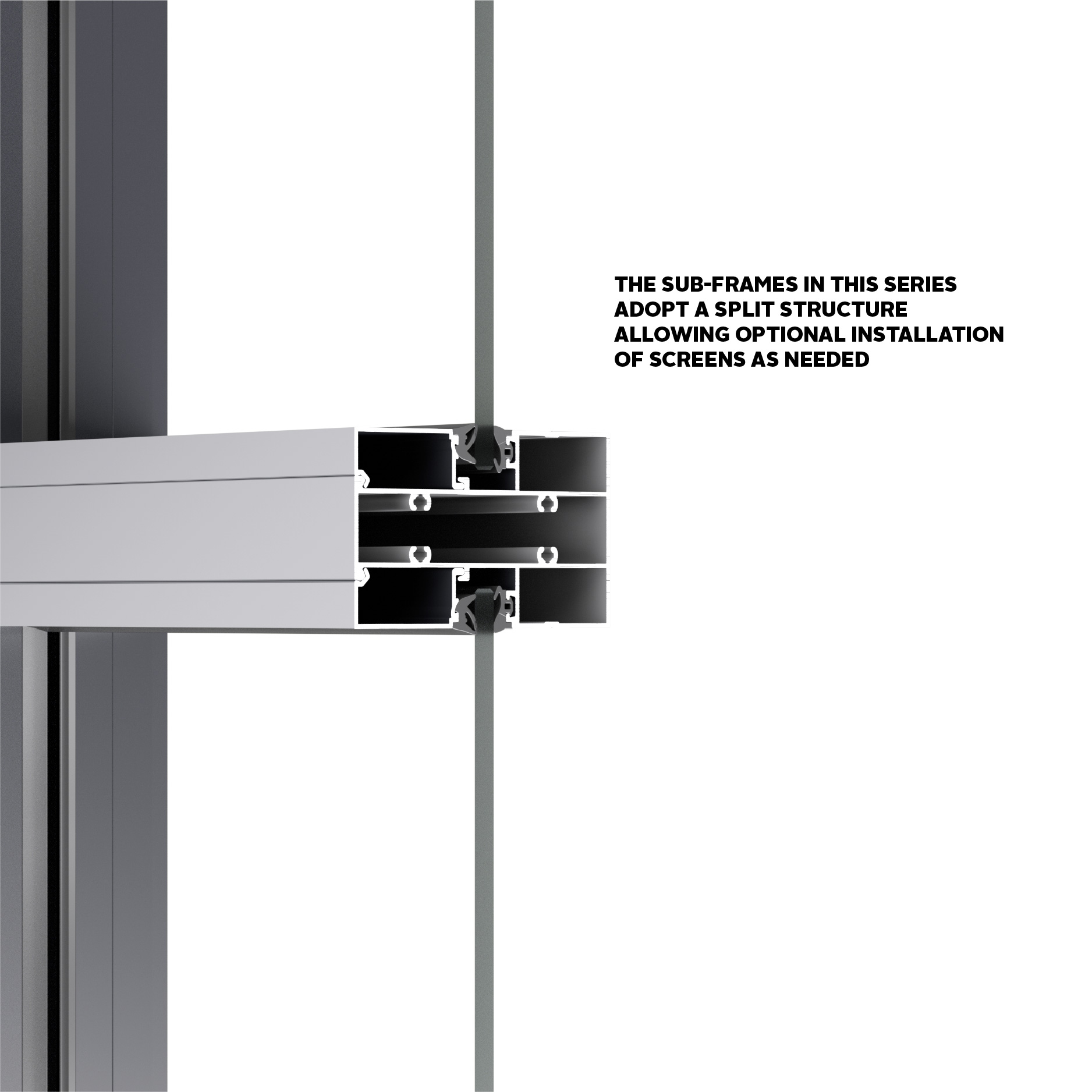

Optional configurations include: outward-opening glass sash paired with inward-opening screen sash; or top-hung glass sash.
The door sash adopts a multi-strip sealing design, and the upper and lower overlapping parts of the indoor and outdoor sashes are equipped with special sealing accessories to block strong winds, insect-proof, dust-proof and water-proof.

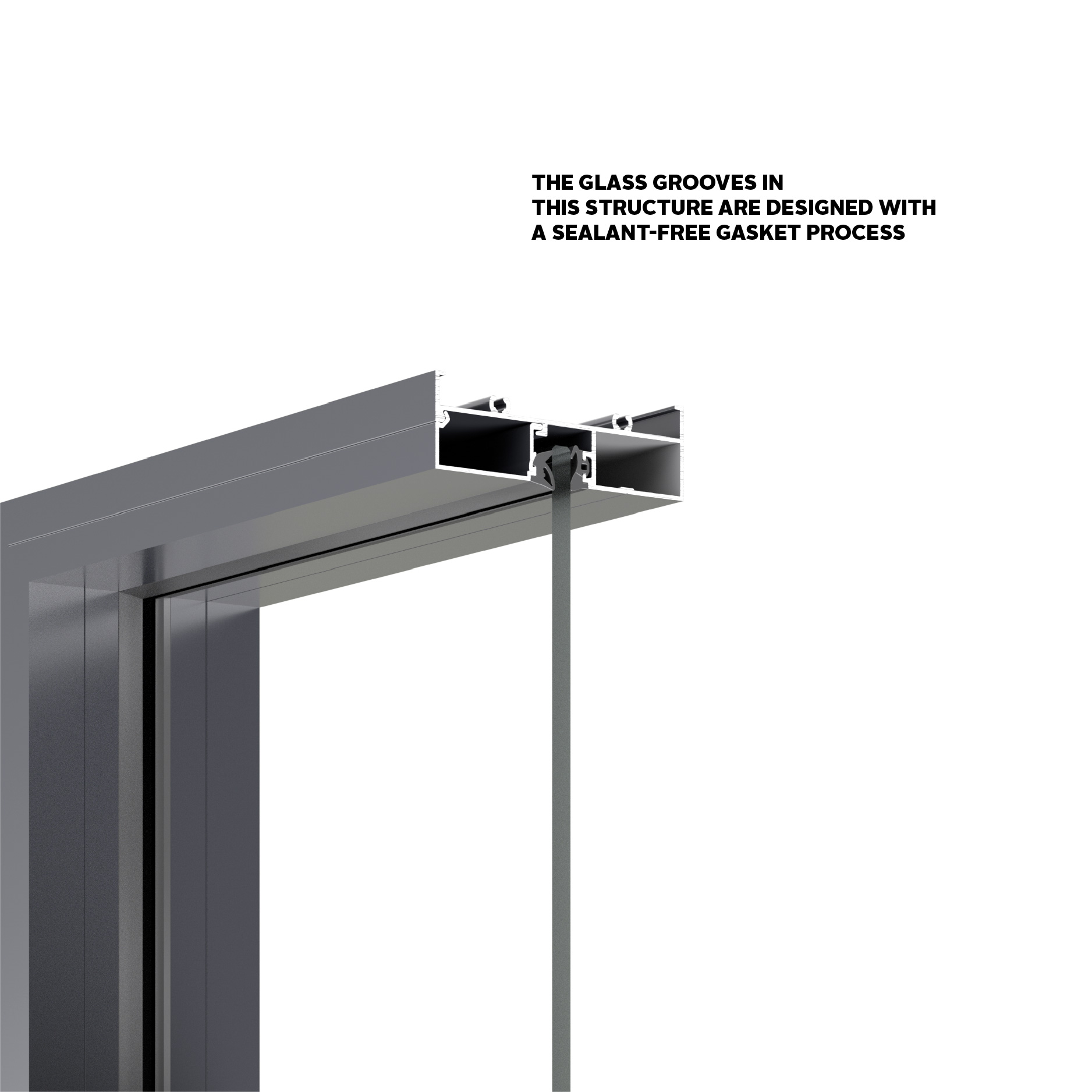

The glass of this series adopts the process of internal structural glue and external sealing or pressing rubber strips to increase the integrity between the glass and the sash.
The outer frame adopts high-energy drainage or floor drain drainage design to prevent rainwater backflow and whistling.
The frame and sash are flush, which is beautiful and generous.
The bevel pressure line design is unique, artistic, and the visual and fashionable structure increases the anti-deformation ability.
Parameters
ltem Number
HYPC80W
Type
Casement Window
Material
6063-T5 Original aluminum alloy
Profile Thickness
Sash Frame:1.5mm,Side Frame:1.1mm
Against the Wall Width
80mm
Insulation Strip Width
-
Glass
6mm
Finish Color(Standard Colors)
Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.
Standard Colors
HY-001 black
HY-002 coffee
Finish Color(Custom Colors)
Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.
Custom Colors
Blueberry Milkshake
HY-002 Gray
HY-077 khaki
HYDZ-030 Sandalwood
HYDZ-031 blue
HYDZ-039 silver white
HYDZ-062 white
HYDZ-064 dark blue
HYDZ-071 green
HYDZ-073 white gray
Glass
Type of glass
Our standard glazing is double glazed clear tempered glass, if you have special requirements we can provide single glazing or triple glazing options.
Double
Single
Triple
Glass functional options
We offer you a choice of glass types for energy efficiency, peace of mind, privacy, security and more, allowing you to balance the privacy and natural light you prefer while delivering superior quality and thermal performance.
HUMYA is a professional building energy-saving doors and windows, smart doors and windows, and decorative doors and windows system joint service customization experience provider.
