This series is a product built with systematic thinking by adopting simple and fashionable simple style.

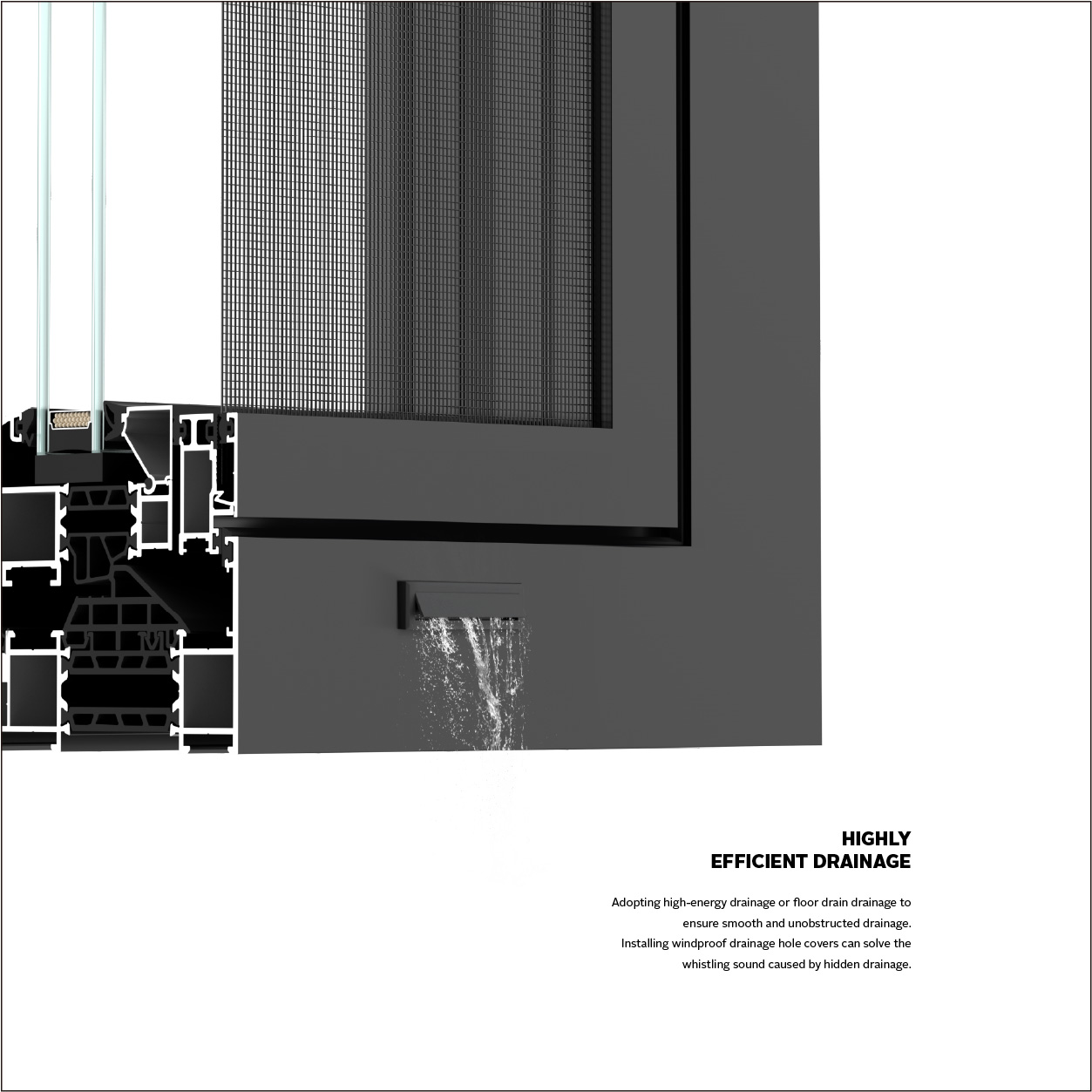

The outer frame has no hidden drainage structure, and the outer frame can be used in two ways: high-energy drainage or floor drain drainage. The whistling sound produced by hidden drainage can be solved by installing the windproof drainage hole cover.

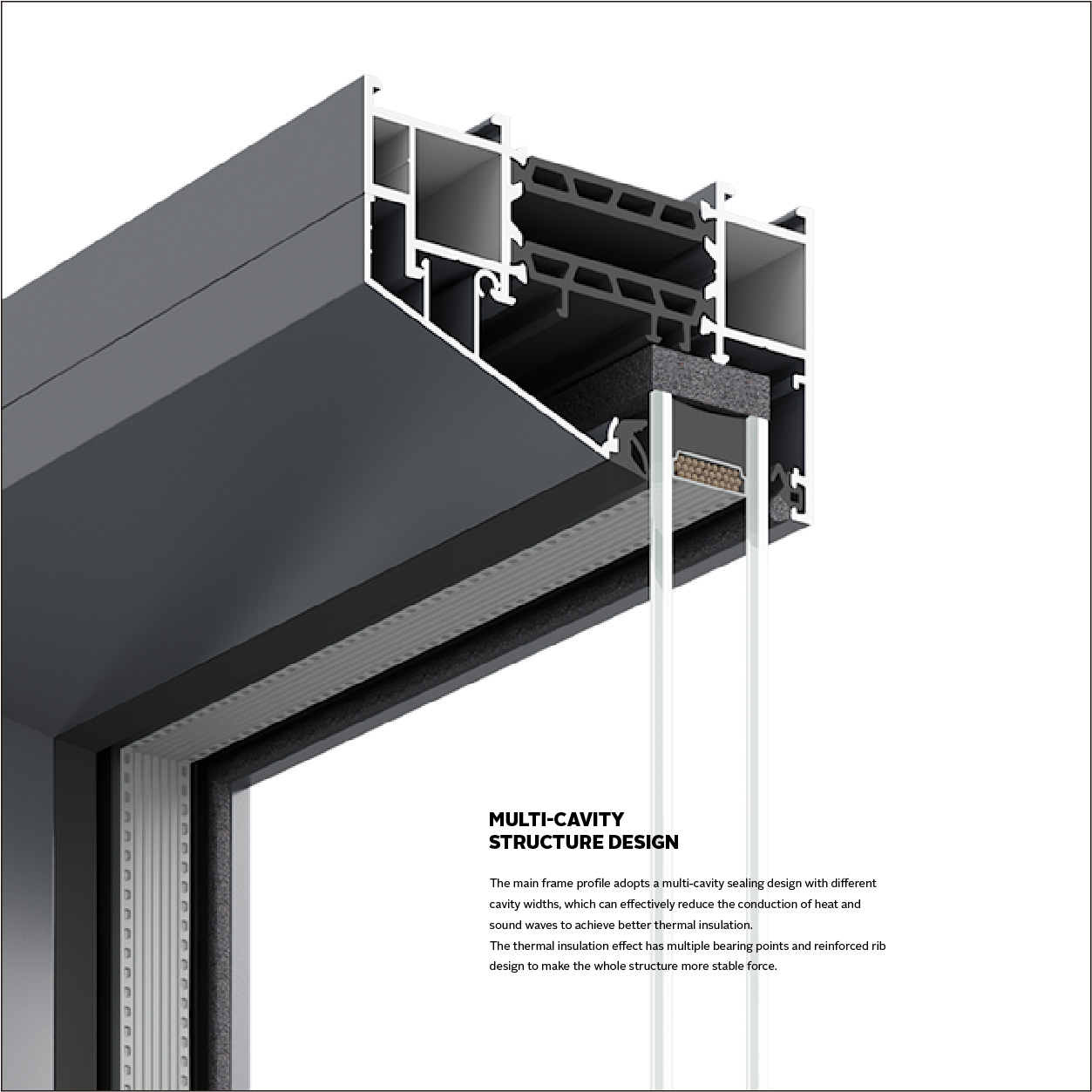

No conversion frame design, the heat insulation strip adopts 35.3mm extra wide multi-cavity heat insulation strip, and the insulation strip is located in the same vertical line.

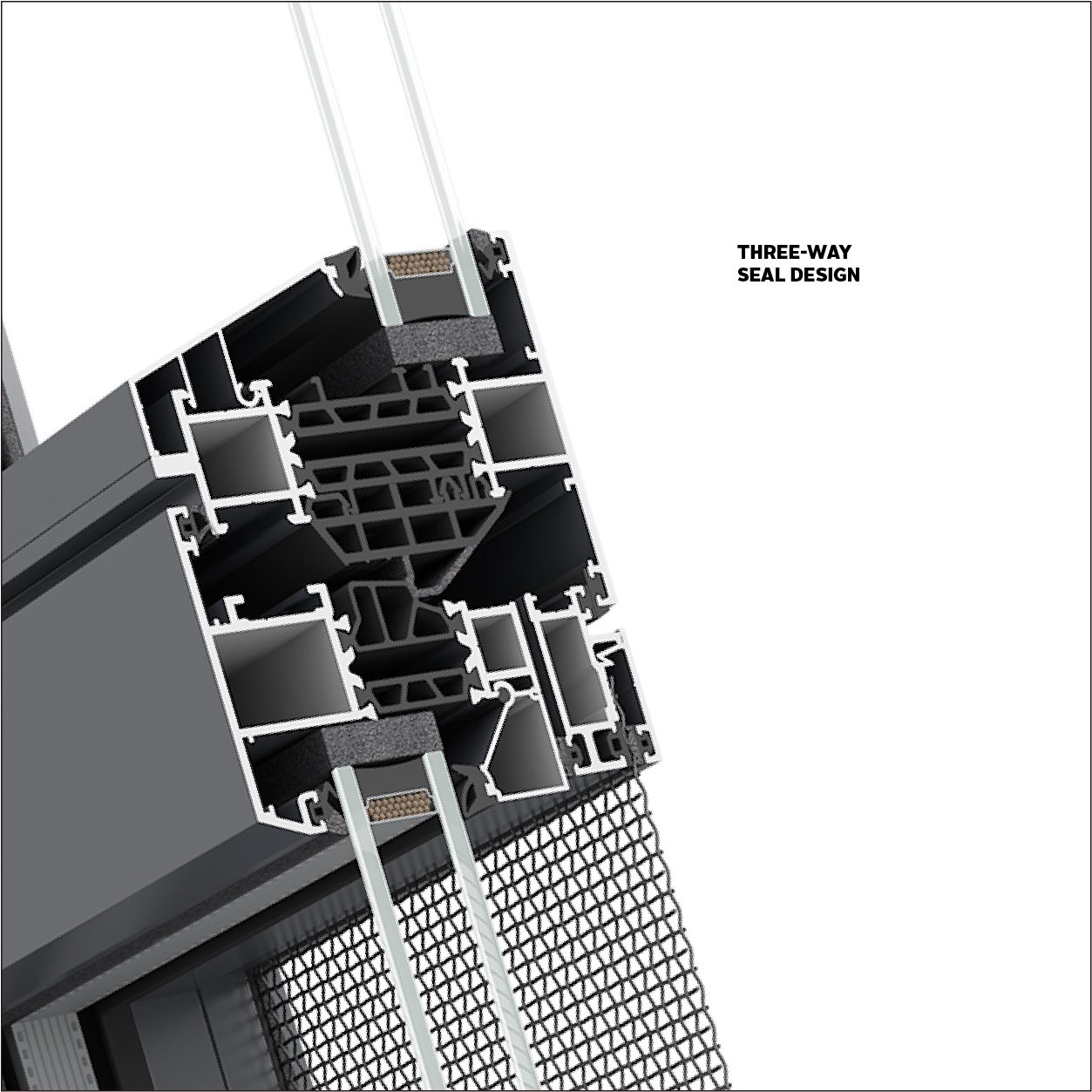

Three sealing structure is adopted at the glass sash. The glass adopts gluing-free gluing process (EPDM inside the glass, EPDM foam composite soft and hard co-extruded strip outside the glass), which greatly improves the extruded amount of strip outside the glass.

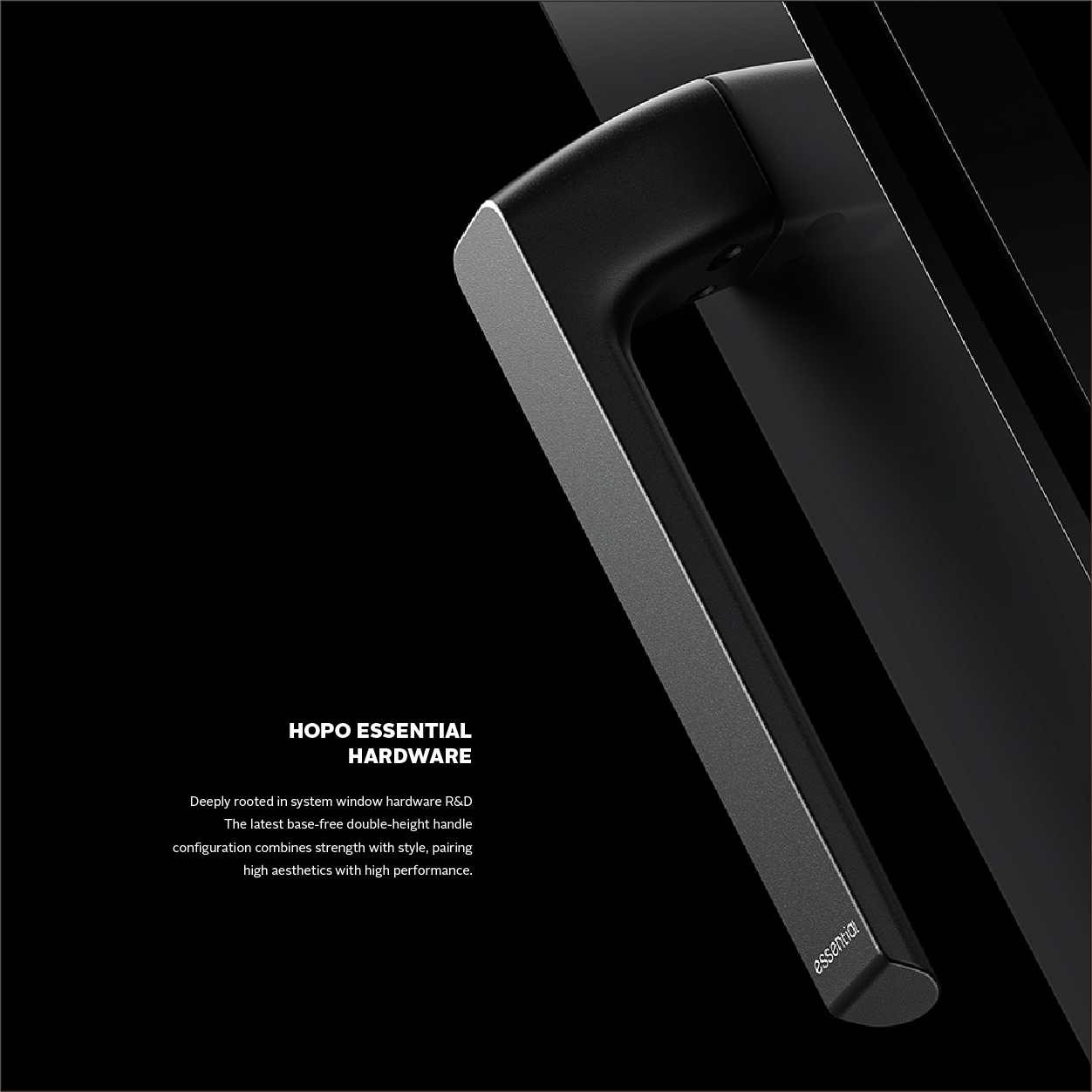

Inward opening window screen adopts a special quick-release hinge and two-point lock.

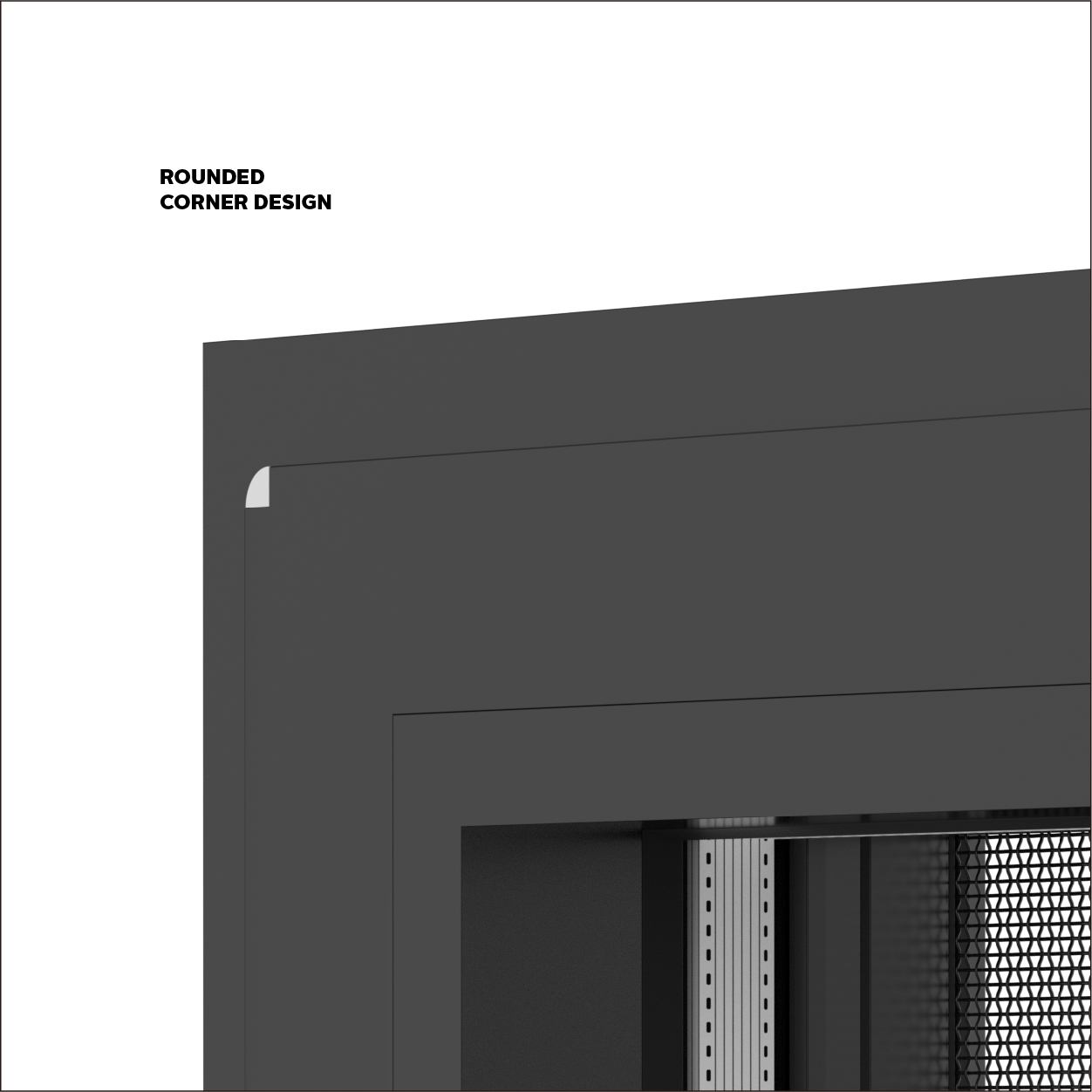

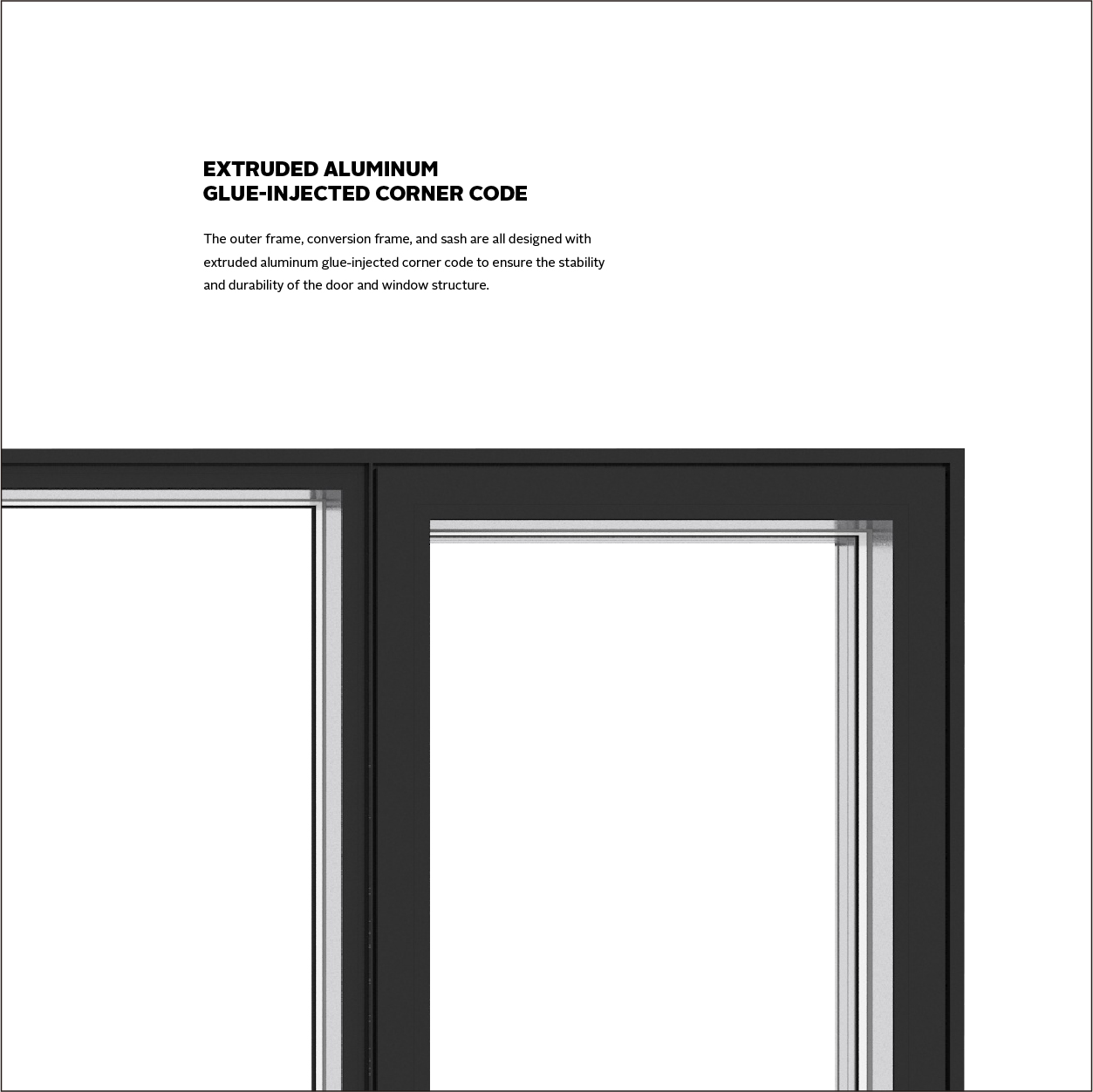

The outer frame, conversion frame and sash are all designed with extruded aluminum gluing corner code.
The solid glass pressure line is beveled edge pressure line design.
Parameters
ltem Number
HYGP98A
Type
Tilt and turn
Material
6063-T5 Original aluminum alloy
Profile Thickness
1.8mm
Against the Wall Width
98mm
Insulation Strip Width
45.3mm
Glass
5+19A+5 or 5+12A+5+12A+5 Optional double tempered glass or triple tempered glass
Finish Color(Standard Colors)
Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.
Standard Colors
HY-001 black

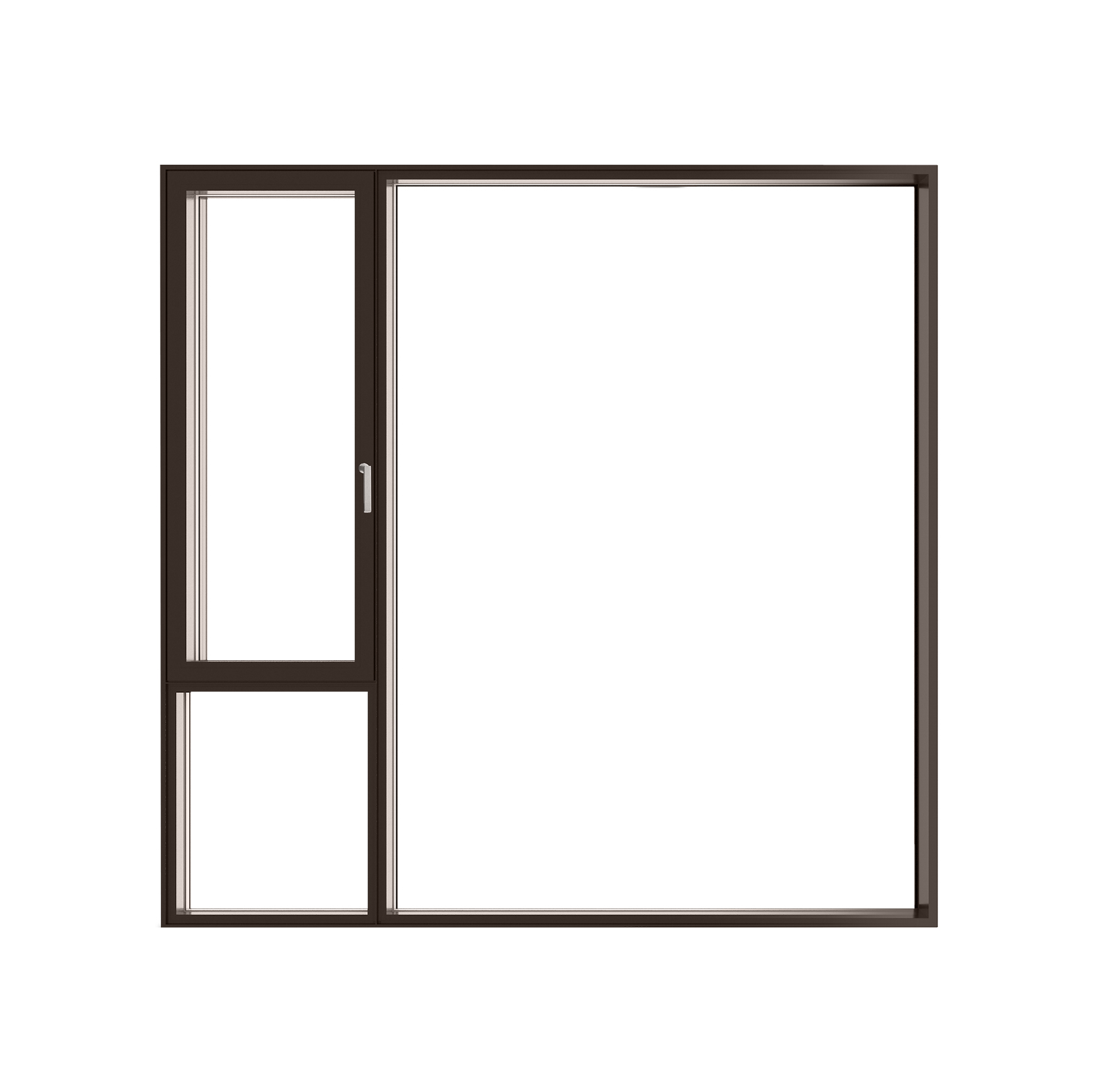

HY-002 coffee
Finish Color(Custom Colors)
Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.
Custom Colors
Blueberry Milkshake
HY-002 Gray
HY-077 khaki
HYDZ-030 Sandalwood
HYDZ-031 blue

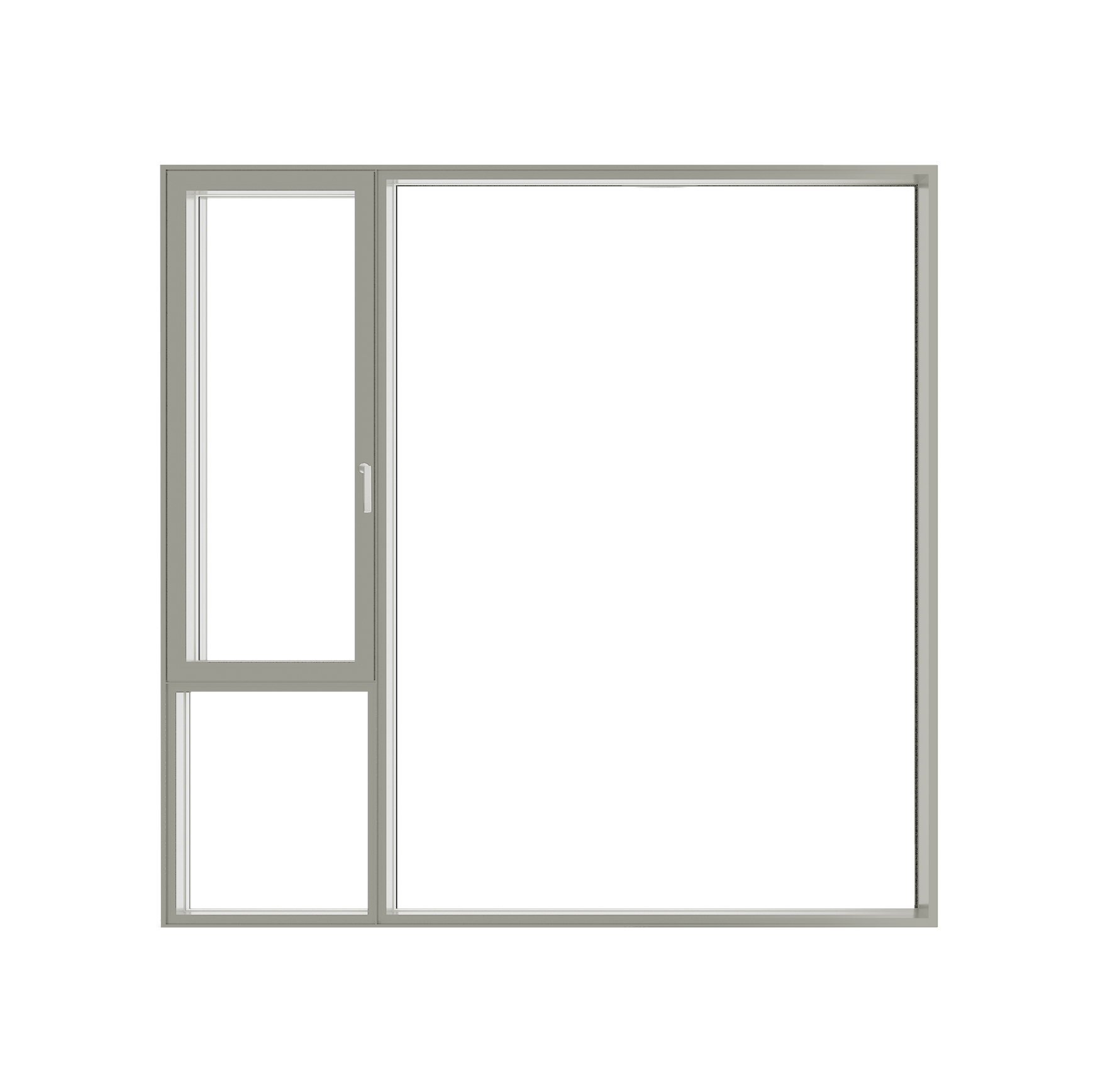

HYDZ-039 silver white
HYDZ-062 white
HYDZ-064 dark blue

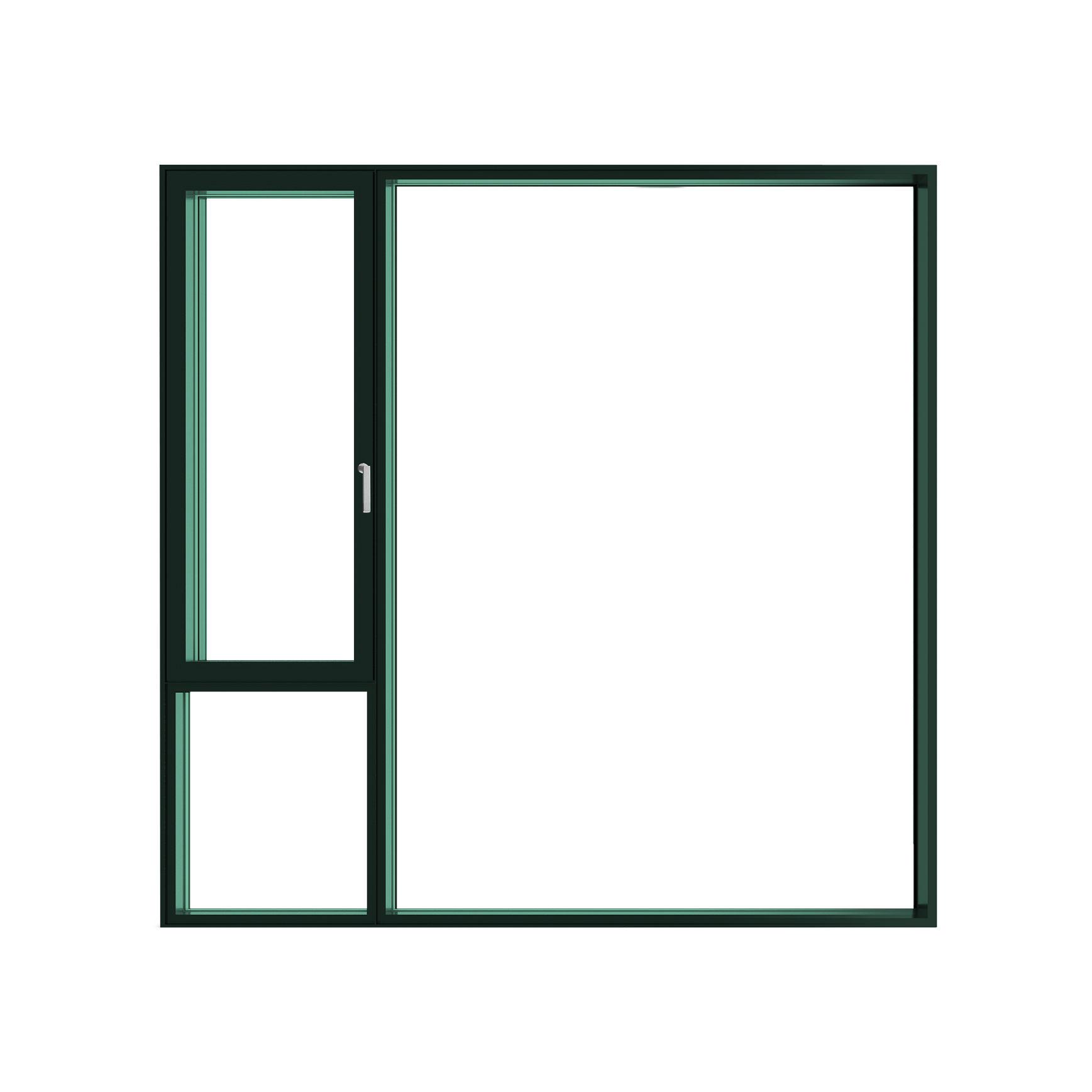

HYDZ-071 green
HYDZ-073 white gray
Glass
Type of glass
Our standard glazing is double glazed clear tempered glass, if you have special requirements we can provide single glazing or triple glazing options.
Double
Single
Triple
Glass functional options
We offer you a choice of glass types for energy efficiency, peace of mind, privacy, security and more, allowing you to balance the privacy and natural light you prefer while delivering superior quality and thermal performance.
HUMYA is a professional building energy-saving doors and windows, smart doors and windows, and decorative doors and windows system joint service customization experience provider.
