HYGT125C Series Six-track Heat-insulating Sliding Window

The aesthetics of space lies in the strict control of quality and details.

HUMYA GT125C six-track sliding window adopts a simple and fashionable design style.

Products are created with systematic thinking, exquisite craftsmanship and strict quality control. Focus on creating system doors and windows that meet the style of modern homes.

SHARE AS

REQUEST A QUOTE

CHECK OUT MORE ON YOUTUBE

Features

This series of narrow-sash heat-insulating sliding windows adopts a simple and fashionable style and is built with systematic thinking.

This series can be opened in two-sash sliding, four-sash middle-opening sliding and other forms.

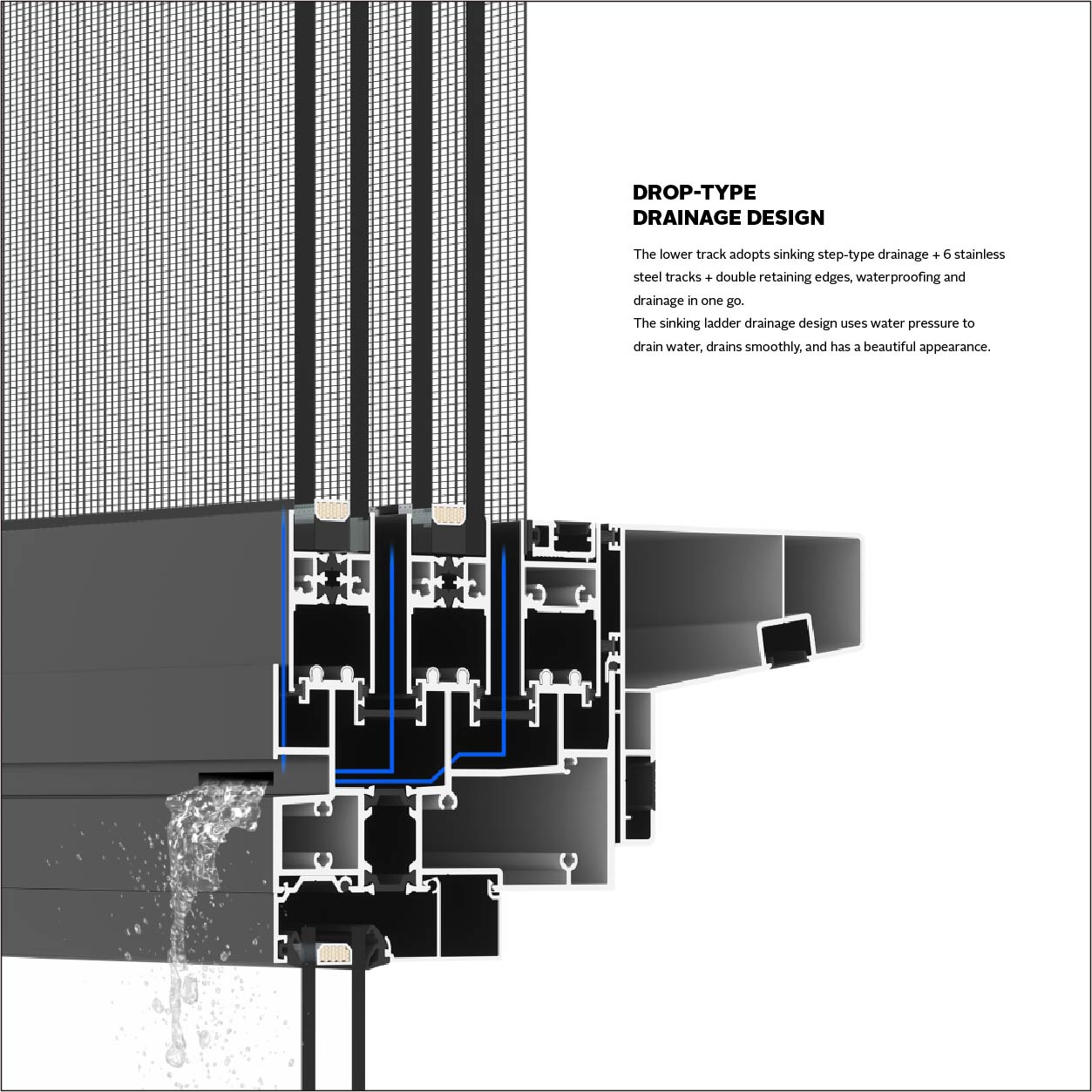

The lower track can be made into a sunken drainage system.

The outer frame is spliced with 45-degree angle code, no waterproof end pad is required. The glass sash is spliced with 90-degree screws, and the glass is caulked with internal glue. The flat and hook sections need to put the inner sash into the outer frame before installation to ensure that the sash is not easy to fall off.

The assembly form of the sash and frame is: frame-wrapped sash structure, the indoor side of the top outer frame is made into a split retaining edge, which facilitates the installation of the sash while ensuring the narrow edge effect of the outer frame.

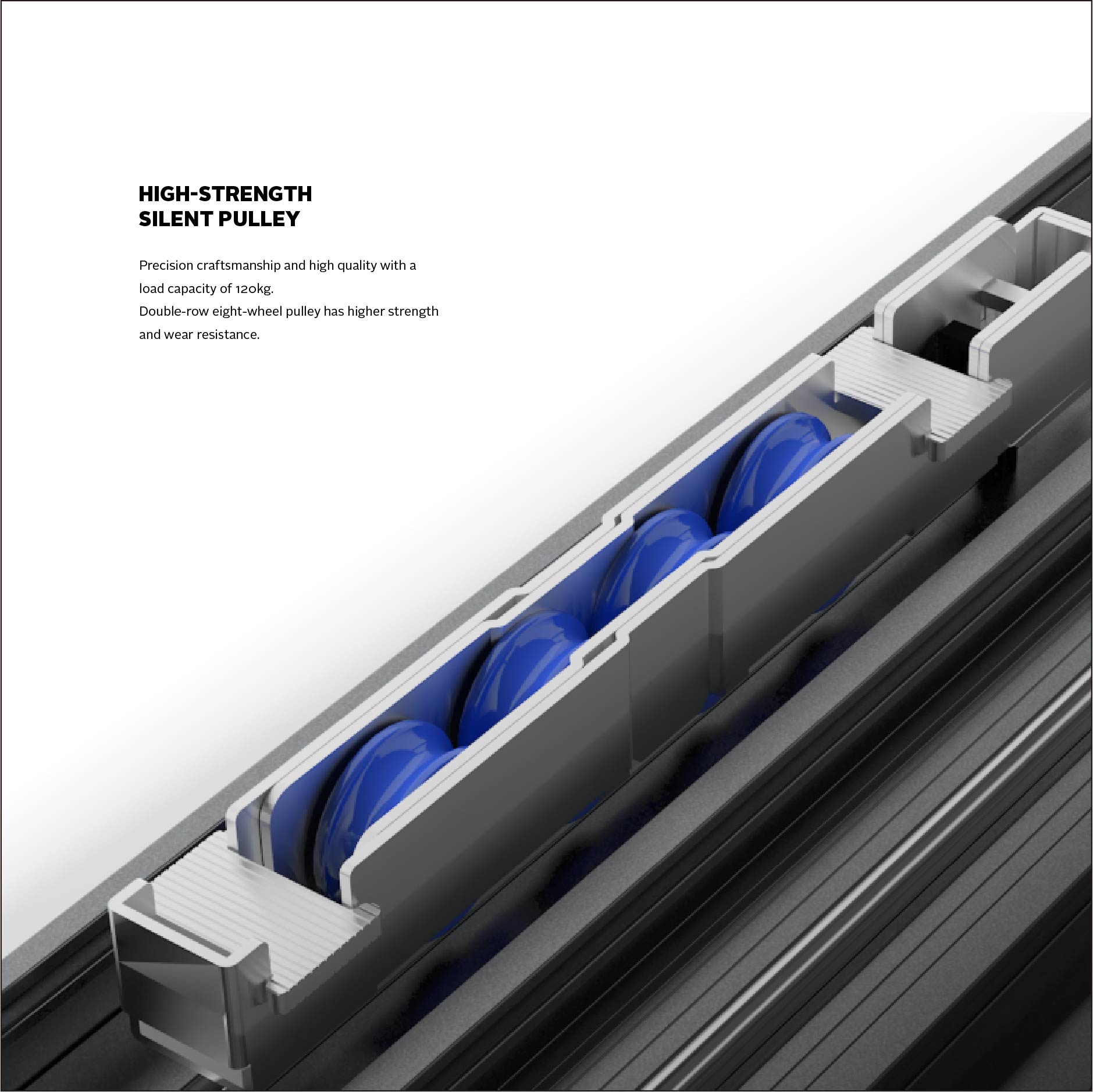

The lower track adopts a double-row ground wheel structure.

The angle-grouping flat steel sheets used in this system are all 304 stainless steel glue-injected steel sheets.

This series of profile structures adopts customized side-mounted concealed world locks.

Parameters

ltem Number	HYGT125C
Type	Sliding Window
Material	6063-T5 Original aluminum alloy
Profile Thickness	Edge seal/ track/ sash material 1.8mm, lower track 2.2mm
Against the Wall Width	125mm
Insulation Strip Width	20mm for outer frame、10mm for sash
Glass	5+19A+5 Double tempered glass

Finish Color(Standard Colors)

Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.

Standard Colors

HY-001 black

HY-002 coffee

Finish Color(Custom Colors)

Cutting-edge popular colors and excellent surface treatment technology empower. Good quality starts from the first surface.

Custom Colors

Blueberry Milkshake

HY-002 Gray

HY-077 khaki

HYDZ-030 Sandalwood

HYDZ-031 blue

HYDZ-039 silver white

HYDZ-062 white

HYDZ-064 dark blue

HYDZ-071 green

HYDZ-073 white gray

Glass

Type of glass

Our standard glazing is double glazed clear tempered glass, if you have special requirements we can provide single glazing or triple glazing options.

Double

Single

Triple

Glass functional options

We offer you a choice of glass types for energy efficiency, peace of mind, privacy, security and more, allowing you to balance the privacy and natural light you prefer while delivering superior quality and thermal performance.
